| ENGINE TYPE | Liquid-cooled, two-stroke, single cylinder |
| Displacement | 124 cm3 |
| Bore X Stroke | 2.1x2.1 in OR 53 mm |
| Compression | 13.6:1 |
| Cooling System | Liquid Cooled |
| Induction | 28mm DellOrto carburetor |
| Max Power | 30/8800 KW(hp)/RPM |
| Max Torque | 14/10000 lb-ft/RPM OR 19/10000 Nm/RPM |
| TRANSMISSION SPECS | |
| Gear Box | 6-speed, manual |
| Clutch | Wet multi-disc, manual |
| Primary Drive | Gear |
| Final Drive | Chain |
| CHASSIS SPECS | |
| Frame | Steel |
| Front Suspension | 38mm upside-down fork |
| Rear Suspension | Adjustable monoshock with APS |
| Front Brakes | Single 320mm disc, 2-piston caliper |
| Rear Brakes | Single 240mm disc, 1-piston caliper |
| DIMENSION SPECS | |
| Overall Length | — |
| Seat Height | 31.5 in OR 800 mm |
| Weight | 309 lbs OR 140 kg |
| TYRES SPECS | |
| Front Tyre | 100/80-17 inch |
| Rear Tyre | 130/70-17 inch |
| FUEL SYSTEM | |
| Fuel System | 34mm DellOrto carburetor |
| Fuel Capacity | 3.8 gallons OR 14.5 L |
| Fuel Consumption | 5.9 L / 100kms or 17 km /L |

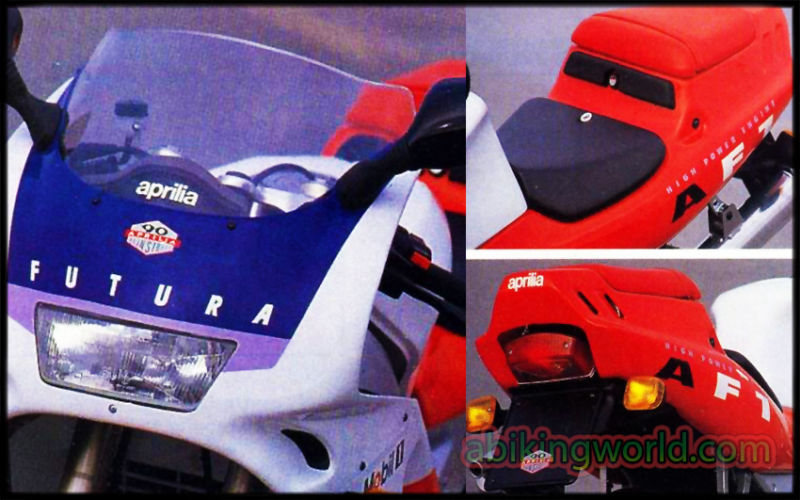

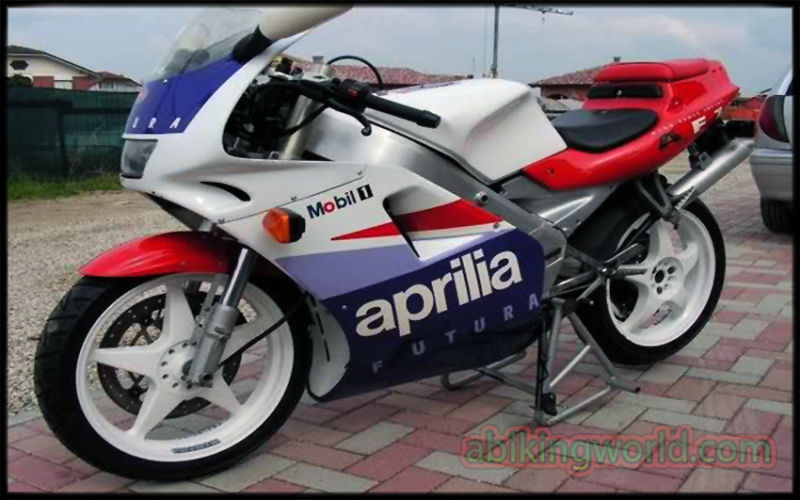

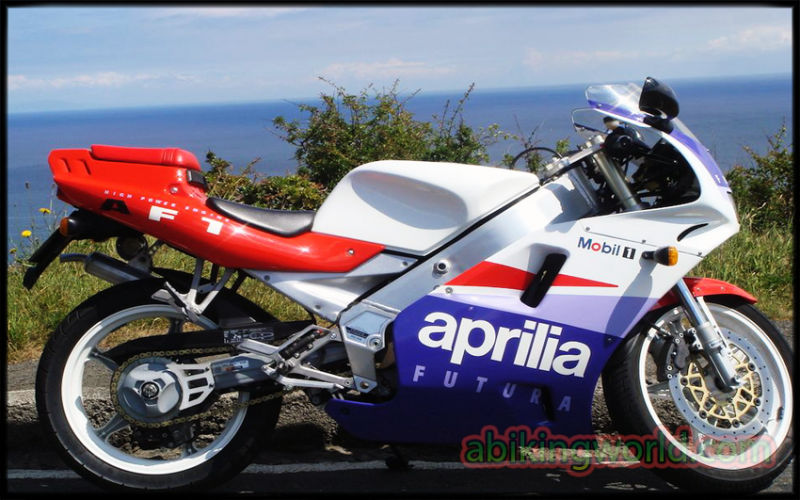

The 1990 MY Aprilia AF1 Futura is an entry-level sportbike. It is suitable for the young adrenaline junkie among Aprilia fans. It boasts standard features such as an inverted front fork, an adjustable monoshock as a rear suspension, a Brembo braking system with front and rear disc brakes, an aerodynamic full-fairing, and a dual seat. In the tech/engine department, it sports a liquid-cooled, two-stroke, 124cc, single cylinder engine paired to a six-speed manual transmission. It can produce a claimed 32 horsepower and 22 Nm of torque.
