| ENGINE TYPE | Two stroke, single cylinder, light alloy and barrel with GILNISIL surface coating |
| Displacement | 124.7 cc / 7.6 cu in |
| Bore X Stroke | 54 x 54.5 mm |
| Compression | 13.6:1 |
| Cooling System | Liquid Cooled |
| Induction | Dell'Orto Ø 34mm flat slide carburetor |
| Max Power | 22.3 kW / 30 hp @ 8800 rpm |
| Max Torque | 19.6 Nm / 2.0 kgf-m / 14.5 lb-ft @ 10000 rpm |
| TRANSMISSION SPECS | |
| Gear Box | 6-speed, manual |
| Clutch | Wet multi-disc, manual |
| Primary Drive | Gear |
| Final Drive | Chain |
| CHASSIS SPECS | |
| Frame | Steel |
| Front Suspension | 38mm upside-down fork |
| Rear Suspension | Progressive System with hydraulic single shock-absorber, 1120mm wheel travel |
| Front Brakes | Single 320mm disc, 4-piston caliper |
| Rear Brakes | Single 240mm disc, 2-piston caliper |
| DIMENSION SPECS | |
| Overall Length | — |
| Seat Height | 31.5 in OR 800 mm |
| Weight | 114 kg / 251 lbs |
| TYRES SPECS | |
| Front Tyre | 100/80-17 inch |
| Rear Tyre | 140/70-17 inch |
| FUEL SYSTEM | |
| Fuel System | 34mm DellOrto carburetor |
| Fuel Capacity | 3.8 gallons OR 14.5 L |
| Fuel Consumption | 5.9 L / 100kms or 17 km /L |

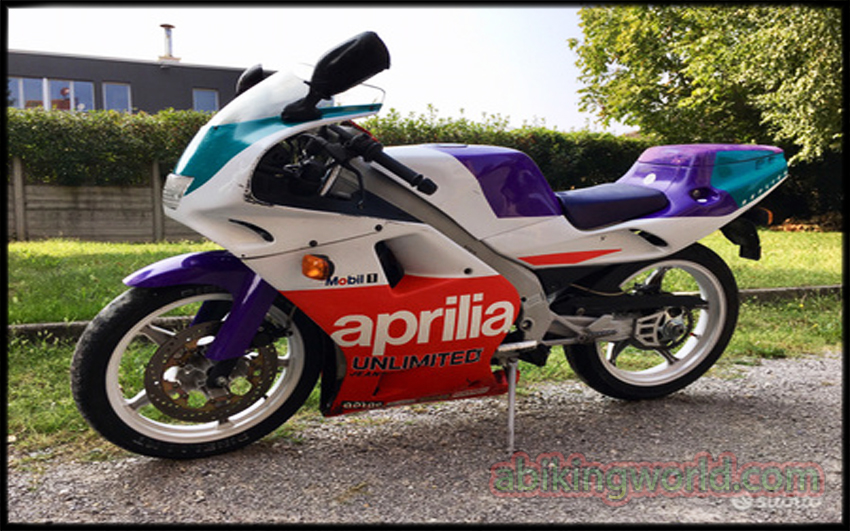

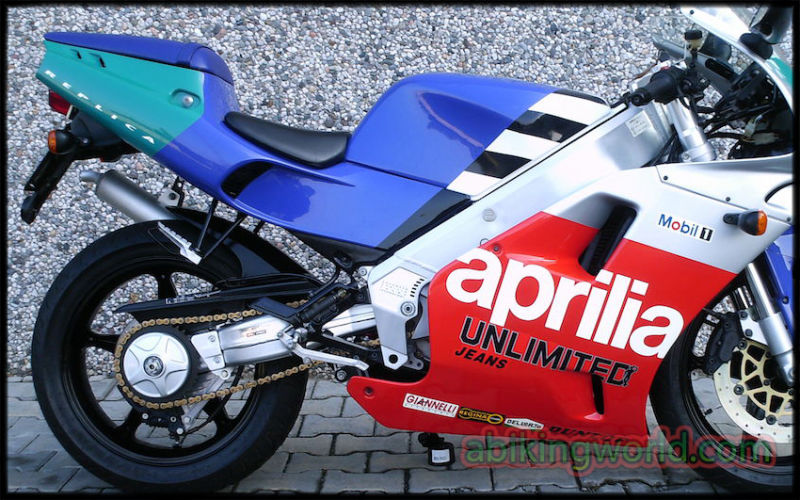

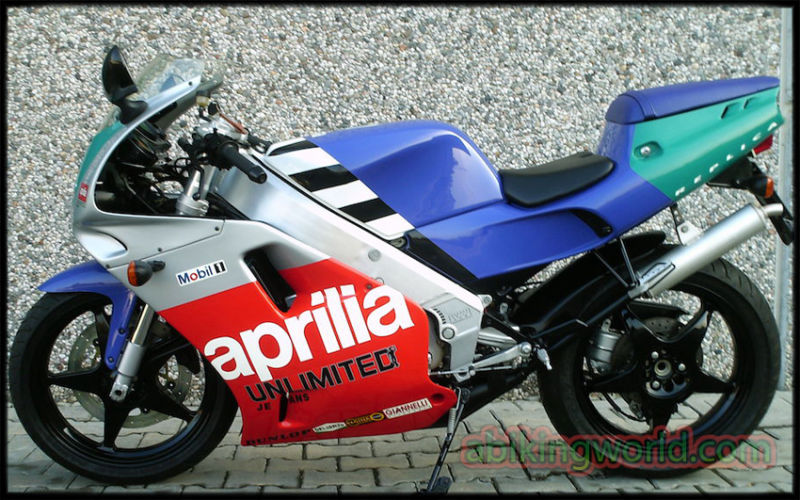

Presented and marketed in the early months of 1991, the new Futura '91 has only the denomination in common with the previous one. From a technical point of view, the AF1 Futura '91 adopts substantial modifications that are not limited to the superstructures - only apparently similar to the Futura '90 - but which also affect the chassis that receives a new fork and the mechanics that sees the adoption of a new boiler with two additional exhaust boosters. The price in 1991 was 6,380,000 lire and initially, the Futura '91 was offered only in a color with typical Aprilia shades and combinations, purple / silver / black with black rims, black pilot seat and silver passenger seat. A set of colors that characterizes the whole Aprilia '91 production. Since May 1991, an unprecedented Reggiani Replica version has also been marketed: it was in fact since 1989 that Aprilia had not sported a livery inspired by its racing cars for its road and as for the previous Replica, the Futura Reggiani Replica also adopts a color that is witness to the inspiration of the good Aprilia designers. The Futura '91 therefore once again proves to be a competitive bike and at the end of the season won the Sport Production championship in the over 21 category with Massimiliano Gervasio.
