APRILIA AF1 125 PROJECT 108 SPORT SPECIFICATIONS
APRILIA AF1 125 PROJECT 108 SPORT SPECIFICATIONS
Spec sheet
ENGINE TYPEliquid-cooled, two-stroke, single cylinder
Displacement124 cm3
Bore X Stroke2.12x2.12 in OR 54 mm
Compression15.1:1
Cooling SystemLiquid cooled
Induction28mm DellOrto carburetor
Max Power25/10000 KW(hp)/RPM
Max Torque13/8000 lb-ft/RPM OR 18/8000 Nm/RPM
TRANSMISSION SPECS
Gear Box6-speed, manual
ClutchWet multi-disc, manual
Primary DriveGear
Final DriveChain
CHASSIS SPECS
FrameSteel
Front SuspensionTelescopic Fork, 4 way anti drive adjustable
Rear SuspensionSebac adjustable monoshock
Front BrakesSingle 60mm disc, 4-piston caliper
Rear BrakesSingle 240mm disc, 2-piston caliper
DIMENSION SPECS
Overall Length—
Seat Height31.5 in OR 800 mm
Weight264.6 lbs OR 120 kg
TYRES SPECS
Front Tyre100/80-17 inch
Rear Tyre130/70-17 inch
FUEL SYSTEM
Fuel System28mm DellOrto carburetor
Fuel Capacity5.3 gallons OR 20.1 L
Fuel Consumption4.4 L / 100 km 22.7 km /L
Aprilia file

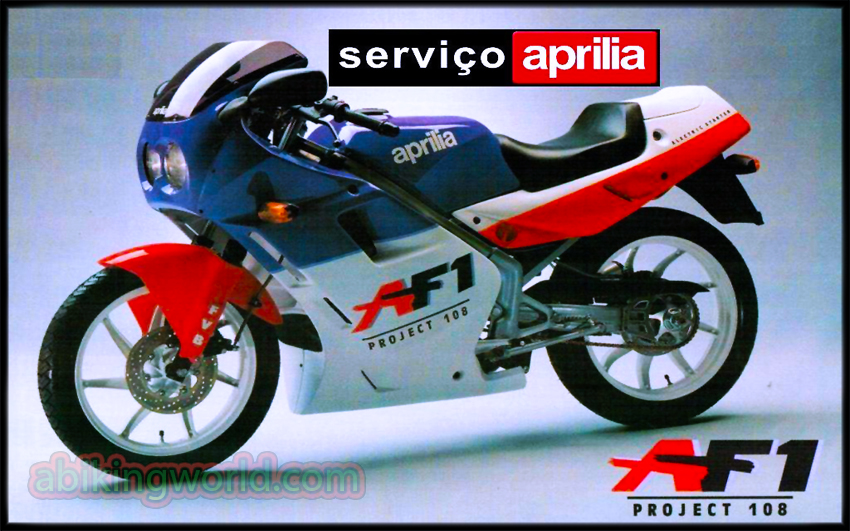

The Aprilia AF1 125 Project 108 Sport was a liquid-cooled, two-stroke, single cylinder Sport Bike motorcycle produced by Aprilia in 1988. With a maximum torque OF 13.28 ft/lbs (18.0 Nm) @ 8000 RPM. Its claimed horsepower was 24.94 HP (18.6 KW) @ 10000 RPM. It came with a 100/80-17 front tire and a 130/70-17 rear tire. Stopping was achieved via single 60mm disc, 4-piston caliper in the front and a single 240mm disc, 2-piston caliper in the rear. The front suspension was a telescopic fork while the rear was equipped with a adjustable monoshock. The 1988 MY Aprilia AF1 125 Project 108 Sport is arguably the fastest production machine in its class, boasting a maximum power output of 25 horsepower and 18 Nm of torque out of its liquid-cooled, two-stroke, 123cc, single cylinder engine, as well as a race-derived engine mapping and suspension settings. This machine is best suited for entry-level riders who want a machine capable of delivering an adrenaline rush with every twist of the throttle.
