| ENGINE TYPE | Liquid-cooled, two-stroke, single cylinder |
| Displacement | 124 cm3 |
| Bore X Stroke | 2.12x2.12 in OR 54 mm X 54.5mm |
| Compression | 15.1:1 |
| Cooling System | Liquid Cooled |
| Induction | 28mm DellOrto carburetor |
| Max Power | 28/10500 KW(hp)/RPM |
| Max Torque | 13/10000 lb-ft/RPM OR 18/10000 Nm/RPM |
| TRANSMISSION SPECS | |
| Gear Box | 6-speed, manual |
| Clutch | Wet multi-disc, manual |
| Primary Drive | Gear |
| Final Drive | Chain |
| CHASSIS SPECS | |
| Frame | Steel |
| Front Suspension | 38mm upside-down fork |
| Rear Suspension | Adjustable monoshock with APS |
| Front Brakes | Single 320mm disc, 4-piston caliper |
| Rear Brakes | Single 240mm disc, 2-piston caliper |
| DIMENSION SPECS | |
| Overall Length | — |
| Seat Height | 31.5 in OR 800 mm |
| Weight | 131 Kgs / 289 lbs |
| TYRES SPECS | |
| Front Tyre | 100/80-17 inch |
| Rear Tyre | 130/70-17 inch |
| FUEL SYSTEM | |
| Fuel System | 28mm DellOrto carburetor |
| Fuel Capacity | 5.3 gallons OR 20.1 L |
| Fuel Consumption | 4.1 L / 100kms or 24.4km /L |

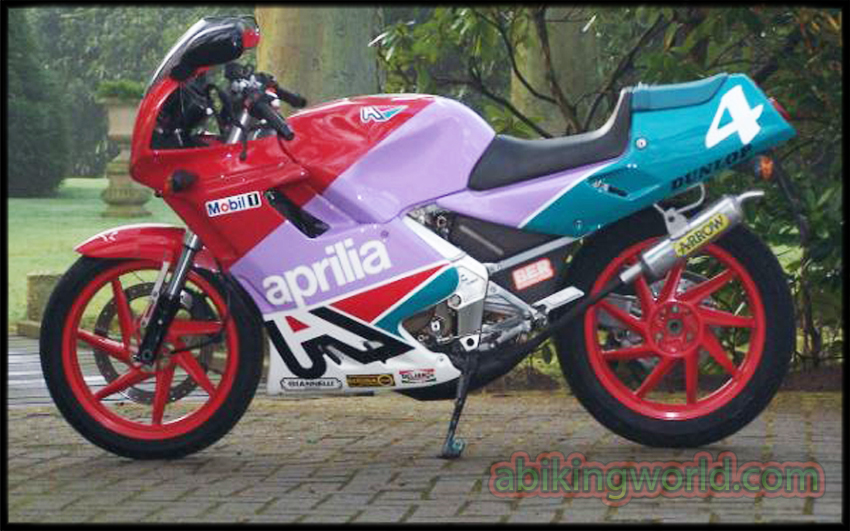

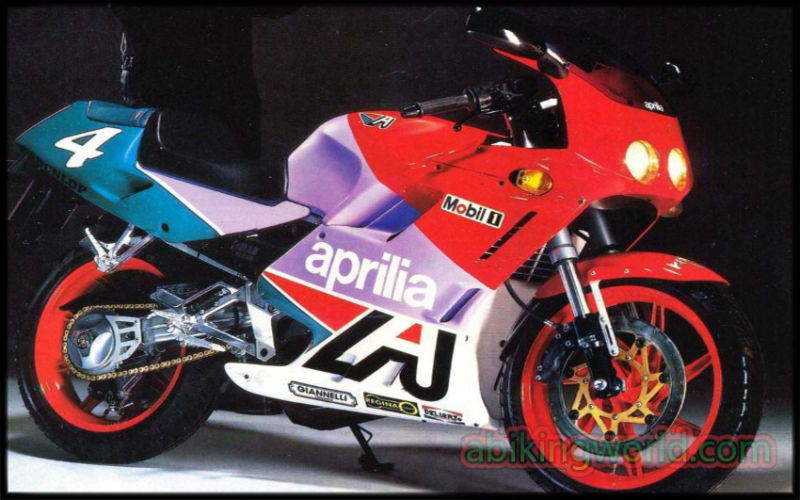

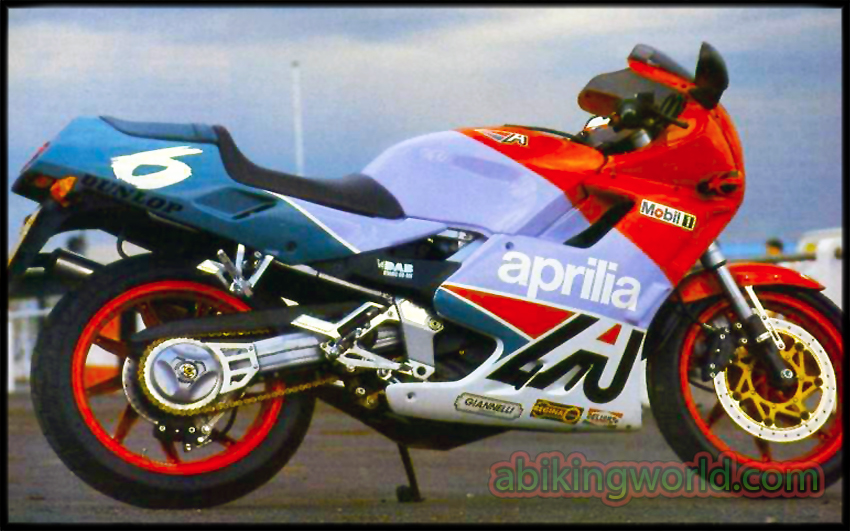

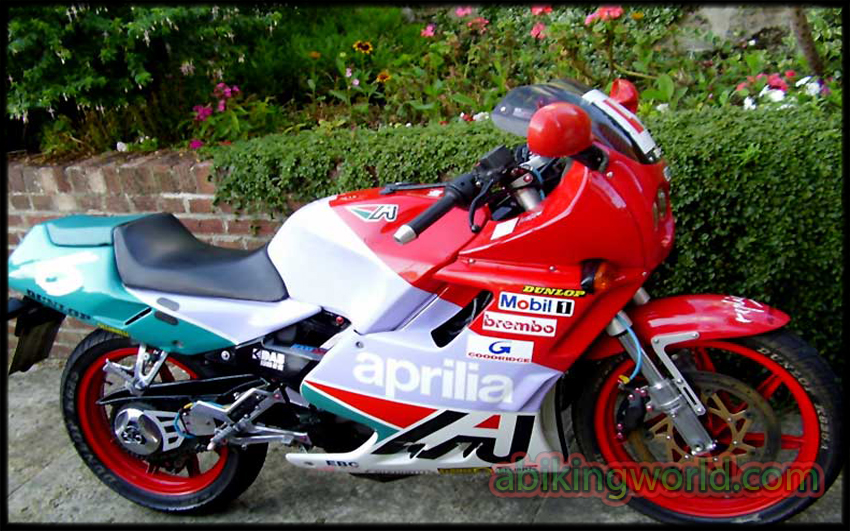

The 1989 MY Aprilia AF1 125 Sintesi Replica is a limited edition mean machine. It was copied after the official one the House of Noale's racing department uses. It sports a liquid-cooled, two-stroke, 124cc, single cylinder engine paired to a six-speed manual transmission. It can produce a claimed 28 horsepower and 18 Nm of torque. It also boasts an inverted-front fork, an adjustable monoshock with Aprilia Progressive System (APS) in the rear, a Brembo braking system and an aerodynamic full-fairing.
