| ENGINE TYPE | Four stroke, single cylinder, SOHC, 4 valves per cylinder |
| Displacement | 199 cm3 |
| Bore X Stroke | 72 x 48.6 mm |
| Compression | 11.5:1 |
| Cooling System | Liquid Cooled |
| Induction | Keihin CVK 7C Ø 30 mm or Walbro WVF 7D Ø29 mm |
| Max Power | 10 kW / 13.5 hp @ 8000 rpm |
| Max Torque | 11 Nm / 1.1 kgf-m / 8.1 lb-ft @ 7250 rpm |
| TRANSMISSION SPECS | |
| Transmission | Automatic |
| Clutch | Centrifugal |
| Primary Drive | - |
| Final Drive | Belt |
| CHASSIS SPECS | |
| Frame | SteeSingle beam with double stacked cradlel |
| Front Suspension | Hydraulic forks, Ø 35 mm |
| Rear Suspension | Single hydraulic shock, adjustable preload |
| Front Brakes | Single Ø 240 mm disc, with hydraulic transmission |
| Rear Brakes | Single Ø 190mm disc, with hydraulic transmission, combined with front |
| DIMENSION SPECS | |
| Overall Length | 82.7 in OR 2101 mm |
| Seat Height | 790 mm / 31.1 in |
| Weight | 353 lbs OR 160 kg |
| TYRES SPECS | |
| Front Tyre | 110/90-13 |
| Rear Tyre | 130/70-13 |
| FUEL SYSTEM | |
| Fuel System | 30mm Keihin CVK 7C carburetor |
| Fuel Capacity | 10.5 Litres / 2.8 US gal |
| Fuel Reserve | 1.3 Litres / 0,4 US gal |
| Starting / Ignition | Electric start / Electronic Magneti Marelli |

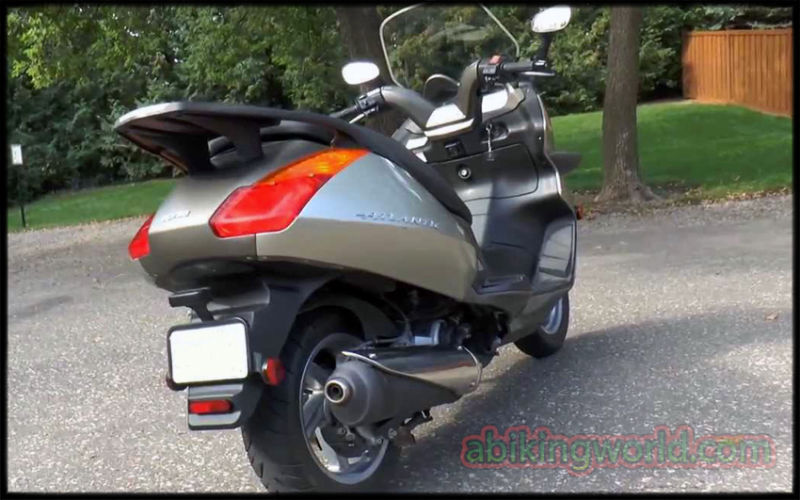

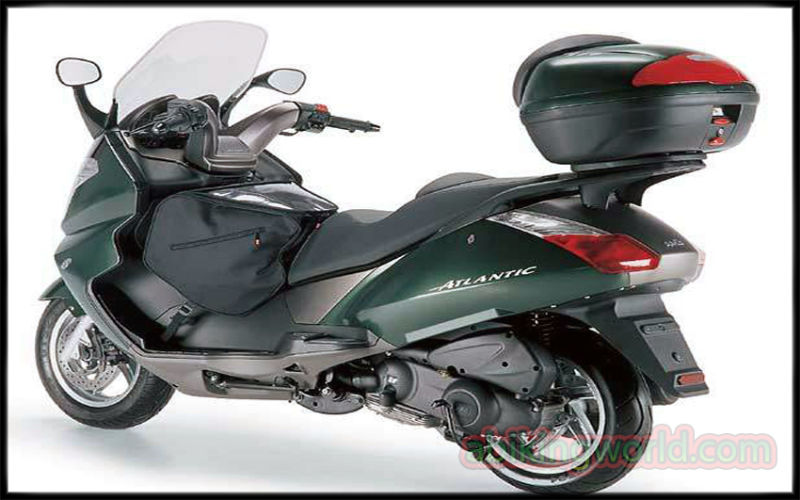

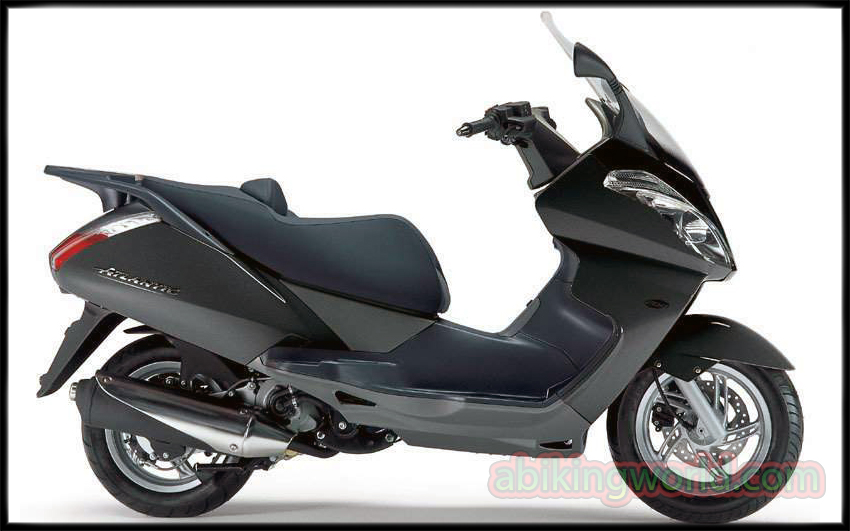

2008 - 2010 MODEL A valid alternative to immobility on four wheels, designed and produced to resolve your every work or leisure requirement. The Atlantic 200 is the answer to your need for value in movement. The Atlantic 200 is easy to ride and 100% reliable. Engine performance is generous, fluid and, in harmony with Euro 2 pollution abatement standards, combines maximum environmental friendliness with maximum savings in consumption. The high rigidity frame, large 13" wheels, suspension and integral braking system with front and rear disk brakes guarantee safety at levels typical of higher classes. The Atlantic 200 frees you from worry and surrounds you with attention.
