APRILIA ATLANTIC 200 2002 - 2007

The 2003 MY Aprilia Atlantic 200 sports a liquid-cooled, four-stroke, 198cc, single cylinder engine paired to a continuously variable transmission,…

APRILIA ATLANTIC 200 SPECIFICATIONS
APRILIA ATLANTIC 200 SPECIFICATIONS
Spec sheet
ENGINE TYPEliquid-cooled, four-stroke, single cylinder, SOHC, 4 valves
Displacement199 cm3
Bore X Stroke2.8x1.9 in OR 71 mm
Compression11.5:1
Cooling SystemLiquid Cooled
InductionDell'Orto PHBH AS Ø 26 mm carburetor
Max Power13/8000 KW(hp)/RPM
Max Torque8/7250 lb-ft/RPM OR 11/7250 Nm/RPM
TRANSMISSION SPECS
Gear BoxCVT
ClutchDry, automatic, centrifugal
Primary Drive-
Final DriveBelt
CHASSIS SPECS
FrameSteel
Front Suspension35mm telescopic fork
Rear SuspensionAdjustable monoshock
Front BrakesSingle 240mm disc, 3-piston caliper
Rear BrakesSingle 190mm disc, 2-piston caliper
DIMENSION SPECS
Overall Length82.7 in OR 2101 mm
Seat Height30.3 in OR 770 mm
Weight353 lbs OR 160 kg
TYRES SPECS
Front Tyre110/90-13
Rear Tyre130/70-13
FUEL SYSTEM
Fuel System30mm Keihin CVK 7C carburetor
Fuel Capacity2.6 gallons OR 9.8 L
Fuel Capacity10.5 L / 2.8 US Gal
StartingElectric start / Magneti Marelli

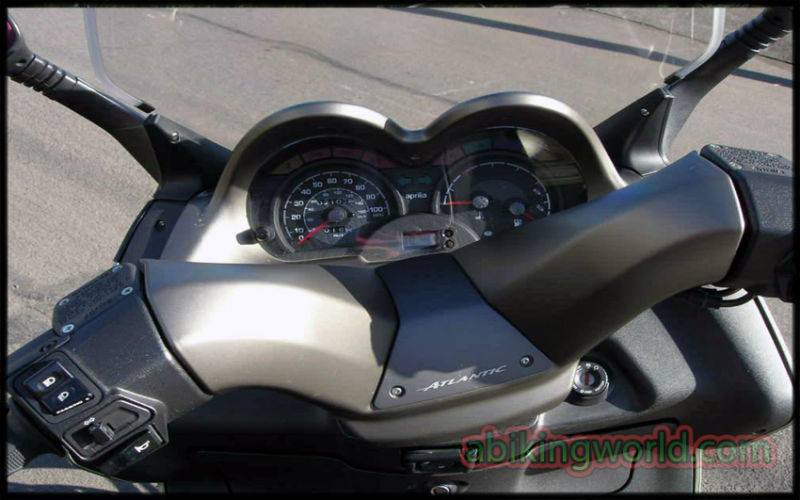

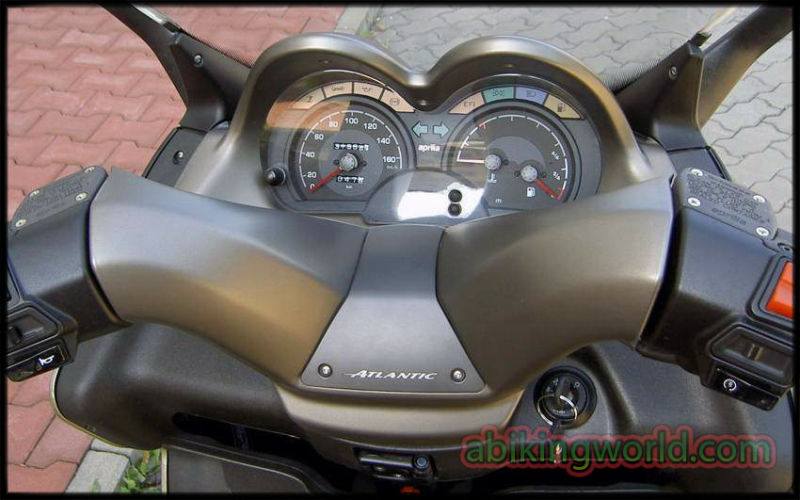

Photo gallery
aprilia ATLANTIC 200 specs aprilia ATLANTIC 200 specs aprilia ATLANTIC 200 specs aprilia ATLANTIC 200 specs
Aprilia file

2003 MODEL The 2003 MY Aprilia Atlantic 200 sports a liquid-cooled, four-stroke, 198cc, single cylinder engine paired to a continuously variable transmission, and can produce a claimed 13 horsepower and 11 Nm of torque. It comes standard with a windscreen, a dual seat with passenger grab rails, front and rear brake discs, a telescopic front fork, an adjustable monoshock as a rear suspension, and lightweight, cast-aluminum, 13" wheels. 2004 MODEL The 2004 MY Aprilia Atlantic 200 has, at its heart, an air-cooled, four-stroke, 198cc, single cylinder powerhouse paired to a continuously variable transmission. This middle-class scooter comes standard with a dual seat, a passenger backrest, an under-seat storage compartment, front and rear disc brakes, a telescopic hydraulic fork, a rear monoshock suspension and a windscreen, for better protection against the elements. 2005 MODEL The 2005 MY Aprilia Atlantic 200 sports a liquid-cooled, four-stroke, 199cc, single cylinder engine mated to a continuously variable transmission, and can produce a claimed 13 horsepower and 11 Nm of torque. This middle-class scooter is suitable for both novice and experienced riders, alike, and comes standard with a dual seat with lumbar support for both the rider and the passenger, an under-seat storage compartment, lightweight, cast-aluminum wheels, a windscreen, an analogue instrument cluster, plus front and rear disc brakes. 2006 MODEL The 2006 MY Aprilia Atlantic 200 addresses both inexperienced and seasoned riders, making for a fuel-efficient daily commuter, as well as a machine capable of tackling longer hauls between cities. It comes standard with a spacious, two-up seat with lumbar support for both the rider and the passenger, an under-seat storage compartment, an analogue instrument cluster, front and rear disc brakes and a modern, edgy, overall design. In the tech/engine department, it sports a liquid-cooled, four-stroke, 199cc, single cylinder powerplant paired to a continuously variable transmission, and can produce a claimed 13 horsepower and 11 Nm of torque. 2007 MODEL The 2007 MY Aprilia Atlantic 200 is a middleweight, aggressive-styled scooter, that can be used both as an agile daily commuter, as well as for longer hauls between cities. It sports a liquid-cooled, four-stroke, 199cc, single cylinder powerhouse paired to a continuously variable transmission (CVT) and can produce 13 horsepower and 11 Nm of torque. The key features for this machine would be the front and rear disc brakes, for added safety, a generous dual seat with lumbar support for the rider and the eventual passenger, a windscreen, an analogue instrument cluster, a front telescopic fork, plus an adjustable monoshock as a rear suspension.
