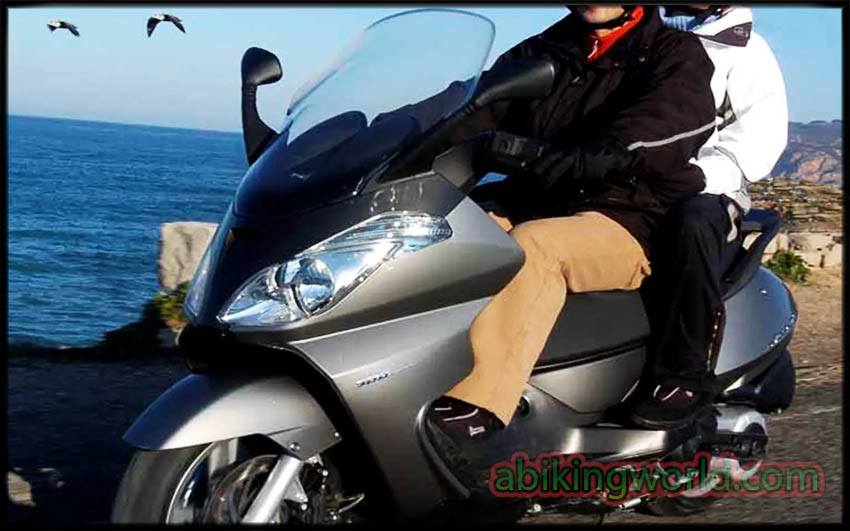

Often considered a super scooter, the Aprilia Atlantic 500 is heavy but sprightly.
| MODEL | ATLANTIC 500 |
| ENGINE TYPE | liquid-cooled, four-stroke, 460cc, single cylinder engine |
| Year | 2002 - 2006 |
| Displacement / Capacity | 460 cm3 |
| Bore X Stroke | 92 x 69 mm (86 x 69 mm). |
| Compression | 10.5:1. |
| Cooling System | — |
| Max Power | 27.5 kW – 37.4 HP at 7,250 rpm (25 kW – 34 HP at 7,500 rpm) |
| Max Torque | 42 Nm at 5,500 rpm (37 Nm at 5,500 rpm) |
| Ignition | Electronic CDI with automatic advance. |
| Induction | — |
| ---------------------- | |
| TRANSMISSION SPECS | |
| Lubrification | Wet sump. Forced lubrication with mechanical oil pump. |
| Gear Box | Automatic variator. |
| Clutch | Automatic centrifugal dry clutch. |
| Primary Drive | V belt. |
| Final Drive | Gearbox |
| ---------------------- | |
| CHASSIS SPECS | |
| Frame | High-strength tubular steel frame with closed double cradle. |
| Front Suspension | 35 mm hydraulic fork. Wheel travel 105 mm. |
| Rear Suspension | Engine acting as swingarm. Two gas filled shock absorbers with 5 position spring preload adjustment. / Wheel travel 90 mm. |
| Front Brakes | 260 mm (diam.) stainless steel disc with floating three piston caliper and integral braking system |
| Rear Brakes | 190 mm (diam.)stainless steel disc with integral braking system. |
| ---------------------- | |
| DIMENSION SPECS | |
| Overall Length | 2,200 mm |
| Seat Height | 780 mm |
| Overall height | 1,370 mm (at windshield) |
| Width | 815 mm (at handlebars) |
| ---------------------- | |
| WHEEL SPECS | |
| Front Tyre | 120/70 x 14". |
| Rear Tyre | 140/60 x 14". |
| Front Wheel / Rim | Light alloy. 3.00 x 14" |
| Rear Wheel / Rim | Light alloy. 3.75 x 14". |
| ---------------------- | |
| FUEL SYSTEM | |
| Fuel System | Electronic fuel injection. |
| Fuel Capacity | 15 litres (2 litre reserve). |
| Fuel | Unleaded petrol. |
| Fuel Consumption | — |
| Starting | Electric. |
| Alternator | 12 V – 380 W |
Often considered a super scooter, the Aprilia Atlantic 500 is heavy but sprightly. It is also quite roomy, practical and stable which means it suits all types of rider – even the more hardcore among you! The 2002 MY Aprilia Atlantic 500 has, at its heart, a liquid-cooled, four-stroke, 460cc, single cylinder powerplant mated to a continuously variable transmission (CVT), and can produce a claimed 39 horsepower and 40 Nm of torque. This maxi-scooter comes standard with a spacious, dual seat that offers lumbar support for the rider and a passenger backrest. A telescopic front fork, dual adjustable shock absorbers as a rear suspension, dual front disc brakes, and a large windscreen for improved protection against the elements. In 2005, it received some updates which smartened up its look, as well as improved and strengthened the frame and the suspension. This makes it a nimble bike with plenty of torque, more than capable of taking you places in comfort. The seat is plush, the leg space is ample, and the ride is smooth and predictable.
