The 1993-94 Pegaso 125 carried on the mechanical package introduced with the 1991 restyle: electric-start Rotax 123 two-stroke, 34 mm carburettor and…

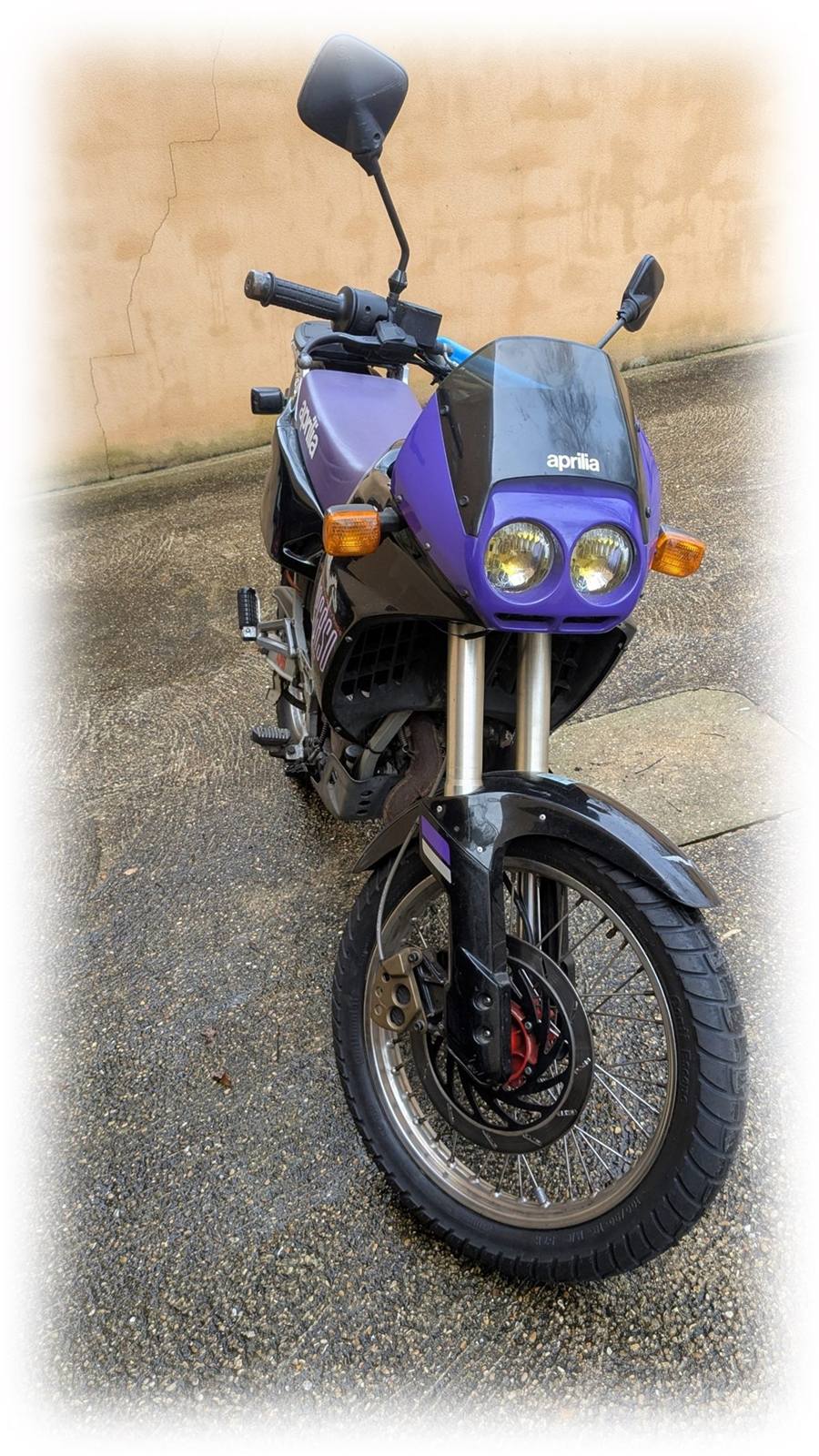

| MODEL | APRILIA PEGASO 125 1993 - 1994 |
| Year | 1993 - 1994 |
| Engine Type | Rotax 123, two-stroke, single cylinder, reed valve intake |
| Displacement / Capacity | 124 cc / 7.6 cu in |
| Bore X Stroke | 54 x 54.5 mm |
| Compression Ratio | 14.0:1 |
| Cooling System | Liquid cooled |
| Max Power | 23 kW / 31 hp @ 10000 rpm |
| Max Torque | 22.5 Nm / 2.3 kgf-m / 16.6 ft-lb |
| Ignition | Electronic, variable advance |
| Induction | 34 mm Dell'Orto VHSB 34 LD carburettor |
| Start System | Electric |
| TRANSMISSION SPECS | |
| Lubrication | Dry sump, external oil pump |
| Gear Box | 6 Speed |
| Clutch | Wet multi-plate, cable operated |
| Final Drive | Chain |
| CHASSIS SPECS | |
| Frame | Steel tubular frame |
| Front Suspension | 41 mm Marzocchi inverted telescopic fork, 210 mm / 8.3 in wheel travel |
| Rear Suspension | Single shock, preload adjustable, 220 mm / 8.7 in wheel travel |
| Front Brakes | Single 300 mm disc, 2 piston caliper |
| Rear Brakes | Single 220 mm disc, 1 piston caliper |
| DIMENSION SPECS | |
| Overall Length | 2070 mm |
| Overall Width | 850 mm |
| Overall Height | 1220 mm |
| Seat Height | 900 mm |
| Wheelbase | 1380 mm |
| Ground Clearance | 280 mm |
| Dry Weight | 118 kg / 260 lbs |
| Wet Weight | 140 kg |
| WHEEL SPECS | |
| Front Tyre | 100/90-19 |
| Rear Tyre | 130/80-17 |
| FUEL SYSTEM | |
| Fuel Capacity | 14 Litres / 3.7 US gal |
| Fuel Consumption | — |
| Top Speed | 159 km/h / 98.5 mph |
The 1993-94 Pegaso 125 carried on the mechanical package introduced with the 1991 restyle: electric-start Rotax 123 two-stroke, 34 mm carburettor and 41 mm upside-down fork. Changes were mostly cosmetic, with new colour schemes each year and, for the final 1994 series, a black-painted frame and a white, dark blue and cherry-red livery. By this point the Pegaso name had moved upmarket with the 650, and the 125 was wound down by 1995.
