For 1997 the Pegaso was restyled into the version known as the Cube, with new bodywork, revised chassis geometry and a range of mechanical changes.

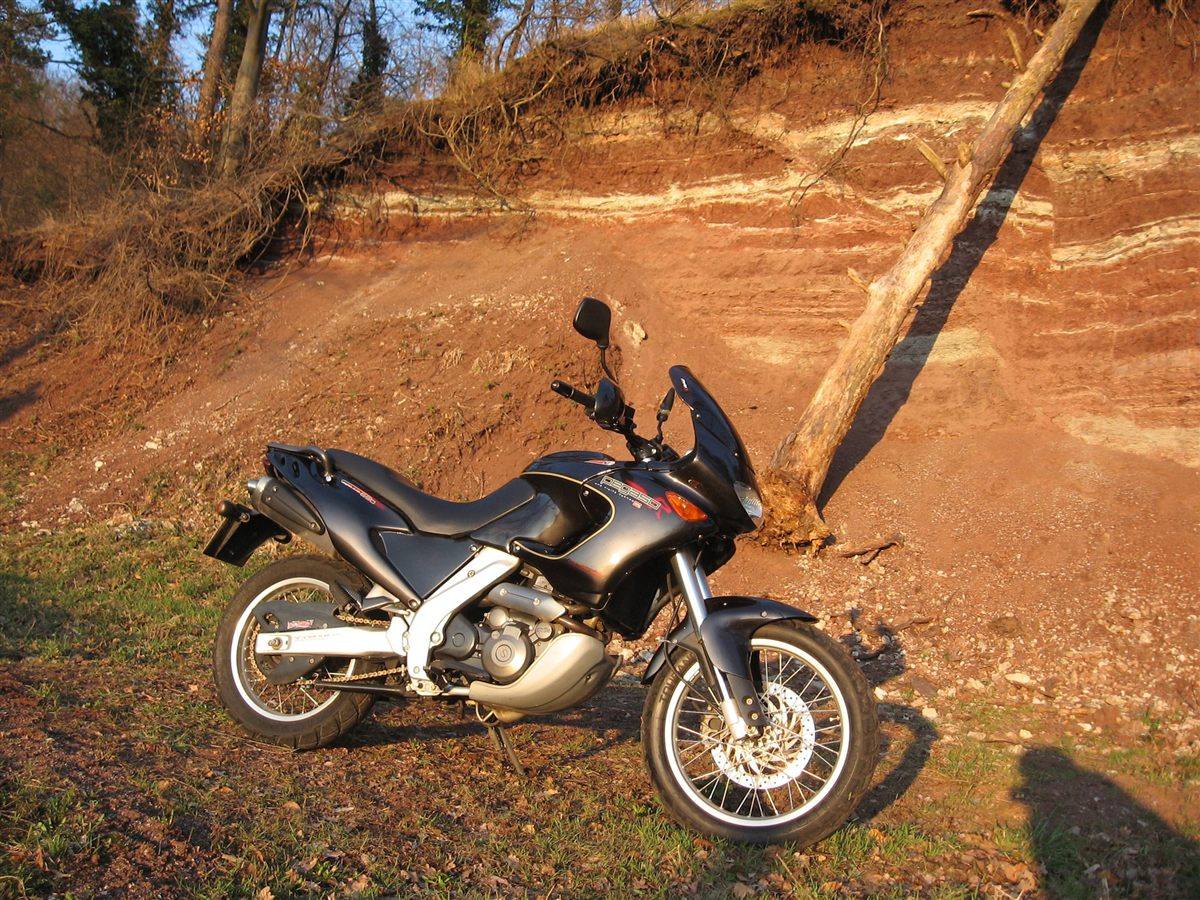

| MODEL | APRILIA PEGASO 650 1997 - 1998 |
| Year | 1997 - 1998 |
| Engine Type | Four stroke, single cylinder, DOHC, 5 valves |
| Displacement / Capacity | 652 cc / 39.8 cu in |
| Bore X Stroke | 100 x 83 mm |
| Compression Ratio | 9.1:1 |
| Cooling System | Liquid cooled |
| Max Power | 36.4 kW / 50 hp @ 7000 rpm |
| Max Torque | 59 Nm / 6.02 kgf-m / 43.5 lb-ft @ 6500 rpm |
| Ignition | — |
| Induction | 2 x 32 mm Mikuni BST33 carburettors |
| Start System | Electric |
| TRANSMISSION SPECS | |
| Lubrication | — |
| Gear Box | 5 Speed |
| Clutch | — |
| Final Drive | Chain |
| CHASSIS SPECS | |
| Frame | — |
| Front Suspension | 45 mm Marzocchi upside-down forks, preload adjustable, 175 mm / 6.9 in travel |
| Rear Suspension | Varying-section high-strength steel swingarm, Aprilia Progressive System (APS) rising-rate linkage |
| Front Brakes | Single 300 mm disc, 2 piston caliper |
| Rear Brakes | Single 220 mm disc, 1 piston caliper |
| DIMENSION SPECS | |
| Overall Length | — |
| Overall Width | — |
| Overall Height | — |
| Seat Height | 845 mm / 33.3 in |
| Wheelbase | — |
| Ground Clearance | — |
| Dry Weight | 160 kg / 352 lbs |
| Wet Weight | 175 kg / 385 lbs |
| WHEEL SPECS | |
| Front Tyre | 100/90-19 |
| Rear Tyre | 130/80-17 |
| FUEL SYSTEM | |
| Fuel Capacity | 21 Litres / 5.5 US gal |
| Fuel Consumption | 5.6 L/100 km / 17.7 km/l / 41.6 US mpg |
| Top Speed | 178.6 km/h / 111 mph |
For 1997 the Pegaso was restyled into the version known as the Cube, with new bodywork, revised chassis geometry and a range of mechanical changes. Front suspension switched to a larger 45 mm Marzocchi upside-down fork with less travel, and the rear tyre went to a narrower 130/80-17, underlining a shift toward an urban all-rounder rather than an off-roader. It competed with the BMW F650 and Suzuki Freewind as a practical, fun middleweight single.
