Brought the biggest visual change to the RS 125 in years: sharp, RSV 1000 R-inspired fairings with a twin-lamp nose, a digital instrument panel with…
| MODEL | APRILIA RS 125 2006 |
| Year | 2006 |
| Engine Type | Single cylinder, two-stroke, reed valve intake |
| Displacement / Capacity | 124.8 cc / 7.62 cu in |
| Bore X Stroke | 54.0 x 54.5 mm / 2.1 x 2.1 in |
| Compression Ratio | 12.5:1 |
| Cooling System | Liquid cooled |
| Max Power | 20.6 kW / 28.2 hp @ 10500 rpm |
| Max Torque | 19.0 Nm / 1.9 kgf-m / 14.0 lb-ft @ 10250 rpm |
| Ignition | Nippondenso CDI |
| Induction | Dell'Orto PHBH 28 BD carburettor, membrane and power valve |
| Start System | Electric |
| TRANSMISSION SPECS | |
| Lubrication | Separate mixing with variable displacement volumetric pump |
| Gear Box | 6 Speed |
| Clutch | Wet, multi-plate (oil bath) |
| Final Drive | Chain |
| CHASSIS SPECS | |
| Frame | Sloping twin-spar frame in thin-wall box-section cast aluminium with reinforcement cross-ribbing |
| Front Suspension | 40 mm upside-down hydraulic telescopic fork, 120 mm / 4.7 in travel |
| Rear Suspension | Cast aluminium swingarm, single hydraulic monoshock with adjustable spring preload, 120 mm / 4.7 in travel |
| Front Brakes | Single 320 mm / 12.6 in disc, radial 4-piston caliper |
| Rear Brakes | Single 220 mm / 8.7 in disc, 2-piston caliper |
| DIMENSION SPECS | |
| Overall Length | 1955 mm / 77.0 in |
| Overall Width | 720 mm / 28.3 in |
| Overall Height | 1100 mm / 43.3 in |
| Seat Height | 805 mm / 31.7 in |
| Wheelbase | 1345 mm / 53.0 in |
| Ground Clearance | 163 mm / 6.4 in |
| Dry Weight | 127 kg |
| Wet Weight | 137 kg / 302 lbs |
| WHEEL SPECS | |
| Front Tyre | 110/70-R17 |
| Rear Tyre | 150/60-R17 |
| FUEL SYSTEM | |
| Fuel Capacity | 14 Litres / 3.7 US gal |
| Fuel Consumption | — |
| Top Speed | 155 km/h / 96.3 mph |

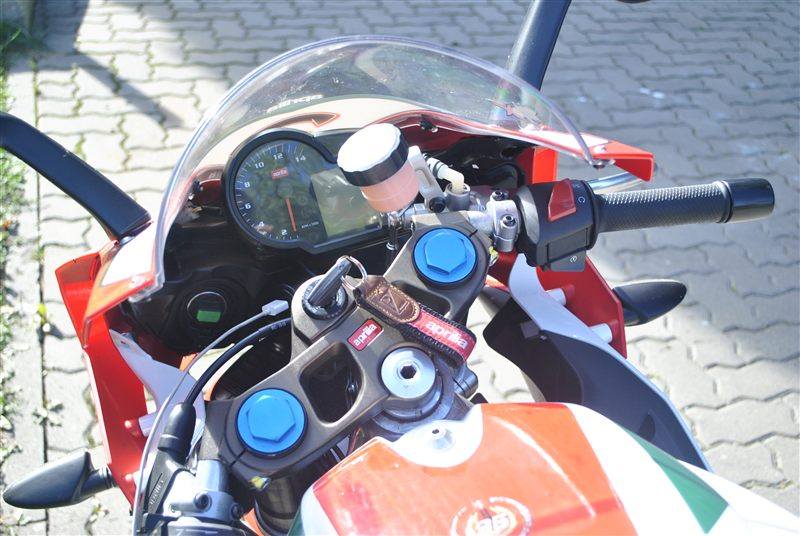

2006 brought the biggest visual change to the RS 125 in years: sharp, RSV 1000 R-inspired fairings with a twin-lamp nose, a digital instrument panel with lap timer and a radial four-piston front brake with braided lines. The two-stroke Rotax single, aluminium beam frame and 40 mm upside-down fork were carried over. It remained a light, high-revving learner sportsbike that needs to be kept near the top of the rev range.
