Aprilia RS4 125 2012 - 2013 Specs & Photos

Spec sheet

MODEL	APRILIA RS4 125 2012 - 2013
Year	2012 - 2013
Engine Type	Four-stroke, single cylinder, DOHC, 4 valves
Displacement / Capacity	124.8 cc / 7.6 cu in
Bore X Stroke	58 x 47 mm / 2.3 x 1.9 in
Compression Ratio	12.5:1
Cooling System	Liquid cooled
Max Power	11.7 kW / 16 hp @ 10500 rpm
Max Torque	11 Nm / 8.1 lb-ft @ 8500 rpm
Ignition	Electronic, CDI
Induction	Electronic fuel injection, Magneti Marelli MIU G3, 32 mm throttle body
Start System	Electric
TRANSMISSION SPECS
Lubrication	Wet sump
Gear Box	6-speed
Clutch	Wet multi-plate (oil bath)
Final Drive	Chain
CHASSIS SPECS
Frame	Aluminium perimeter frame with die-cast spars
Front Suspension	41 mm upside-down fork, 110 mm / 4.3 in travel
Rear Suspension	Asymmetric swingarm with monoshock, 130 mm / 5.1 in travel
Front Brakes	Single 300 mm stainless steel disc, radial 4-piston caliper
Rear Brakes	Single 218 mm stainless steel disc, single-piston caliper
DIMENSION SPECS
Overall Length	1953 mm / 76.9 in
Overall Width	740 mm / 29.1 in
Overall Height	1138 mm / 44.8 in
Seat Height	820 mm / 32.3 in
Wheelbase	1350 mm / 53.1 in
Ground Clearance	—
Dry Weight	120 kg / 265 lbs
Wet Weight	—
WHEEL SPECS
Front Tyre	110/80-17
Rear Tyre	130/70-17
FUEL SYSTEM
Fuel Capacity	14.5 Litres / 3.8 US gal
Fuel Consumption	—
Top Speed	110 km/h / 68 mph

Photo gallery

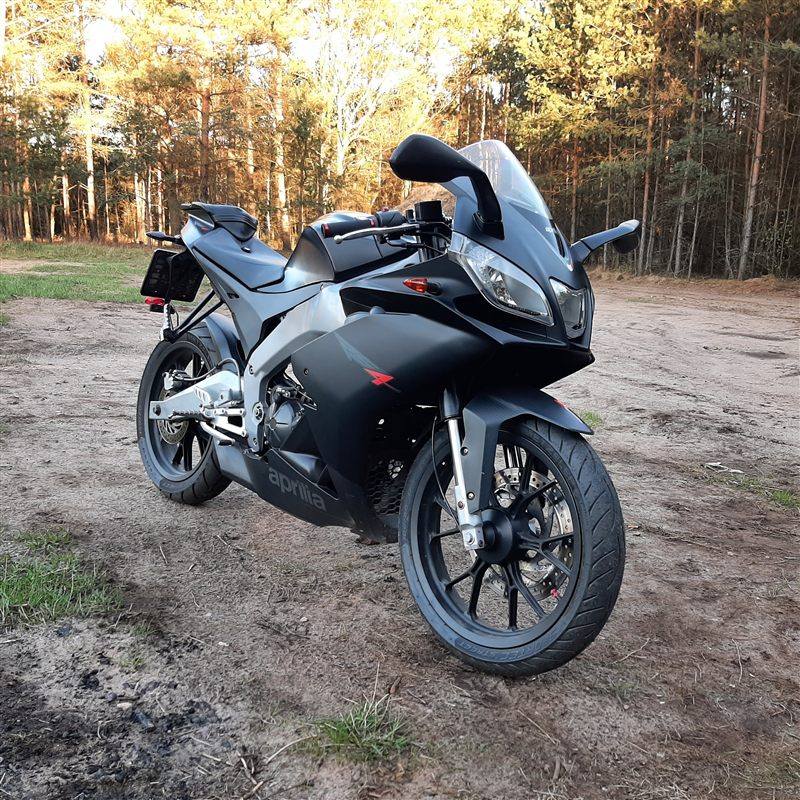

Photo: PrzemoSS, CC BY-SA 4.0, via Wikimedia Commons

Aprilia file

For 2012 and 2013 the RS4 125 carried on mechanically unchanged from its 2011 debut, still Euro 3 compliant and still aimed at A1 learner riders. The fuel-injected four-valve single, six-speed gearbox, aluminium perimeter frame and radial-caliper front brake all stayed the same. The main news in this period was the Biaggi-liveried Replica, added alongside the standard bike in mid-2012.

APRILIA RS4 125 2012 - 2013
