The 2002 Futura carried on unchanged in its essentials: the 113 hp RSV-derived V-twin, Showa fork, Sachs shock on a single-sided swingarm and Brembo…
| MODEL | APRILIA RST 1000 FUTURA 2002 |
| Year | 2002 |
| Engine Type | Four-stroke, longitudinal 60° V-twin, DOHC, 4 valves per cylinder |
| Displacement / Capacity | 997.6 cc / 60.9 cu in |
| Bore X Stroke | 97 x 67.5 mm / 3.82 x 2.66 in |
| Compression Ratio | 11.8:1 |
| Cooling System | Liquid cooled |
| Max Power | 83 kW / 113 hp @ 9250 rpm |
| Max Torque | 96 Nm / 70.8 lb-ft @ 7250 rpm |
| Ignition | Digital electronic, two spark plugs per cylinder |
| Induction | Electronic multipoint fuel injection |
| Start System | Electric |
| TRANSMISSION SPECS | |
| Lubrication | — |
| Gear Box | 6-speed |
| Clutch | Wet multi-plate |
| Final Drive | Chain |
| CHASSIS SPECS | |
| Frame | Aluminium alloy twin-spar |
| Front Suspension | 43 mm Showa upside-down fork, adjustable preload and rebound, 120 mm / 4.7 in travel |
| Rear Suspension | Aluminium single-sided swingarm with progressive linkage, Sachs shock adjustable for preload and rebound, 120 mm / 4.7 in travel |
| Front Brakes | 2 x 300 mm floating discs, 4-piston calipers |
| Rear Brakes | Single 255 mm disc, 2-piston caliper |
| DIMENSION SPECS | |
| Overall Length | 2170 mm / 85.4 in |
| Overall Width | 740 mm / 29.1 in |
| Overall Height | 1220 mm / 48.0 in |
| Seat Height | 820 mm / 32.3 in |
| Wheelbase | 1435 mm / 56.5 in |
| Ground Clearance | — |
| Dry Weight | 210 kg / 463 lb |
| Wet Weight | 235 kg / 518 lb |
| WHEEL SPECS | |
| Front Tyre | 120/70 ZR17 |
| Rear Tyre | 180/55 ZR17 |
| FUEL SYSTEM | |
| Fuel Capacity | 21 Litres / 5.5 US gal |
| Fuel Consumption | 5.6 L/100 km / 42.3 US mpg |
| Top Speed | 239 km/h / 149 mph |

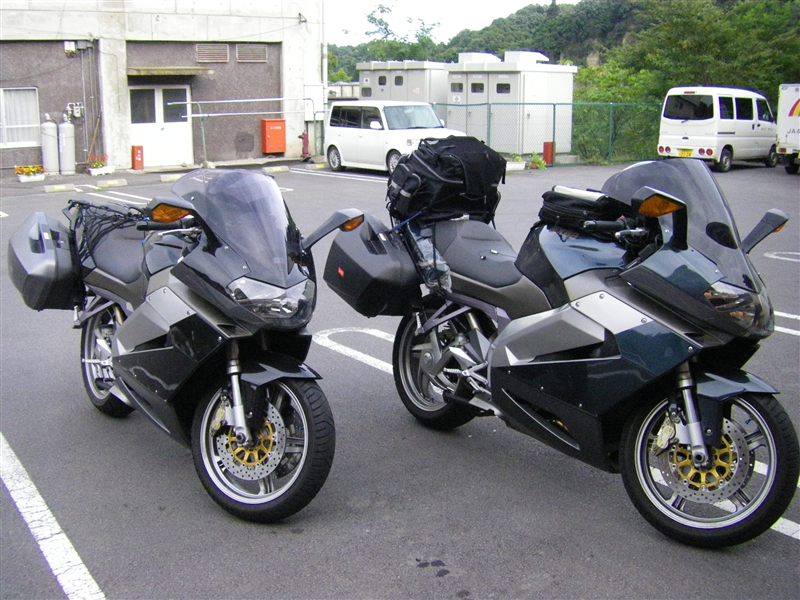

Photo: Giobar65, Public domain, via Wikimedia Commons

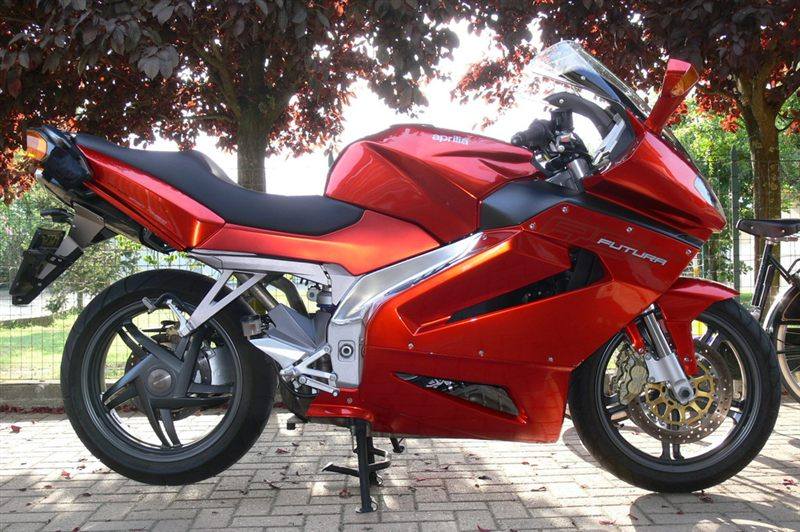

Photo: ã™ãšãã™ãšã, CC BY-SA 3.0, via Wikimedia Commons
The 2002 Futura carried on unchanged in its essentials: the 113 hp RSV-derived V-twin, Showa fork, Sachs shock on a single-sided swingarm and Brembo brakes. Road testers liked its comfort, wind protection and range, while the front brakes drew criticism for lacking bite compared with Aprilia's superbikes.
