The 2006 Factory took the revised RSV 1000 R and added fully adjustable Öhlins suspension with a TiN-coated fork, an Öhlins steering damper, forged…

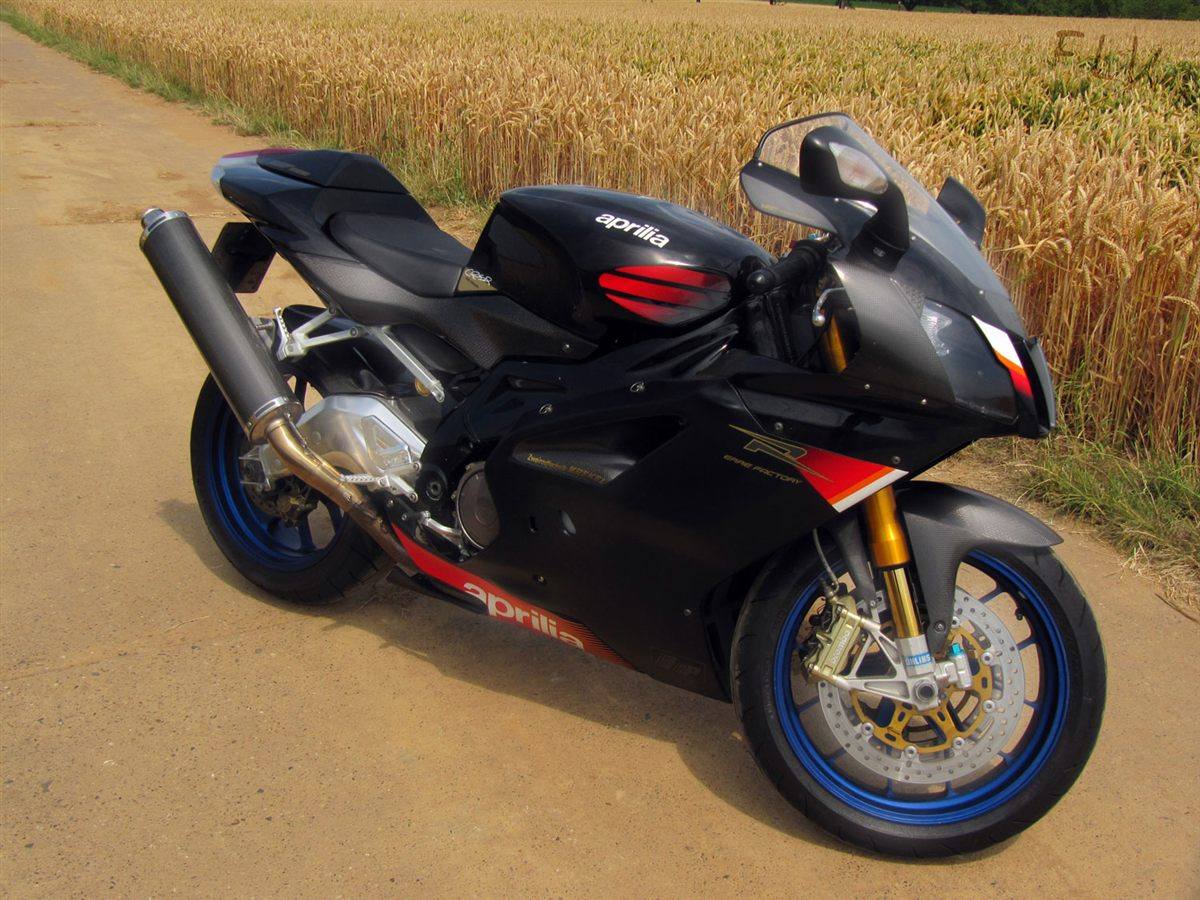

| MODEL | APRILIA RSV 1000R FACTORY 2006 |
| Year | 2006 |
| Engine Type | Four stroke, longitudinal 60° V-twin, DOHC, 4 valves per cylinder |
| Displacement / Capacity | 997.6 cc / 60.9 cu in |
| Bore X Stroke | 97 x 67.5 mm |
| Compression Ratio | 11.8:1 |
| Cooling System | Liquid cooled |
| Max Power | 102 kW / 139 hp @ 9500 rpm |
| Max Torque | 107 Nm / 78.9 lb-ft @ 7500 rpm |
| Ignition | Digital electronic, one spark plug per cylinder, integrated with the fuel injection system |
| Induction | Integrated electronic engine management, indirect multipoint electronic injection, 57 mm throttle bodies; 10.3 litre airbox with Air Runner scoop |
| Start System | Electric |
| TRANSMISSION SPECS | |
| Lubrication | Dry sump with separate oil tank |
| Gear Box | 6 Speed |
| Clutch | Wet multi-plate with PPC power-assisted hydraulic control |
| Final Drive | Chain, 40/16 (2.5) |
| CHASSIS SPECS | |
| Frame | Box-section sloping twin-spar aluminium alloy frame; adjustable double-chamber Öhlins steering damper |
| Front Suspension | Öhlins 43 mm titanium-nitride coated upside-down fork, adjustable rebound, compression and preload |
| Rear Suspension | Aluminium alloy swingarm with APS linkage; Öhlins monoshock with piggy-back reservoir, adjustable compression, rebound, preload and length |
| Front Brakes | 2 x 320 mm discs, Brembo 4-piston radial calipers |
| Rear Brakes | Single 220 mm disc, Brembo 2-piston caliper |
| DIMENSION SPECS | |
| Overall Length | 2040 mm / 80.3 in |
| Overall Width | 735 mm / 28.9 in |
| Overall Height | 1120 mm / 44.0 in |
| Seat Height | 845 mm / 33.2 in |
| Wheelbase | 1410 mm / 55.3 in |
| Ground Clearance | — |
| Dry Weight | 185 kg / 408 lbs |
| Wet Weight | — |
| WHEEL SPECS | |
| Front Tyre | 120/70 ZR17 |
| Rear Tyre | 190/50 ZR17 |
| FUEL SYSTEM | |
| Fuel Capacity | 18 Litres / 4.8 US gal |
| Fuel Consumption | — |
| Top Speed | 278 km/h / 172.7 mph |
The 2006 Factory took the revised RSV 1000 R and added fully adjustable Öhlins suspension with a TiN-coated fork, an Öhlins steering damper, forged wheels, a racing seat, a black-finished frame and carbon body parts. The engine was largely carried over but remapped for stronger mid-range. It was named overall Masterbike for 2006, a strong endorsement of its track ability.
