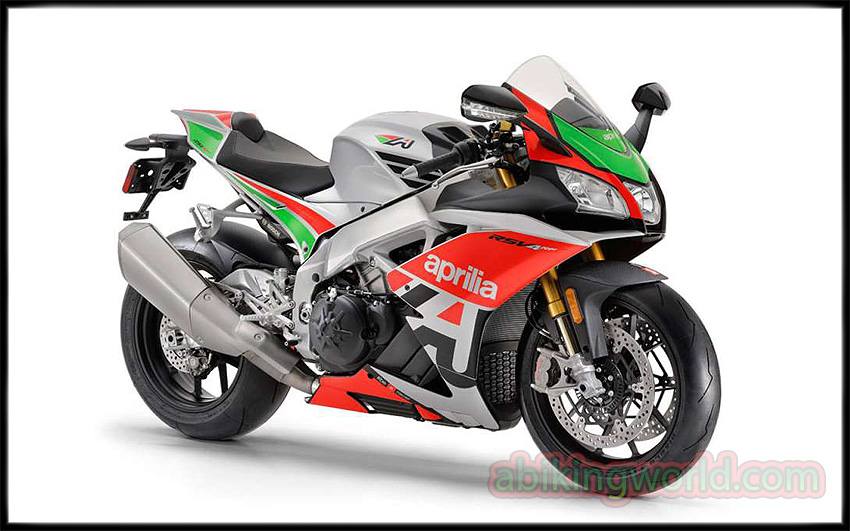

| MODEL | APRILIA RSV 4 LIMITED EDITION |
| ENGINE TYPE | Aprilia longitudinal 65° V-4 cylinder, 4-stroke, liquid cooling system, double overhead camshafts (DOHC), four valves per cylinder |
| Year | 2019 |
| Displacement / Capacity | 999.6 cc |
| Bore X Stroke | 78 x 52.3 mm |
| Compression Ratio | 13.6:1 |
| Cooling System | Liquid Cooled |
| Max Power | 201 HP (148 kW) at 13,000 rpm |
| Max Torque | 115 Nm at 10,500 rpm |
| Ignition | Magneti Marelli digital electronic ignition system integrated in engine control system, with one spark plug per cylinder and “stick-coil”-type coils |
| Induction | Airbox with front dynamic air intakes. 4 Marelli 48-mm throttle bodies with 8 injectors and latest generation Ride-By-Wire engine management. / Choice of three different engine maps selectable by the rider with bike in motion, Track, Sport, Race |
| Start System | Electric |
| TRANSMISSION | |
| Lubrication | Wet sump lubrication system with oil radiator and two oil pumps (lubrication and cooling) |
| Gear Box | 6 Speed gearbox, cassette type |
| Clutch | Multi plate wet clutch with mechanical slipper system |
| Primary / Final Drive | Straight cut gears and integrated flexible coupling, drive ratio: 73/44 (1,659) |
| Secondary drive | Chain: Drive ratio: 42:16 (2.625) |
| Gear Ratio | 1st: 39/15 (2.600) 2nd: 33/16 (2.063) 3rd: 34/20 (1.700) 4th: 31/21 (1.476) 5th: 31/23 (1.348) 6th: 34/27 (1.259). / Gear lever with Aprilia Quick Shift electronic system (AQS) |
| CHASSIS SPECS | |
| Frame | Aluminium dual beam chassis with pressed and cast sheet elements Available adjustments: / Headstock position and rake / Engine height / Swingarm pin height / Non adjustable Sachs steering damper |
| Front Suspension | Sachs Fork with 43 mmÆ stanchions. Forged billet aluminium radial calliper mountings. Adjustable spring preload and hydraulic compression and rebound damping. Wheel travel: 120 mm |
| Rear Suspension | Double braced aluminium swingarm; mixed low thickness and sheet casting technology. / Sachs monoshock adjustable in: hydraulics in compression and rebound, spring preload, 130 mm wheel travel. |
| Front Brakes | Dual 330-mm diameter floating stainless steel disc with lightweight stainless steel rotor and aluminium flange with 6 pins. Brembo M50 / monobloc radial callipers with 30 mm opposing pistons. Sintered pads. Radial pump and metal braided brake hose |
| Rear Brakes | 220 mm diameter disc; Brembo calliper with two 32 mm separate pistons Æ32 mm. Sintered pads. Pump with integrated tank and metal braided hose / Bosch 9.1 MP ABS with cornering function, adjustable to 3 maps equipped with RLM (Rear wheel Lift-up Mitigation) (can be disabled). |
| Exhaust System | 4 into 2 into 1 layout, two oxygen sensors, lateral single silencer with ECU-controlled bypass valve and integrated trivalent catalytic converter (Euro 4) |
| DIMENSION SPECS | |
| Overall Length | 2055 mm / 80.9 in |
| Seat Height | 853 mm / 33.5 in |
| Overall height | 1120 mm / 44.0 in |
| Width | 735 mm / 28.9 in (at the handlebar) |
| Overall Weight | Dry Weight - 182 kg / 401 lbs / Wet Weight - 204 kg / 450 lbs |
| WHEEL SPECS | Aprilia in aluminium alloy wheels with 3 split spoke design |
| Front Tyre | Radial tubeless. 120/70 ZR 17 |
| Rear Tyre | Radial tubeless. 200/55 ZR 17 (alternative: 190/50 ZR 17; 190/55 ZR 17) |
| Front Wheel Travel | 120 mm / 4.7 in |
| Rear Wheel Travel | 130 mm / 5.1 in |
| Trail | 105 mm / 4.1 in |
| Traction Management | APRC System (Aprilia Performance Ride Control), which includes / Traction Control (ATC), Wheelie Control (AWC), Launch Control (ALC), cruise control (ACC) and speed limiter (APT), all of which can be configured / and deactivated independently |
| FUEL SYSTEM | |
| Fuel System | Airbox with front dynamic air intakes. 4 Marelli 48-mm throttle bodies with 8 injectors and latest generation Ride-By-Wire engine management. / Choice of three different engine maps selectable by the rider with bike in motion: T (Track), S (Sport), R (Race) |
| Fuel Capacity | 18.5 Litres / 4.9 US gal |
| Fuel Reserve | 4 Liters / 1.1 US gal |
| Full Consumption | 6,67 litres/100 km |
| Top Speed | Top Speed: 180 mph (Est.) |
| CAPACITIES | |
| Fork oil per rod | — |
| Engine oil w/o Filter | — |
| Engine oil with filter | — |
| Brake fluid | DOT 4 |
| Coolant | WATER + |
