APRILIA RSV4 RF 2015

The RF was the premium, numbered version of the new-for-2015 RSV4 RR, built in a run of 500.

APRILIA RSV4 RF 2015
APRILIA RSV4 RF 2015 · Photo: Frank Schwichtenberg, CC BY-SA 3.0, via Wikimedia Commons
Spec sheet
MODELAPRILIA RSV4 RF 2015
Year2015
Engine TypeFour stroke, longitudinal 65° V4, DOHC, 4 valves per cylinder
Displacement / Capacity999.6 cc / 61.0 cu in
Bore X Stroke78 x 52.3 mm
Compression Ratio13.6:1
Cooling SystemLiquid cooled
Max Power148 kW / 201 hp @ 13000 rpm
Max Torque115 Nm @ 10500 rpm
IgnitionMagneti Marelli digital electronic ignition integrated in the engine management, one spark plug per cylinder, stick coils
Induction4 Marelli 48 mm throttle bodies, 8 injectors, Ride-by-Wire; ECU-controlled variable-length intake ducts
Start SystemElectric
TRANSMISSION SPECS
LubricationWet sump, two pumps (lubrication and cooling), oil cooler
Gear Box6-speed cassette type
ClutchWet multi-plate with mechanical slipper system
Final DriveChain
CHASSIS SPECS
FrameDual aluminium beam chassis with pressed and cast sheet elements
Front SuspensionÖhlins 43 mm racing fork with TiN treatment, adjustable preload, compression and rebound damping, 120 mm / 4.7 in travel; adjustable Öhlins steering damper
Rear SuspensionDouble-braced aluminium swingarm, Öhlins piggy-back monoshock, fully adjustable (preload, length, compression, rebound), APS progressive linkage, 130 mm / 5.1 in travel
Front Brakes2 x 320 mm floating stainless steel discs, Brembo monobloc radial calipers with 4 x 30 mm pistons, sintered pads
Rear BrakesSingle 220 mm disc, Brembo floating caliper, 2 x 32 mm pistons
DIMENSION SPECS
Overall Length2040 mm / 80.3 in
Overall Width735 mm / 28.9 in
Overall Height1120 mm / 44.0 in
Seat Height845 mm / 33.2 in
Wheelbase1420 mm
Ground Clearance130 mm / 5.1 in
Dry Weight180 kg / 397 lbs
Wet Weight—
WHEEL SPECS
Front Tyre120/70 ZR17
Rear Tyre200/55 ZR17 (alt. 190/50 ZR17, 190/55 ZR17)
FUEL SYSTEM
Fuel Capacity18.5 Litres / 4.9 US gal (incl. 4 L reserve)
Fuel Consumption—
Top Speed291.2 km/h / 180.9 mph
Photo gallery
APRILIA RSV4 RF 2015

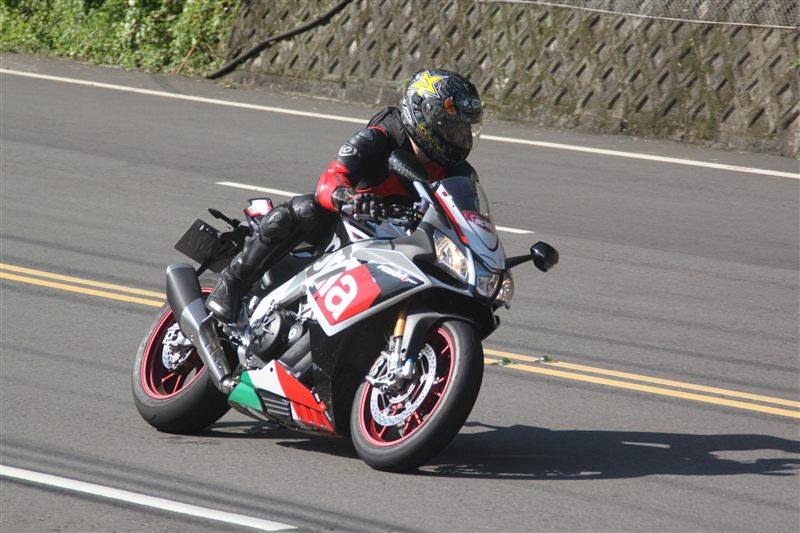

Photo: 志遠 古, Public domain, via Wikimedia Commons

Aprilia file

The RF was the premium, numbered version of the new-for-2015 RSV4 RR, built in a run of 500. It shares the RR's 201 hp V4 and electronics, but comes with the Race Pack fitted as standard: Öhlins fork, shock and adjustable steering damper plus lightweight forged wheels. A dedicated Superpole livery set it apart visually.
