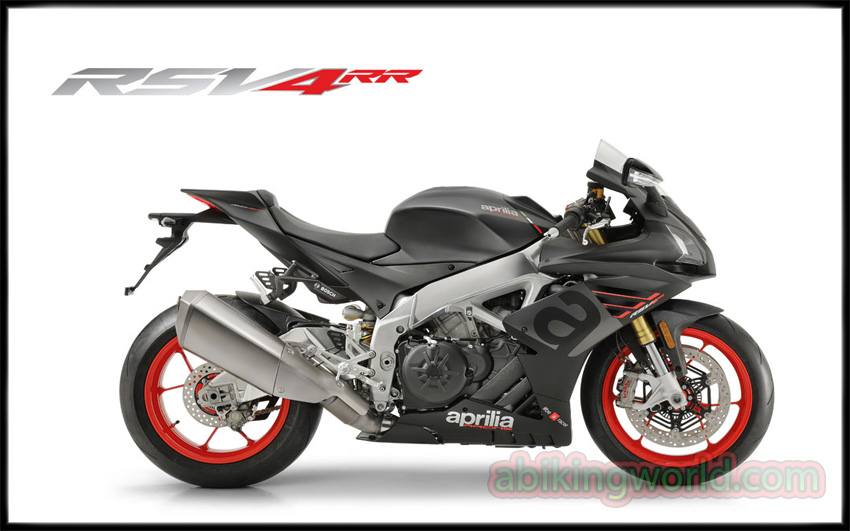

| MODEL | Aprilia RSV-4 RR |
| ENGINE TYPE | Four stroke, longitudinal 65° V four , DOHC, 4 valves per cylinder |
| Year | 2020 |
| Displacement / Capacity | 999.6 cc / 61.0 cu-in |
| Bore X Stroke | 78 x 52.3 mm |
| Compression Ratio | 13.6:1 |
| Cooling System | Liquid Cooled |
| Max Power | 148 kW / 201 hp @ 13000 rpm |
| Max Torque | 115 Nm / 11.9 kgf-m / 86.2 lb-ft @ 10500 rpm |
| Ignition | Magneti Marelli digital electronic ignition system integrated in engine control system, with one spark plug per cylinder and / “stick-coil”-type coils |
| Induction | Airbox with front dynamic air intakes. 4 Marelli 48-mm throttle bodies with 8 injectors and latest generation Ride-By-Wire engine management. / Choice of three different engine maps selectable by the rider with bike in motion, Track, Sport, Race |
| Start System | Electric |
| TRANSMISSION SPECS | |
| Lubrication | Wet sump lubrication system with oil radiator and two oil pumps (lubrication and cooling) |
| Gear Box | 6 Speed gearbox - Cassette type |
| Clutch | Multi-disc oil bath with mechanical slipper system |
| Primary / Final Drive | Final Drive : Chain / Primary Drive : Straight cut gears and integrated flexible coupling, drive ratio: 73:44 (1,659) |
| Secondary drive | Secondary drive Chain: Drive ratio: 42:16 (2.625) |
| Gear Ratio | 1st: 39/15 (2.600) 2nd: 33/16 (2.063) 3rd: 34/20 (1.700) 4th: 31/21 (1.476) 5th: 31/23 (1.348) 6th: 34/27 (1.259) |
| CHASSIS SPECS | |
| Frame | Aluminium dual beam chassis with pressed and cast sheet elements Available adjustments: headstock position and rake, / engine height, swingarm pin height. Smart EC 2.0 electronically managed Öhlins steering damper [Sachs steering damper] |
| Front Suspension | Smart EC 2.0 electronically managed Öhlins NIX fork. 43 mm stanchions, with TIN surface treatment. [Sachs fork with 43 mm stanchions], / Aluminium radial calliper mounting bracket. Adjustable spring pre-load and hydraulic compression and rebound damping. |
| Rear Suspension | Sachs monoshock adjustable in: hydraulic compression and rebound damping, spring pre-load and centre-to-centre distance. |
| Brakes | Front Brakes: / 2 x 330-mm diameter floating stainless steel disc with lightweight stainless steel rotor and / aluminium flange with 6 pins. Brembo Stylema® [M50] monobloc radial callipers with 4 30 mm opposing pistons. Sintered pads. / Radial pump and metal braided brake hose. / / Rear Brakes : / Single 220 mm diameter disc; Brembo calliper with two 32 mm separate pistons. Sintered pads. / Pump with integrated tank and metal braided hose Bosch 9.1 MP ABS with cornering function, adjustable to 3 maps equipped with / RLM (Rear wheel Lift-up Mitigation) (can be disabled). |
| Traction Management | APRC System (Aprilia Performance Ride Control), which includes Traction Control (ATC), Wheelie Control (AWC), Launch Control (ALC), / cruise control (ACC) and speed limiter (APT), all of which can be configured and deactivated independently |

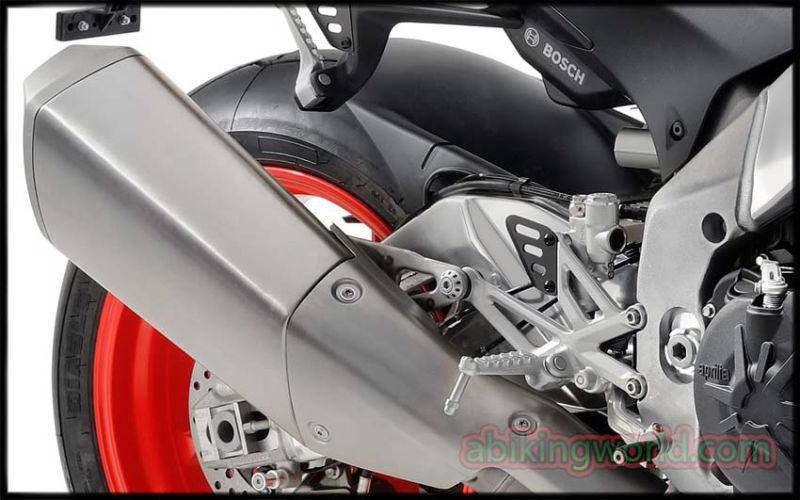

| Exhaust System | 4 into 2 into 1 layout, two lambda probes, lateral single silencer with ECU-controlled bypass valve and integrated trivalent / catalytic converter |
| DIMENSION SPECS | |
| Overall Length | 2055 mm / 80.9 in |
| Seat Height | 853 mm / 33.5 in |
| Ground Clearance | 130 mm / 5.1 in |
| Width | 735 mm / 28.9 in (at the handlebar) |
| Overall Weight | Dry Weight - 182 kg / 401 lbs / Wet Weight - 204 kg / 450 lbs |
| Wheelbase | 1441.6 mm / 56.7 in |
| WHEEL SPECS | |
| Wheels / Rims | Aprilia in aluminium alloy wheels with 3 split spoke design / Front Wheel : / 3.5 x 17 / / Rear Wheel: / 6.0 x 17 |
| Front Tyre | Radial tubeless 120/70 ZR17 |
| Rear Tyre | Radial tubeless 200/55 ZR 17 (alternative: 190/50 ZR 17; 190/55 ZR 17) |
| Front Wheel Travel | 120 mm / 4.7 in |
| Rear Wheel Travel | 130 mm / 5.1 in |
| Trail | 103 mm / 4.0 in |
| Steering Angle | 24.5° |
| FUEL SYSTEM | |
| Fuel Capacity | 18.5 Litres / 4.9 US gal |
| Fuel Reserve | 4 Liters / 1.1 US gal |
| CAPACITIES | |
| Fork oil per rod | — |
| Engine oil w/o Filter | — |
| Engine oil with filter | — |
| Brake fluid | — |
| Top Speed | 177.7 mph (286.0 km/h) |
