For 2012 and 2013 the SR Max 300 carried on essentially unchanged, still built around its 278 cc four-valve injected single and a twin-shock steel…
| MODEL | APRILIA SR MAX 300 2012 - 2013 |
| Year | 2012 - 2013 |
| Engine Type | Single cylinder, four-stroke, SOHC, 4 valves |
| Displacement / Capacity | 278 cc / 17.0 cu in |
| Bore X Stroke | 75 x 63 mm / 3.0 x 2.5 in |
| Compression Ratio | 11.5:1 |
| Cooling System | Liquid cooled |
| Max Power | 16.1 kW / 22 hp @ 7250 rpm |
| Max Torque | 23 Nm / 17.0 lb-ft @ 6000 rpm |
| Ignition | — |
| Induction | Electronic fuel injection |
| Start System | Electric |
| TRANSMISSION SPECS | |
| Lubrication | Wet sump |
| Gear Box | Automatic CVT |
| Clutch | Automatic dry centrifugal |
| Final Drive | Belt |
| CHASSIS SPECS | |
| Frame | Double cradle trellis in high strength steel tubing |
| Front Suspension | 35 mm hydraulic telescopic fork |
| Rear Suspension | Twin hydraulic shock absorbers, 3-position spring preload adjustment |
| Front Brakes | Single 260 mm disc, 2-piston floating caliper |
| Rear Brakes | Single 240 mm disc |
| DIMENSION SPECS | |
| Overall Length | 2110 mm / 83.1 in |
| Overall Width | 780 mm / 30.7 in |
| Overall Height | 1515 mm / 59.6 in |
| Seat Height | 815 mm / 32.1 in |
| Wheelbase | — |
| Ground Clearance | — |
| Dry Weight | — |
| Wet Weight | — |
| WHEEL SPECS | |
| Front Tyre | 120/70-15 |
| Rear Tyre | 140/60-14 |
| FUEL SYSTEM | |
| Fuel Capacity | 15.5 Litres / 4.1 US gal |
| Fuel Consumption | — |
| Top Speed | — |

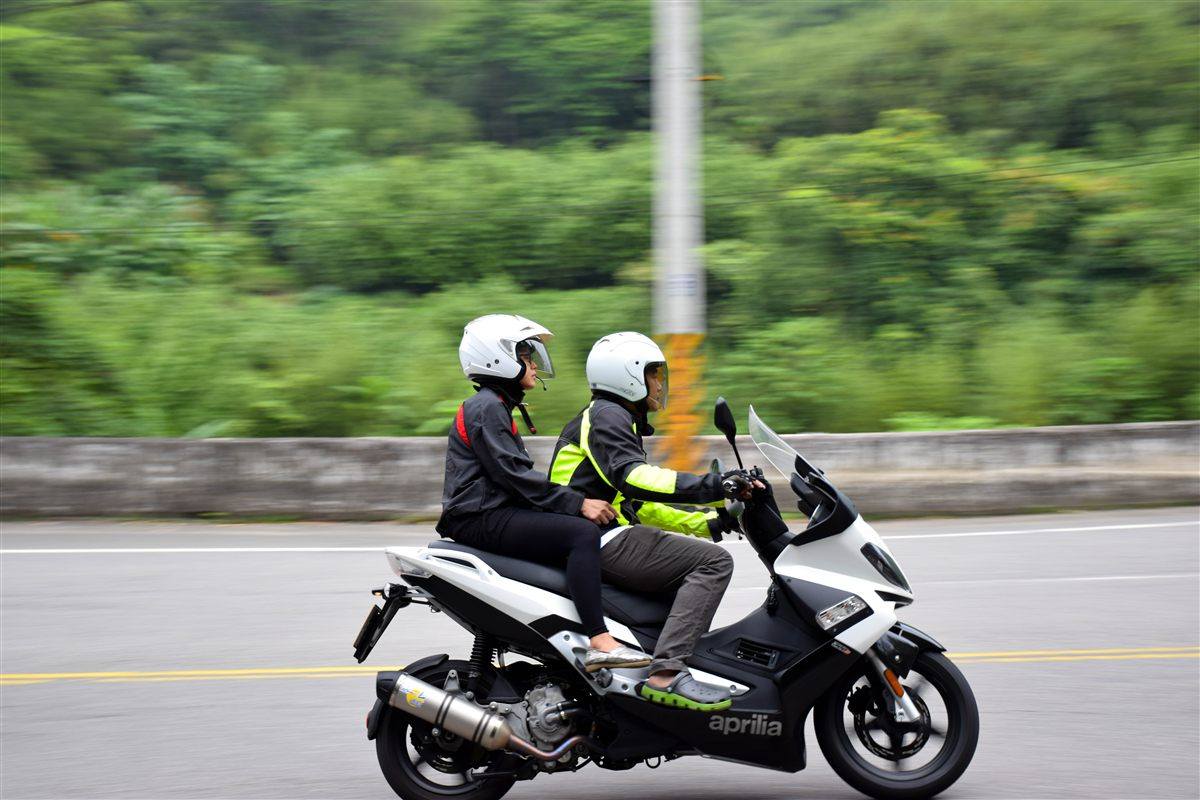

For 2012 and 2013 the SR Max 300 carried on essentially unchanged, still built around its 278 cc four-valve injected single and a twin-shock steel chassis. It sold in black or white and remained a practical big-wheel commuter with a sporty edge, sitting between the 125 learner model and Aprilia's larger maxi-scooters.
