The 2009 Factory kept the 139 hp V60 Magnesium twin with 33 mm exhaust valves and close-coupled catalysts, and it again paired it with fully…

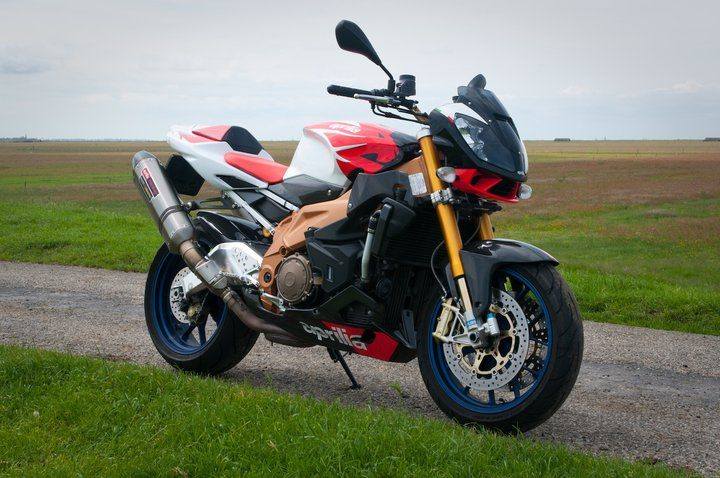

| MODEL | APRILIA TUONO 1000 R FACTORY 2009 |
| Year | 2009 |
| Engine Type | Four-stroke, longitudinal 60° V-twin (V60 Magnesium), DOHC, 4 valves per cylinder |
| Displacement / Capacity | 997.6 cc / 60.9 cu in |
| Bore X Stroke | 97 x 67.5 mm / 3.82 x 2.66 in |
| Compression Ratio | 11.8:1 |
| Cooling System | Liquid cooled |
| Max Power | 102 kW / 139 hp @ 9500 rpm |
| Max Torque | 107 Nm / 78.9 lb-ft @ 8500 rpm |
| Ignition | Digital electronic, one spark plug per cylinder, integrated with the injection system |
| Induction | Indirect multipoint electronic fuel injection, 57 mm throttle bodies |
| Start System | Electric |
| TRANSMISSION SPECS | |
| Lubrication | Dry sump with separate oil reservoir, double trochoidal pump, oil cooler |
| Gear Box | 6-speed |
| Clutch | Multi-plate wet clutch with PPC power-assisted hydraulic control |
| Final Drive | Chain, 40/16 |
| CHASSIS SPECS | |
| Frame | Aluminium alloy box-section sloping twin-spar |
| Front Suspension | Öhlins Racing 43 mm upside-down fork, fully adjustable (preload, compression, rebound), 120 mm / 4.7 in travel |
| Rear Suspension | Aluminium double-banana swingarm, APS rising-rate linkage, Öhlins Racing piggy-back monoshock, fully adjustable, 133 mm / 5.2 in travel |
| Front Brakes | 2 x 320 mm floating stainless steel discs, Brembo radial 4-piston (34 mm) calipers, braided lines |
| Rear Brakes | Single 220 mm stainless steel disc, 2-piston (32 mm) caliper, braided line |
| DIMENSION SPECS | |
| Overall Length | 2025 mm / 79.7 in |
| Overall Width | 830 mm / 32.7 in |
| Overall Height | 1100 mm / 43.3 in |
| Seat Height | 810 mm / 31.9 in |
| Wheelbase | 1410 mm / 55.5 in |
| Ground Clearance | 99 mm / 3.9 in |
| Dry Weight | 181 kg / 399 lbs |
| Wet Weight | — |
| WHEEL SPECS | |
| Front Tyre | 120/70 ZR17 |
| Rear Tyre | 190/55 ZR17 (190/50 ZR17 and 180/55 ZR17 approved) |
| FUEL SYSTEM | |
| Fuel Capacity | 18 Litres / 4.8 US gal (incl. 4 L / 1.1 US gal reserve) |
| Fuel Consumption | — |
| Top Speed | 252.3 km/h / 156.7 mph |
The 2009 Factory kept the 139 hp V60 Magnesium twin with 33 mm exhaust valves and close-coupled catalysts, and it again paired it with fully adjustable Öhlins suspension, forged wheels and carbon and magnesium parts. Aprilia's 2009 material lists Dream Black as the only Factory colour. It was the track-focused top of the Tuono range in the V-twin's final years.
