Aprilia

APRILIA TUONO V4 1100 RR 2015 - 2016

The 2015 Tuono V4 1100 RR replaced the 1000 cc V4 R APRC with a bored-out 1077 cc engine, lifting peak output to 175 hp and filling in the midrange.

APRILIA TUONO V4 1100 RR 2015 - 2016

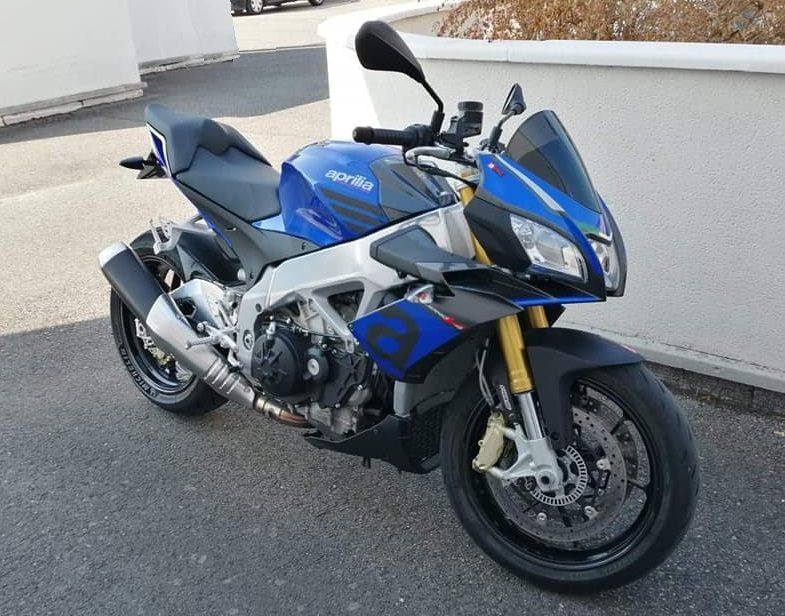

APRILIA TUONO V4 1100 RR 2015 - 2016 · Photo: O-Lionel-O, CC0, via Wikimedia Commons
Spec sheet
MODELAPRILIA TUONO V4 1100 RR 2015 - 2016
Year2015 - 2016
Engine TypeFour stroke, longitudinal 65° V4, DOHC, 4 valves per cylinder
Displacement / Capacity1077 cc / 65.7 cu in
Bore X Stroke81 x 52.3 mm
Compression Ratio—
Cooling SystemLiquid cooled
Max Power129 kW / 175 hp @ 11000 rpm
Max Torque120 Nm / 12.2 kgf-m / 88.5 lb-ft @ 9000 rpm
IgnitionMagneti Marelli digital electronic ignition integrated in engine control, one spark plug per cylinder, stick-coil type
InductionFuel injection, 4 Weber-Marelli 48 mm throttle bodies, 4 injectors, ride-by-wire, 3 maps (T, S, R)
Start SystemElectric
TRANSMISSION SPECS
LubricationWet sump with oil radiator and two oil pumps (lubrication and cooling)
Gear Box6 speed cassette type with Aprilia Quick Shift (AQS)
Clutch—
Final DriveChain, 42/16
CHASSIS SPECS
FrameAluminium dual beam chassis with pressed and cast sheet elements, Sachs steering damper
Front Suspension43 mm Sachs upside-down fork, fully adjustable preload, compression and rebound, 120 mm wheel travel
Rear SuspensionDouble braced aluminium swingarm, Sachs monoshock with piggy-back, fully adjustable, 130 mm wheel travel
Front Brakes2 x 320 mm floating stainless steel discs, Brembo M432 monobloc radial calipers, 4 x 32 mm pistons, Bosch 9MP ABS
Rear BrakesSingle 220 mm disc, Brembo floating caliper, 2 x 32 mm pistons
DIMENSION SPECS
Overall Length—
Overall Width—
Overall Height1090 mm / 42.9 in
Seat Height825 mm / 32.5 in
Wheelbase—
Ground Clearance—
Dry Weight184 kg / 405 lbs
Wet Weight—
WHEEL SPECS
Front Tyre120/70 ZR17
Rear Tyre190/55 ZR17
FUEL SYSTEM
Fuel Capacity18.5 Litres / 4.9 US gal
Fuel Consumption—
Top Speed—
Photo gallery
APRILIA TUONO V4 1100 RR 2015 - 2016

Photo: O-Lionel-O, CC0, via Wikimedia Commons

Aprilia file

The 2015 Tuono V4 1100 RR replaced the 1000 cc V4 R APRC with a bored-out 1077 cc engine, lifting peak output to 175 hp and filling in the midrange. Aprilia also sharpened the steering geometry and fitted a slightly longer swingarm, so the bike turns in more eagerly without losing stability at speed. The RR is the more affordable of the two versions, using fully adjustable Sachs suspension where the Factory gets Öhlins, but it shares the same third-generation APRC electronics, quickshifter and three-level race ABS.
