| MODEL | BMW F 650 CS SCARVER 2002 |
| Year | 2002 |
| Engine Type | Four stroke, single cylinder, DOHC, 4 valves per cylinder |
| Displacement / Capacity | 652 cc / 39.8 cu in |
| Bore X Stroke | 100 x 83 mm |
| Compression Ratio | 11.5:1 |
| Cooling System | Liquid cooled |
| Max Power | 37.3 kW / 50 hp @ 6800 rpm |
| Max Torque | 62.3 Nm / 6.4 kgf-m / 46 lb-ft @ 5500 rpm |
| Ignition | Electronic, integrated with BMW engine management |
| Induction | Electronic fuel injection / BMW engine management |
| Start System | Electric |
| TRANSMISSION SPECS | |
| Lubrication | — |
| Gear Box | 5-speed |
| Clutch | Multi-plate in oil bath |
| Final Drive | Toothed belt |
| CHASSIS SPECS | |
| Frame | Steel bridge frame |
| Front Suspension | 41 mm telescopic fork with integral brace, 125 mm / 4.9 in travel |
| Rear Suspension | Aluminium single-sided swingarm, central shock with progressive linkage, 120 mm / 4.7 in travel |
| Front Brakes | Single 300 mm disc, 2-piston floating caliper |
| Rear Brakes | Single 240 mm disc, 1-piston floating caliper |
| DIMENSION SPECS | |
| Overall Length | 2142 mm / 84.3 in |
| Overall Width | 915 mm / 36 in |
| Overall Height | 1158 mm / 45.6 in |
| Seat Height | 780 mm / 30.7 in |
| Wheelbase | 1493 mm / 58.8 in |
| Ground Clearance | — |
| Dry Weight | 170 kg / 374 lbs |
| Wet Weight | 187 kg / 412 lbs |
| WHEEL SPECS | |
| Front Tyre | 110/70 ZR17 |
| Rear Tyre | 160/60 ZR17 |
| FUEL SYSTEM | |
| Fuel Capacity | 15 Litres / 4 US gal |
| Fuel Consumption | 4.5 L/100 km / 62 US mpg |
| Top Speed | 175 km/h / 108.7 mph |

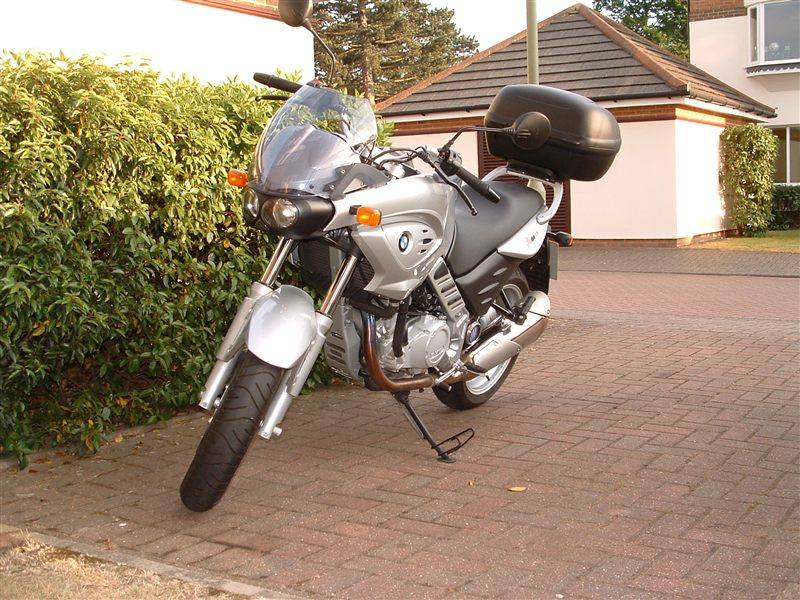

Photo: DaSchick, CC BY 3.0, via Wikimedia Commons

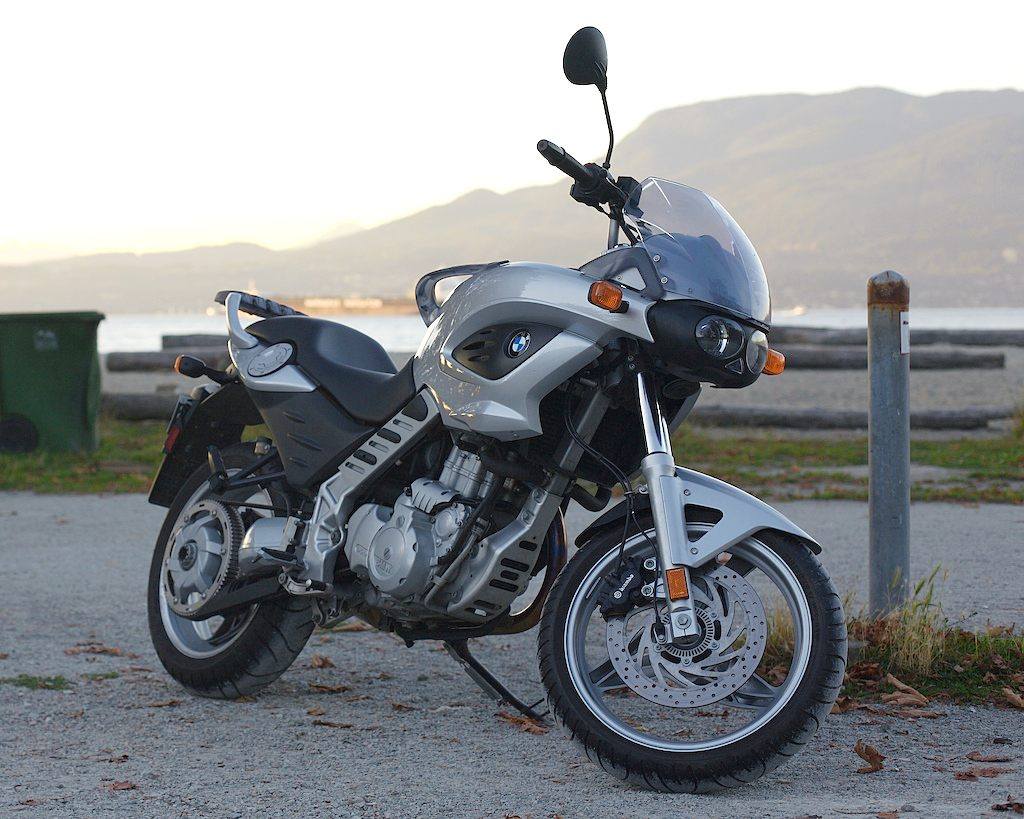

Photo: John Wright, CC BY 2.0, via Wikimedia Commons
2002 was the Scarver's first full season. Mechanically it was the launch bike: injected 652 cc single, five-speed gearbox, belt final drive and 17-inch cast wheels with sport-touring tyres, with ABS available as an option. It targeted newer riders who wanted a light, low-seat BMW for town and back roads.
