| MODEL | BMW F 650 CS SCARVER 2004 |
| Year | 2004 |
| Engine Type | Four stroke, single cylinder, DOHC, 4 valves per cylinder |
| Displacement / Capacity | 652 cc / 39.8 cu in |
| Bore X Stroke | 100 x 83 mm |
| Compression Ratio | 11.5:1 |
| Cooling System | Liquid cooled |
| Max Power | 37.3 kW / 50 hp @ 6800 rpm |
| Max Torque | 62.3 Nm / 6.4 kgf-m / 46 lb-ft @ 5500 rpm |
| Ignition | Dual ignition (twin spark plugs), BMS-C II engine management |
| Induction | Fuel injection |
| Start System | Electric |
| TRANSMISSION SPECS | |
| Lubrication | — |
| Gear Box | 5-speed |
| Clutch | — |
| Final Drive | Toothed belt |
| CHASSIS SPECS | |
| Frame | — |
| Front Suspension | 41 mm telescopic fork with integral brace |
| Rear Suspension | Single-sided swingarm with central shock and progressive linkage |
| Front Brakes | Single 300 mm disc, 2-piston floating caliper |
| Rear Brakes | Single 240 mm disc, 1-piston floating caliper |
| DIMENSION SPECS | |
| Overall Length | 2142 mm |
| Overall Width | 915 mm |
| Overall Height | 1380 mm |
| Seat Height | 780 mm / 30.7 in |
| Wheelbase | 1493 mm |
| Ground Clearance | — |
| Dry Weight | 189 kg / 416.7 lbs |
| Wet Weight | — |
| WHEEL SPECS | |
| Front Tyre | 110/70 ZR17 |
| Rear Tyre | 160/60 ZR17 |
| FUEL SYSTEM | |
| Fuel Capacity | 15 Litres / 4 US gal |
| Fuel Consumption | 4.7 L/100 km / 50 US mpg |
| Top Speed | 178.5 km/h / 110.9 mph |

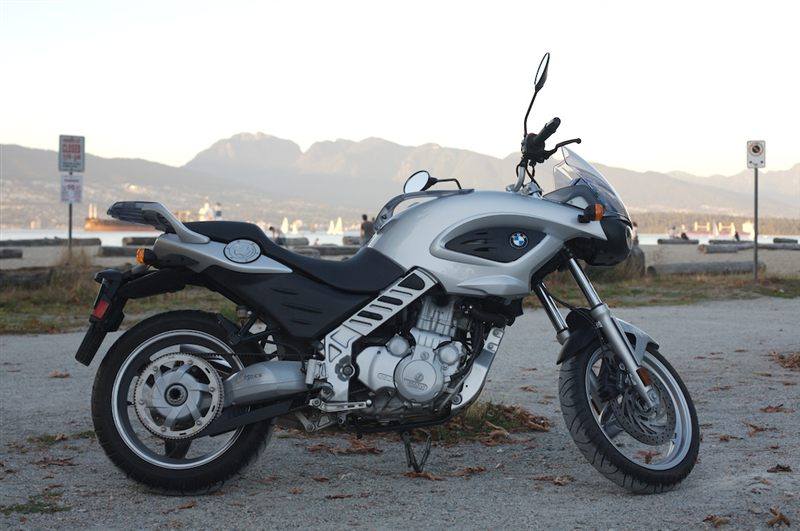

Photo: DaSchick, CC BY 3.0, via Wikimedia Commons

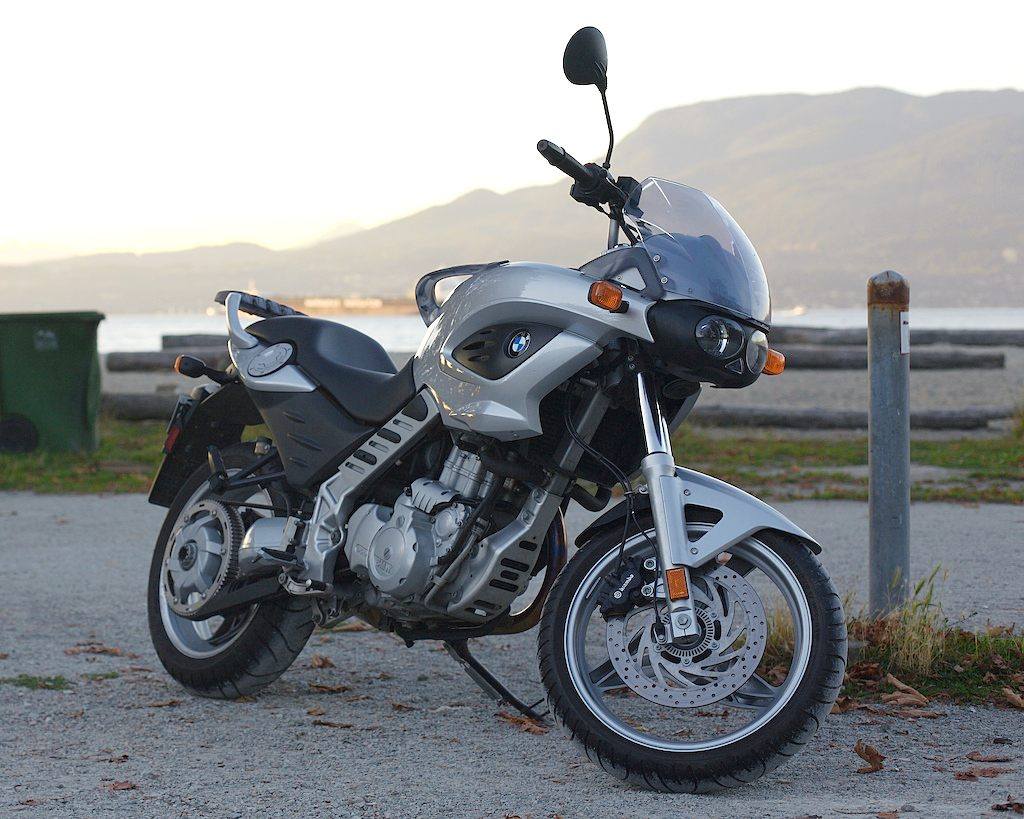

Photo: John Wright, CC BY 2.0, via Wikimedia Commons
For the 2004 model year the Scarver, like every single-cylinder F 650, gained dual ignition with a second spark plug (marked "2 SPARK" on the engine covers) and the new BMS-C II engine management. BMW quoted unchanged peak power and torque but lower fuel use, and the CS also got a standard power socket, a black-tinted screen support and luggage rack, and new colours.
