BMW F 650 Funduro 1994 Specs & Photos

Spec sheet

MODEL	BMW F 650 FUNDURO 1994
Year	1994
Engine Type	Four stroke, single cylinder, DOHC, 4 valves per cylinder
Displacement / Capacity	652 cc / 39.8 cu in
Bore X Stroke	100 x 83 mm
Compression Ratio	9.7:1
Cooling System	Liquid cooled
Max Power	35 kW / 48 hp @ 6500 rpm
Max Torque	57 Nm / 42 lb-ft @ 5200 rpm
Ignition	High voltage capacitor ignition
Induction	2 x 33 mm Mikuni carburettors
Start System	Electric
TRANSMISSION SPECS
Lubrication	Dry sump
Gear Box	5 Speed
Clutch	Multi-plate in oil bath
Final Drive	Chain
CHASSIS SPECS
Frame	Single loop tubular steel with bolt-on trussing
Front Suspension	41 mm telescopic fork, non-adjustable, 170 mm travel
Rear Suspension	Rising rate monoshock, preload adjustable, 165 mm travel
Front Brakes	Single 300 mm disc, 2-piston caliper
Rear Brakes	Single 210 mm disc, 1-piston caliper
DIMENSION SPECS
Overall Length	2180 mm / 86.2 in
Overall Width	880 mm / 34.6 in
Overall Height	1220 mm / 48 in
Seat Height	800 mm / 31.5 in
Wheelbase	1480 mm / 58.3 in
Ground Clearance	180 mm / 7.1 in
Dry Weight	—
Wet Weight	187 kg / 412.3 lbs
WHEEL SPECS
Front Tyre	100/90-19
Rear Tyre	130/80-17
FUEL SYSTEM
Fuel Capacity	17 Litres / 4.5 US gal
Fuel Consumption	5.5 L/100 km / 42.8 US mpg
Top Speed	165.2 km/h / 102.7 mph

Photo gallery

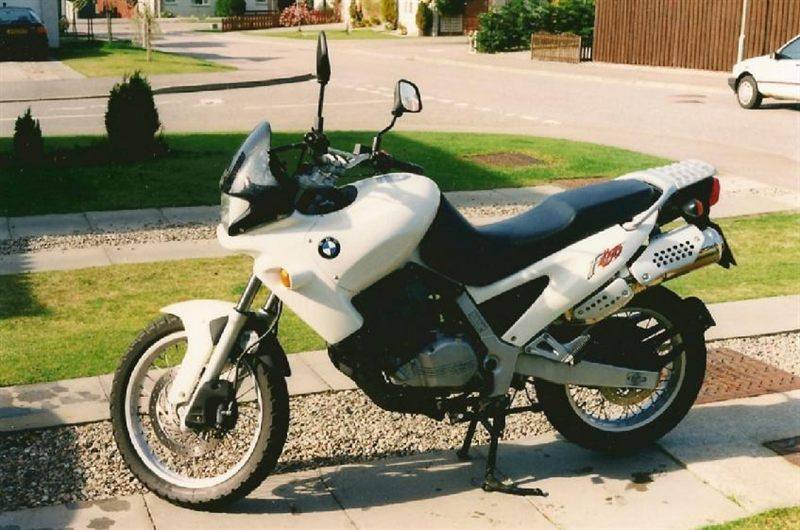

Photo: C Guzzi, CC0, via Wikimedia Commons

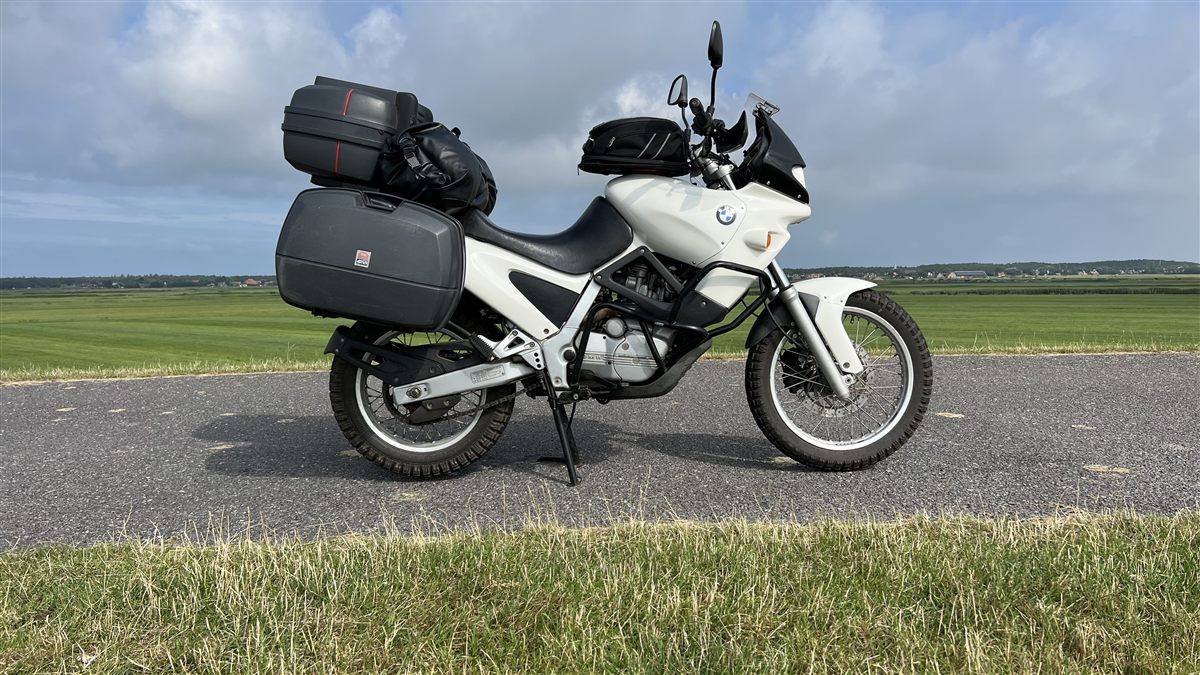

Photo: Trevor692, Public domain, via Wikimedia Commons

BMW file

The F 650 Funduro was BMW's first single-cylinder bike since the 1960s and its first with chain drive, a lower-priced dual-purpose machine built by Aprilia in Italy around a Rotax 652 cc engine. BMW's version of the Pegaso-based design used a four-valve, liquid-cooled head, a plain-bearing crank and a gear-driven balancer. Launched in late 1993 for the 1994 season, it was aimed at new and returning riders, with suspension tuned more for the road than for serious off-road work.
