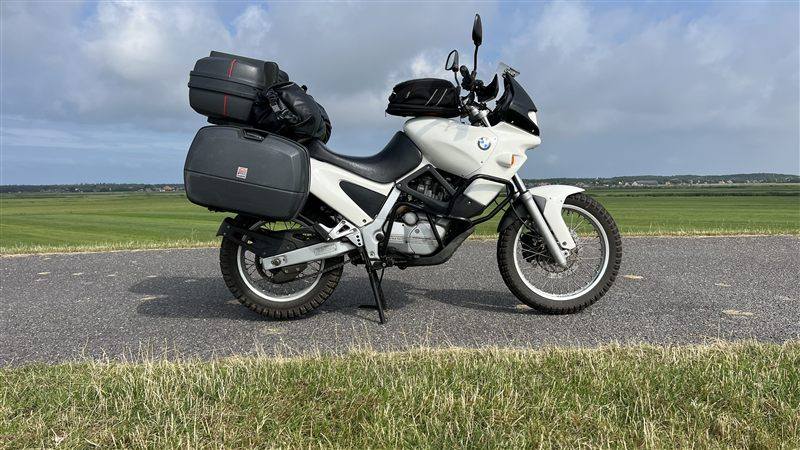

| MODEL | BMW F 650 FUNDURO 1997 |
| Year | 1997 |
| Engine Type | Four stroke, single cylinder, DOHC, 4 valves per cylinder |
| Displacement / Capacity | 652 cc / 39.8 cu in |
| Bore X Stroke | 100 x 83 mm |
| Compression Ratio | 9.7:1 |
| Cooling System | Liquid cooled |
| Max Power | 35 kW / 48 hp @ 6500 rpm |
| Max Torque | 57 Nm / 42 lb-ft @ 5200 rpm |
| Ignition | Digital |
| Induction | 2 x 33 mm Mikuni carburettors |
| Start System | Electric |
| TRANSMISSION SPECS | |
| Lubrication | Dry sump |
| Gear Box | 5 Speed |
| Clutch | Multi-plate in oil bath |
| Final Drive | Chain |
| CHASSIS SPECS | |
| Frame | Single loop tubular steel with bolt-on trussing |
| Front Suspension | 41 mm telescopic fork, non-adjustable, 170 mm travel |
| Rear Suspension | Rising rate monoshock, preload adjustable, 165 mm travel |
| Front Brakes | Single 300 mm disc, 2-piston caliper |
| Rear Brakes | Single 210 mm disc, 1-piston caliper |
| DIMENSION SPECS | |
| Overall Length | 2180 mm / 86.2 in |
| Overall Width | 880 mm / 34.6 in |
| Overall Height | 1220 mm / 48 in |
| Seat Height | 810 mm / 31.9 in |
| Wheelbase | 1480 mm / 58.3 in |
| Ground Clearance | — |
| Dry Weight | 173 kg / 381.4 lbs |
| Wet Weight | 191 kg / 421 lbs |
| WHEEL SPECS | |
| Front Tyre | 100/90-19 |
| Rear Tyre | 130/80-17 |
| FUEL SYSTEM | |
| Fuel Capacity | 17 Litres / 4.5 US gal |
| Fuel Consumption | 5.5 L/100 km / 42.8 US mpg |
| Top Speed | 165.2 km/h / 102.7 mph |
Photo: C Guzzi, CC0, via Wikimedia Commons
Photo: Trevor692, Public domain, via Wikimedia Commons
For 1997 the engine was revised so the Funduro could run on regular-grade petrol, and the bike went on sale in the USA that year. The listed seat height rose slightly to 810 mm and the quoted weights became 173 kg dry and 191 kg wet. Otherwise the Aprilia-built single was unchanged.
