| MODEL | BMW F 650 FUNDURO 1998 |
| Year | 1998 |
| Engine Type | Four stroke, single cylinder, DOHC, 4 valves per cylinder |
| Displacement / Capacity | 652 cc / 39.8 cu in |
| Bore X Stroke | 100 x 83 mm |
| Compression Ratio | 9.7:1 |
| Cooling System | Liquid cooled |
| Max Power | 35 kW / 48 hp @ 6500 rpm |
| Max Torque | 57 Nm / 42 lb-ft @ 5200 rpm |
| Ignition | Digital |
| Induction | 2 x 33 mm Mikuni carburettors |
| Start System | Electric |
| TRANSMISSION SPECS | |
| Lubrication | Dry sump |
| Gear Box | 5 Speed |
| Clutch | Multi-plate in oil bath |
| Final Drive | Chain |
| CHASSIS SPECS | |
| Frame | Single loop tubular steel with bolt-on trussing |
| Front Suspension | 41 mm telescopic fork, non-adjustable, 170 mm travel |
| Rear Suspension | Rising rate monoshock, preload adjustable, 165 mm travel |
| Front Brakes | Single 300 mm disc, 2-piston caliper |
| Rear Brakes | Single 210 mm disc, 1-piston caliper |
| DIMENSION SPECS | |
| Overall Length | 2180 mm / 86.2 in |
| Overall Width | 880 mm / 34.6 in |
| Overall Height | 1220 mm / 48 in |
| Seat Height | 810 mm / 31.9 in |
| Wheelbase | 1480 mm / 58.3 in |
| Ground Clearance | — |
| Dry Weight | 173 kg / 381.4 lbs |
| Wet Weight | 191 kg / 421 lbs |
| WHEEL SPECS | |
| Front Tyre | 100/90-19 |
| Rear Tyre | 130/80-17 |
| FUEL SYSTEM | |
| Fuel Capacity | 17 Litres / 4.5 US gal |
| Fuel Consumption | 5.5 L/100 km / 42.8 US mpg |
| Top Speed | 165.2 km/h / 102.7 mph |

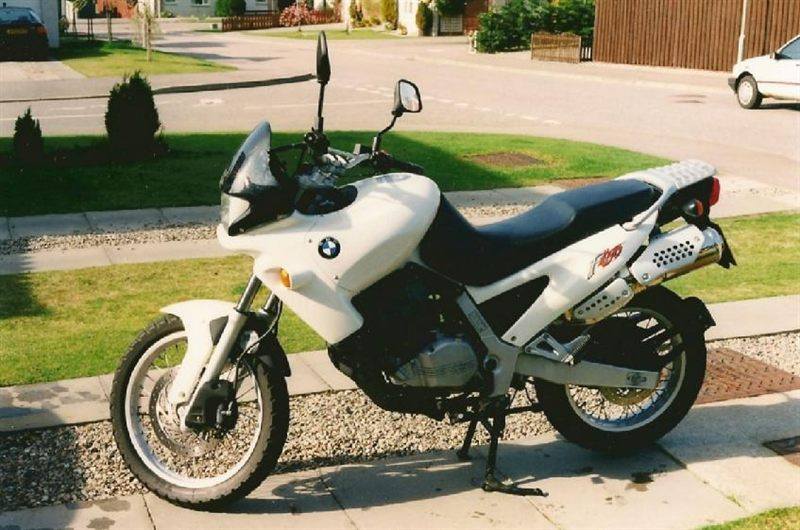

Photo: C Guzzi, CC0, via Wikimedia Commons

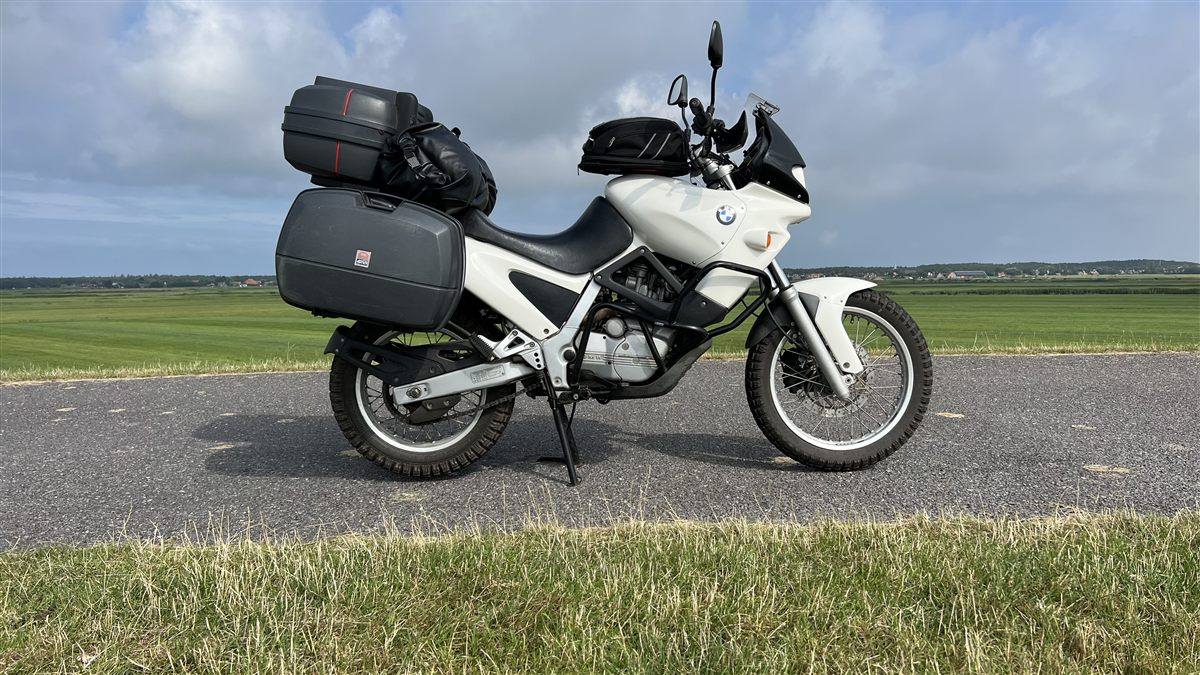

Photo: Trevor692, Public domain, via Wikimedia Commons
The 1998 Funduro carried over the 1997 update without technical change, keeping the regular-fuel engine tune, five-speed gearbox and 19/17-inch wheels. It remained BMW's entry-level dual-purpose bike, sold alongside the F 650 ST Strada.
