| MODEL | BMW F 650 GS 2002 |
| Year | 2002 |
| Engine Type | Four stroke, single cylinder, DOHC, 4 valves per cylinder |
| Displacement / Capacity | 652 cc / 39.8 cu in |
| Bore X Stroke | 100 x 83 mm |
| Compression Ratio | 11.5:1 |
| Cooling System | Liquid cooled |
| Max Power | 37.3 kW / 50 hp @ 6800 rpm |
| Max Torque | 60 Nm @ 5000 rpm |
| Ignition | Capacitor discharge ignition |
| Induction | Fuel injection |
| Start System | Electric |
| TRANSMISSION SPECS | |
| Lubrication | Dry sump |
| Gear Box | 5 speed |
| Clutch | Multi-disc in oil bath, mechanically operated |
| Final Drive | Chain |
| CHASSIS SPECS | |
| Frame | Bridge-type steel section frame with bolted-on rear section |
| Front Suspension | 41 mm telescopic fork with stabilizer bridge, 170 mm / 6.6 in travel |
| Rear Suspension | Spring preload and rebound damping continuously adjustable, 165 mm / 6.4 in travel |
| Front Brakes | Single 300 mm disc, 2-piston caliper |
| Rear Brakes | Single 240 mm disc, 1-piston caliper |
| DIMENSION SPECS | |
| Overall Length | 2175 mm / 85.6 in |
| Overall Width | 910 mm / 35.8 in |
| Overall Height | 1265 mm / 49.8 in |
| Seat Height | 780 mm / 30.7 in |
| Wheelbase | 1479 mm / 58.2 in |
| Ground Clearance | — |
| Dry Weight | 176 kg / 388 lbs |
| Wet Weight | 193 kg |
| WHEEL SPECS | |
| Front Tyre | 100/90-19 |
| Rear Tyre | 130/80-17 |
| FUEL SYSTEM | |
| Fuel Capacity | 17.3 Litres / 4.6 US gal |
| Fuel Consumption | 3.4 L/100 km @ 90 km/h, 5.0 L/100 km @ 120 km/h |
| Top Speed | 166 km/h |

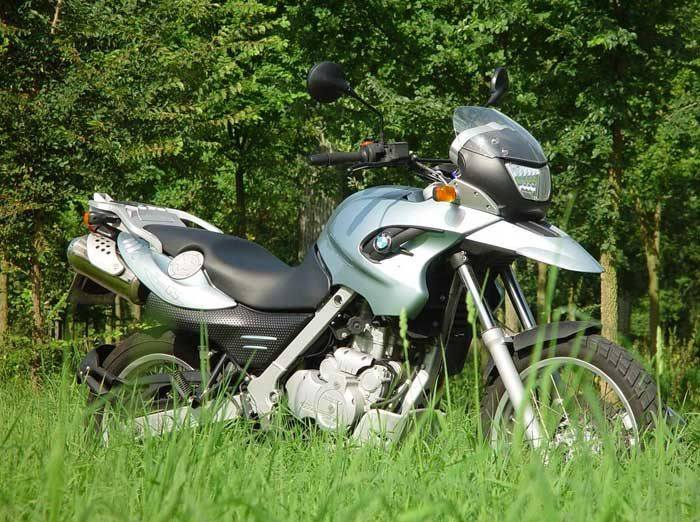

The 2002 F 650 GS carried on mechanically unchanged, with the 652 cc four-valve single, five-speed gearbox, chain drive and small upper fairing, plus new colours for the year. BMW also listed a lower-powered 34 bhp version for markets with restricted licence classes.
