| MODEL | BMW F 800 GS 2013 |
| Year | 2013 |
| Engine Type | Liquid-cooled, four-stroke parallel twin, DOHC, 4 valves per cylinder |
| Displacement / Capacity | 798 cc / 48.7 cu in |
| Bore X Stroke | 82 x 75.6 mm / 3.23 x 2.98 in |
| Compression Ratio | 12.0:1 |
| Cooling System | Liquid cooled |
| Max Power | 63 kW / 85 hp @ 7500 rpm |
| Max Torque | 83 Nm / 61 lb-ft @ 5750 rpm |
| Ignition | Digital engine management (BMS-K+) |
| Induction | Electronic intake pipe injection |
| Start System | Electric |
| TRANSMISSION SPECS | |
| Lubrication | Dry sump |
| Gear Box | 6-speed constant mesh, integrated in crankcase |
| Clutch | Multi-plate wet clutch, mechanically operated |
| Final Drive | Endless O-ring chain with shock damping in rear hub |
| CHASSIS SPECS | |
| Frame | Tubular steel space frame, load-bearing engine |
| Front Suspension | 45 mm upside-down telescopic fork, 230 mm / 9.1 in travel |
| Rear Suspension | Cast aluminium dual swingarm, WAD strut, hydraulically adjustable spring preload, adjustable rebound damping, 215 mm / 8.5 in travel |
| Front Brakes | 2 x 300 mm floating discs, 2-piston floating calipers, ABS (standard) |
| Rear Brakes | Single 265 mm disc, single-piston floating caliper, ABS (standard) |
| DIMENSION SPECS | |
| Overall Length | 2320 mm / 91.3 in |
| Overall Width | 945 mm / 37.2 in (incl. mirrors) |
| Overall Height | 1350 mm / 53.1 in (excl. mirrors) |
| Seat Height | 880 mm / 34.6 in (options 820 - 920 mm / 32.3 - 36.2 in) |
| Wheelbase | 1578 mm / 62.1 in |
| Ground Clearance | — |
| Dry Weight | 191 kg / 421 lbs |
| Wet Weight | 214 kg / 472 lbs (road ready, fully fuelled) |
| WHEEL SPECS | |
| Front Tyre | 90/90-21 54V |
| Rear Tyre | 150/70-17 69V |
| FUEL SYSTEM | |
| Fuel Capacity | 16 Litres / 4.2 US gal |
| Fuel Consumption | 3.8 L/100 km at 90 km/h; 5.2 L/100 km at 120 km/h |
| Top Speed | Over 200 km/h / 125 mph |

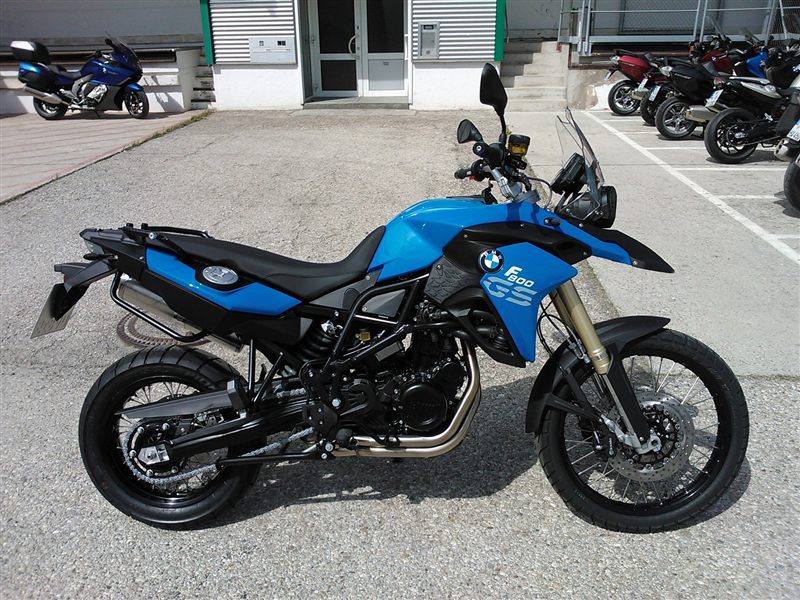

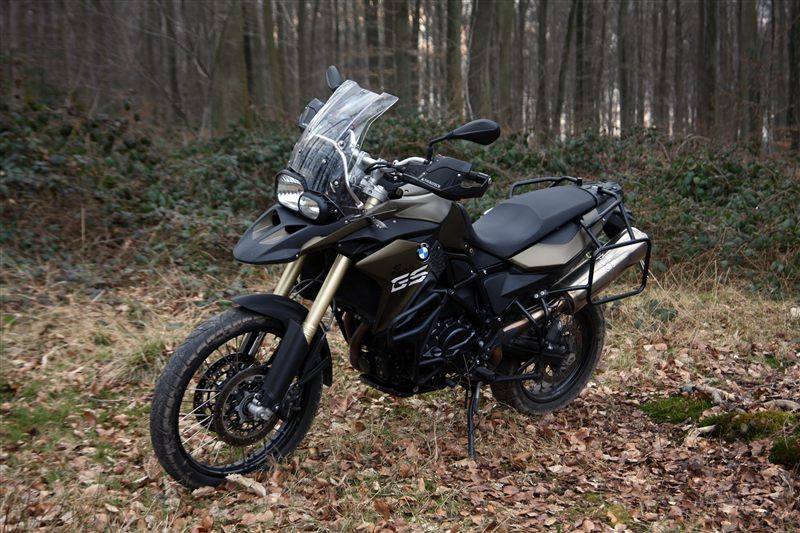

Photo: Amaury Laparra, CC BY-SA 3.0, via Wikimedia Commons

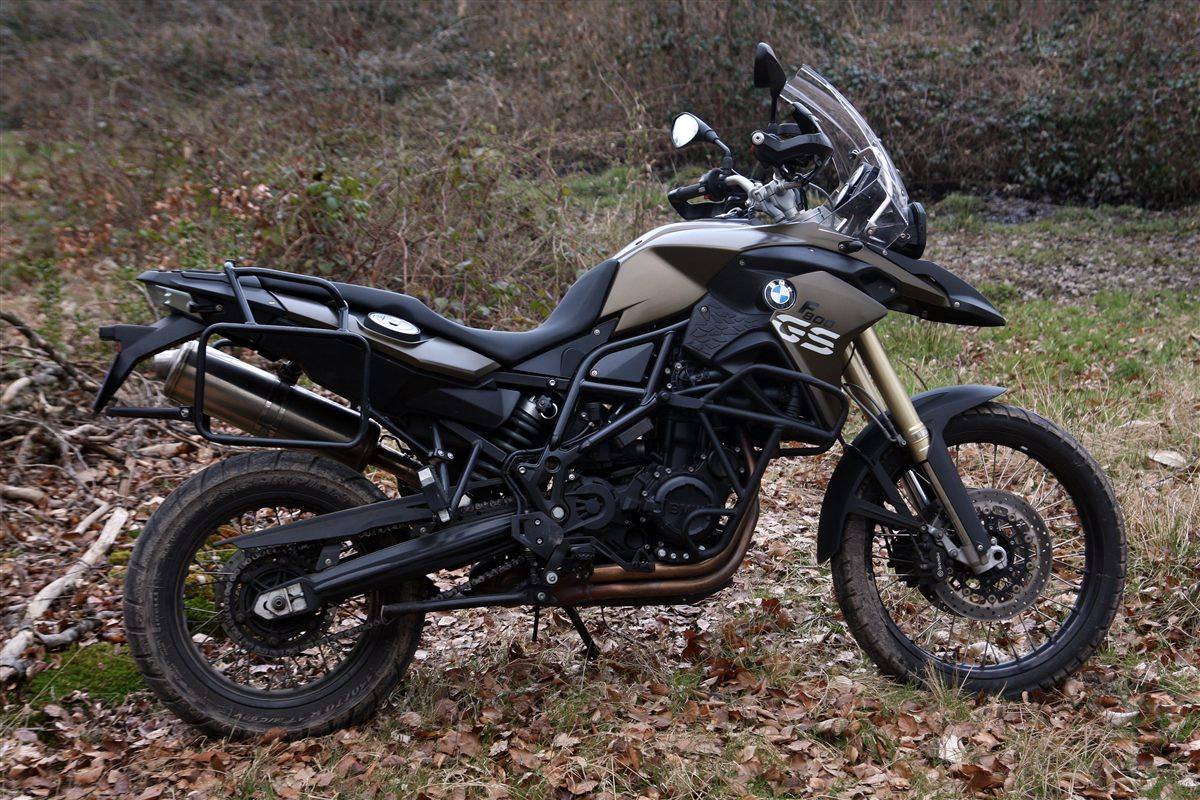

Photo: Euvau, CC BY-SA 3.0, via Wikimedia Commons
Model year 2013 was the first real update for the F 800 GS. The 2013 facelift introduced standard switchable two-channel ABS, optional ESA (rear rebound damping selectable Comfort/Normal/Sport) and optional ASC traction control, a factory lowered suspension (820 mm seat with the low seat), more compact switchgear, new instrument dials showing fuel level and coolant temperature, and reworked bodywork (tank trims, intake snorkel, upper mudguard, windscreen, smoke-grey indicators and tail light). Power stayed at 85 hp but the bike grew heavier, at 214 kg road-ready. The update arrived alongside the new F 700 GS and the F 800 GS Adventure.
