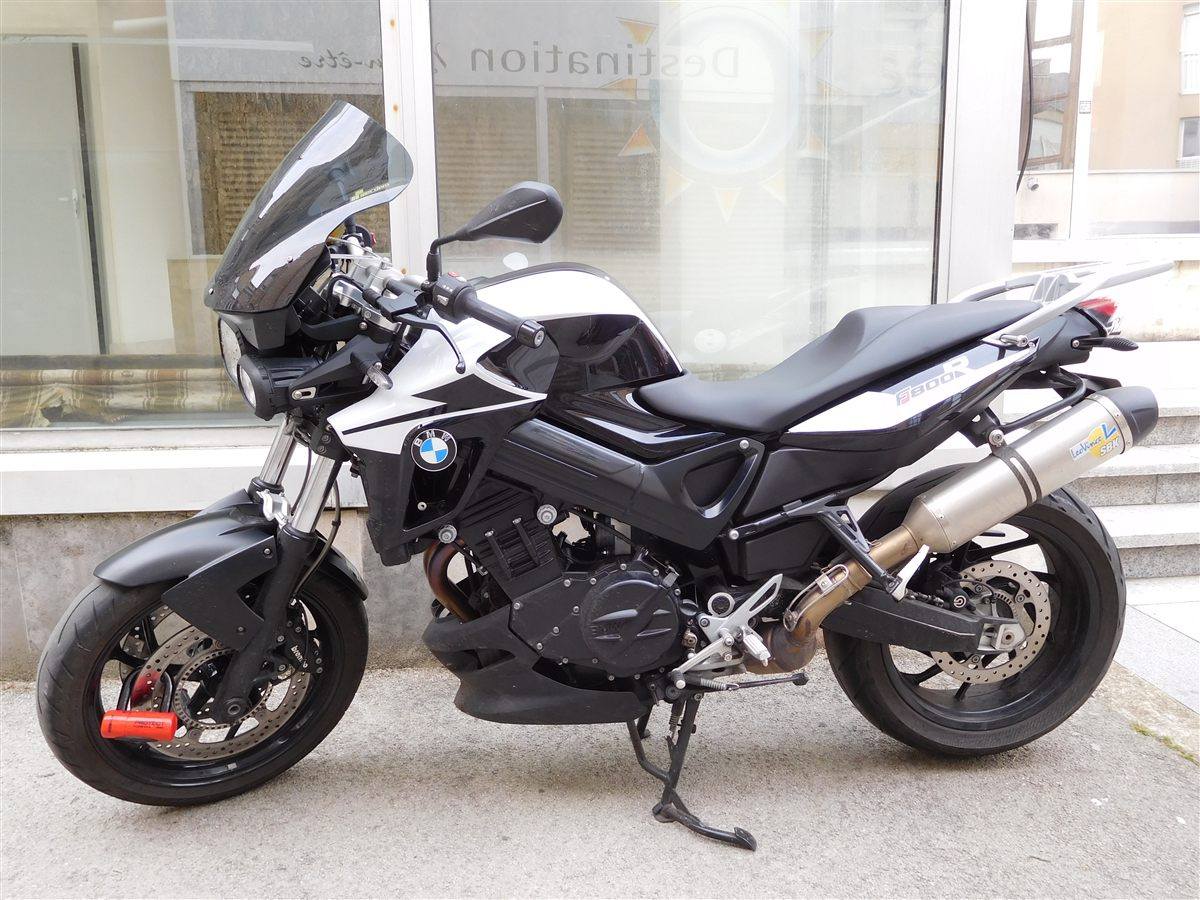

| MODEL | BMW F 800 R 2016 |
| Year | 2016 |
| Engine Type | Four stroke, parallel twin, DOHC, 4 valves per cylinder |
| Displacement / Capacity | 798 cc / 48.7 cu in |
| Bore X Stroke | 82 x 75.6 mm / 3.23 x 2.98 in |
| Compression Ratio | 12.0:1 |
| Cooling System | Liquid cooled |
| Max Power | 66 kW / 90 hp @ 8000 rpm |
| Max Torque | 86 Nm / 63.4 lb-ft @ 5800 rpm |
| Ignition | — |
| Induction | Electronic fuel injection |
| Start System | Electric |
| TRANSMISSION SPECS | |
| Lubrication | Dry sump |
| Gear Box | 6 Speed |
| Clutch | Multi-plate clutch in oil bath, mechanically operated |
| Final Drive | Chain |
| CHASSIS SPECS | |
| Frame | Aluminium frame |
| Front Suspension | 45 mm upside-down fork, 125 mm / 4.9 in travel |
| Rear Suspension | Aluminium twin-sided swingarm, single shock, adjustable preload and rebound damping, 125 mm / 4.9 in travel |
| Front Brakes | Brembo 2 x 320 mm discs, 4-piston calipers, ABS standard |
| Rear Brakes | Single 265 mm disc, 1-piston floating caliper, ABS standard |
| DIMENSION SPECS | |
| Overall Length | 2145 mm / 84.4 in |
| Overall Width | 860 mm / 33.9 in |
| Overall Height | 1235 mm / 48.6 in |
| Seat Height | 790 mm / 31.1 in (low seat 770 mm / 30.3 in, high seat 820 mm / 32.3 in) |
| Wheelbase | 1526 mm / 60.1 in |
| Ground Clearance | — |
| Dry Weight | 177 kg / 390 lbs |
| Wet Weight | 202 kg / 445 lbs |
| WHEEL SPECS | |
| Front Tyre | 120/70 ZR17 |
| Rear Tyre | 180/55 ZR17 |
| FUEL SYSTEM | |
| Fuel Capacity | 15 Litres / 4.0 US gal (approx. 3 L reserve) |
| Fuel Consumption | 65 US mpg (highway) |
| Top Speed | 200 km/h / 124 mph |
The 2016 F 800 R was a carry-over of the 2015 facelift, keeping the 90 hp twin, 45 mm upside-down fork, radial front brakes and standard ABS. Nothing significant changed from the previous year.
