| Year | 2017 |
| Engine | Four stroke, two cylinder horizontally opposed Boxer, DOHC, 4 valves per cylinder |
| Capacity | 1170 cc / 71.4 cub in |
| Bore x Stroke | 101 x 73 mm |
| Cooling System | Liquid / Air cooled |
| Compression Ratio | 12.5:1 |
| Induction | Throttle valve mm 52 . Carburetion BMS-X. Emission control Closed-loop 3-way catalytic converter |
| Ignition | BMS-K |
| Battery | 12 V / 11,8 Ah, maintenance-free |
| Starting | Electric |
| Headlight | H7W / LED (SA) |
| Max Power | 92 kW / 125 hp @ 7750 rpm . 125 Nm / 12.7 kgf-m / 92 lb-ft @ 6500 rpm |
| Clutch | Oil lubricated clutch, hydraulically operated |
| Transmission | Constant mesh 6-speed gearbox with helical gear teeth |
| Frame | Two-section frame, front- and bolted on rear frame, load-bearing engine |
| Front Suspension | Telescopic Upside-Down fork; stanchion diameter 45 mm |
| Front Wheel | 140 mm / 5.5 in |
| Rear Wheel | 140 mm / 5.5 in |
| Rear Suspension | Cast aluminium single-sided swing arm with BMW Motorrad Paralever; WAD strut (travel-related damping), spring pre-load / hydraulically adjustable (continuously variable) at handwheel, rebound damping adjustable at handwheel. |
| Front Brakes | 2 X 320 floating discs 4 piston calipers |
| Rear Brakes | Single 275mm disc 2 piston caliper |
| ABS | BMW Motorrad Integral ABS (part-integral), disengageable |
| Front Tyre | 120/70 ZR 17 |
| Rear Tyre | 180/55 ZR 17 |
| Fuel | Premium unleaded |
| Fuel Capacity | 18 Litres |
| Fuel Reserve | 4 Litres |

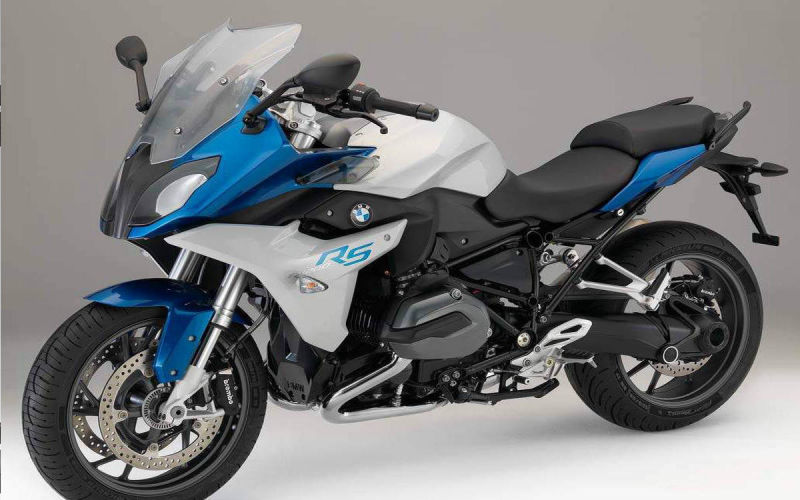

The R 1200 RS will be supplied in new paint finishes as from the 2017 model . With a view to enhanced motorcycling safety, its range of special equipment features is extended to include the banking-optimised ABS Pro and the dynamic brake light (both in conjunction with the Riding Modes Pro option). An overview of the new colours of the R 1200 RS. The variant previously referred to as “Style 2” is now renamed “R 1200 RS Sport” in the colour combination Light White metallic / Magellan Grey metallic matt. The previous paint finish Granite Grey metallic matt (Style 2) is no longer available. Riding dynamics coupled with touring suitability – at the very highest level that’s the R 1200 RS. With its potent engine and stable suspension, the sports touring bike offers more than just a huge amount of riding pleasure. Thanks to its relaxed, sporty seating position and its perfect wind and weather protection, the bike offers an entirely new ride feel when travelling fast and riding along country roads in sporty style. Performance meets design The modern concept of a dynamic blend of sports and touring motorcycle is demonstrated visually too, by means of half fairing featuring symmetrical headlamps derived from two generations of the RR. The elegantly shaped handlebar unit with attached forged aluminium section perfectly combines function and ergonomics. The elegant and fast travel companion. The new sports touring bike derives its supreme power from an output of 92 kW (125 bhp) delivered by an air/liquid-cooled 2-cylinder 4-stroke boxer engine with two overhead spur gear driven camshafts and a counterbalance shaft. In order to ensure stability on every country road, the highly active, electronically regulated suspension ASC (Automatic Stability Control) is featured as standard, rounded off with the modes “Rain” and “Road” – likewise standard – to provide an optimum riding experience. Equipment and accessories add the perfect finishing touch. The extensive range of optional equipment goes from case holders and luggage rack to cruise control and the convenient “Keyless Ride”. The new system case and the practical topcase consummately round off the sports touring bike: perfectly harmonised with the ergonomics and integrated in the motorcycle’s overall look as always, they offer a level of travel comfort you would not normally expect of a sports tourer. The optional equipment riding modes Pro contains ABS Pro and Dynamic Brake Light (homologation in progress). Options/Packages 5AC ABS Pro (cornering-optimized ABS) is now included as part of 224 Ride Modes Pro, which is also included in ZPP Premium Package. Although European models include a Dynamic Brake Light with ABS Pro, this light will not be available in the US market. Colours N1N Light Grey Metallic / Magellan Grey Metallic Matte replaces Granite Grey Metallic Matte and is only offered with 861 Style 1 package.
