2018 BMW R 1200 RT LC FACTORY SPECIFICATIONS
2018 BMW R 1200 RT LC FACTORY SPECIFICATIONS
Spec sheet
MODELBMW R 1200 RT
ENGINE TYPEFour stroke, two cylinder horizontally opposed Boxer, DOHC, 4 valves per cylinder, / Intake 40mm outlet 34 mm
Year2018
Displacement / Capacity1170 cc / 71.4 cub in.
Bore X Stroke101 x 73 mm
Compression Ratio12.5:1
Cooling SystemLiquid / Air cooled
Max Power92 kW / 125 hp @ 7750 rpm
Max Torque125 Nm / 12.7 kgf-m / 92 lb-ft  @ 6500 rpm
IgnitionDigital Engine Management
InductionThrottle valve 52 mm, Carburetion BMS-X /
Start SystemElectric
TRANSMISSION SPECS
Lubrication—
Gear BoxConstant mesh 6-speed gearbox with helical gear teeth
ClutchOil lubricated clutch, hydraulically operated
Primary / Final DriveFinal Drive : Shaft / Primary Drive :
Primary ratio1.65
Gear Ratio1st 2.438 / 2nd 1.714 / 3rd 1.296 / 4th 1.059 / 5th 0.943 / 6th 0.848:1
CHASSIS SPECS
FrameTubular steel frame, engine load-bearing
Front SuspensionBMW Telelever
Rear SuspensionBMW EVO Paralever
BrakesFront Brakes : 2 X 320 floating discs 4 piston calipers / / Rear Brakes : Single 275 mm disc 2 piston caliper / / ABS : BMW Motorrad Integral ABS (part-integral),
Traction Management—
Exhaust SystemEmission control Closed-loop 3-way catalytic converter
DIMENSION SPECS
Overall Length2222 mm / 87.5 in
Seat Height805 mm / 31.5 in - 825 mm / 32.5 in
Overall Height1417 mm / 55.7 in
Overall Width983 mm / 38.7 in
Overall WeightDry Weight - 221 kg / 487 lbs / Wet Weight - 274 kg / 604 lbs / Permitted Weight - 495 kg / 1091 lbs
Wheelbase1485 mm / 58.5 in
Inner Leg Curve—
WHEEL SPECSCast aluminium wheels
Wheels / RimsFront Rim : 3.50 x 17 / Rear Rim : 5.50 x 17 /
Front Tyre120/70 ZR 17
Rear Tyre180/55 ZR 17
Front Wheel Travel120 mm / 4.7 in
Rear Wheel Travel136 mm / 5.4 in
Castor116 mm / 4.56 in
Steering Angle63.6°
FUEL SYSTEMPremium unleaded (95 RON)
Fuel Capacity25 Liters / US 6.6 gal
Fuel Reserve—
Fuel Consumption—
CAPACITIES
Engine oil—
Brake fluid—
Top Speed125 mph / 201.1 kmh
Photo gallery

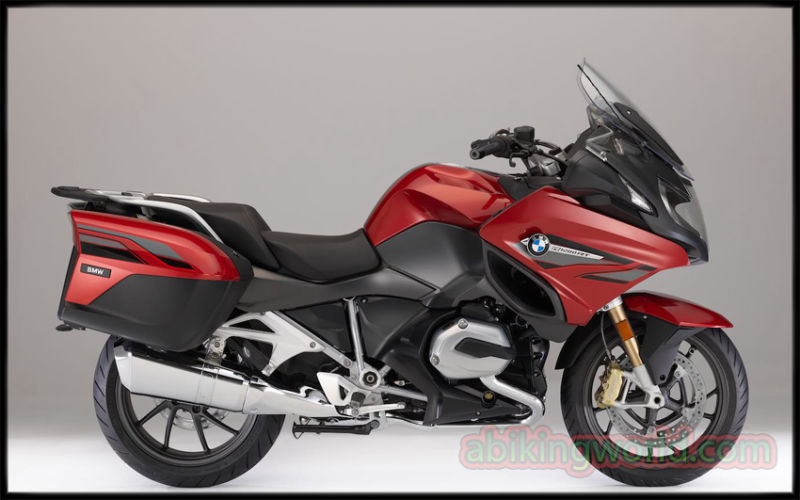

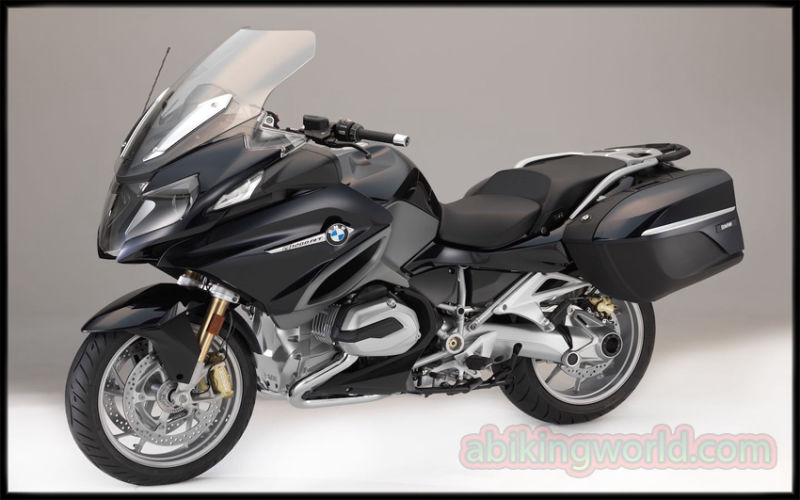

2018 BMW R 1200 RT LC 2018 BMW R 1200 RT LC 2018 BMW R 1200 RT LC 2018 BMW R 1200 RT LC
BMW file

An iconic long-distance tourer, the 2018 BMW R 1200 RT has a classic boxer twin as its centerpiece, albeit updated to feature both liquid- and air-cooling. With a generous wheelbase and rake, the BMW R 1200 RT is a smooth highwayman. The big change for the coast-to-coast sport-touring runner is ABS Pro. Options galore are available for RT purchasers, including Emergency Calling (should you go down unexpectedly) and Dynamic Traction Control (works with Pro riding modes.) To add even a bit more class to this mile churner, BMW has embossed the RT logo on the seat. Key Features •Air/liquid-cooled twin-cylinder boxer engine with a displacement of 1,170 cc. Output 92 kW (125 hp) at 7,750 rpm, maximum torque 125 Nm (92 lb-ft) at 6,500 rpm. •Crankshaft and alternator with increased centrifugal mass for even smoother engine running. •Two riding modes (“Rain” and “Road”) plus Automatic Stability Control (ASC). •Riding mode Pro with “Dynamic” riding mode and Hill Start Control as an option. •Gear Shift Assistant Pro as an option for added comfort and dynamism when changing gear. •New chassis with a continuous frame that is even more agile and more comfortable. •Semi-active suspension Dynamic ESA (Electronic Suspension Adjustment) as an option. •New bodywork in more dynamic design. •Optimised comfort and aerodynamics. •New, adjustable windshield for even better wind and weather protection. •New headlight concept. •LED daytime running light as an option. •Multifunctional instrument cluster with large TFT colour display. •BMW Motorrad Pro onboard computer offering a wide range of information. •Innovative audio controls. •New colours. •Optional extras and special accessories made to BMW Motorrad’s customary high standards of quality. 2018 BMW R 1200 RT Colors: Carbon Black Metallic Mars Red Metallic/Dark Slate Metallic Matt
