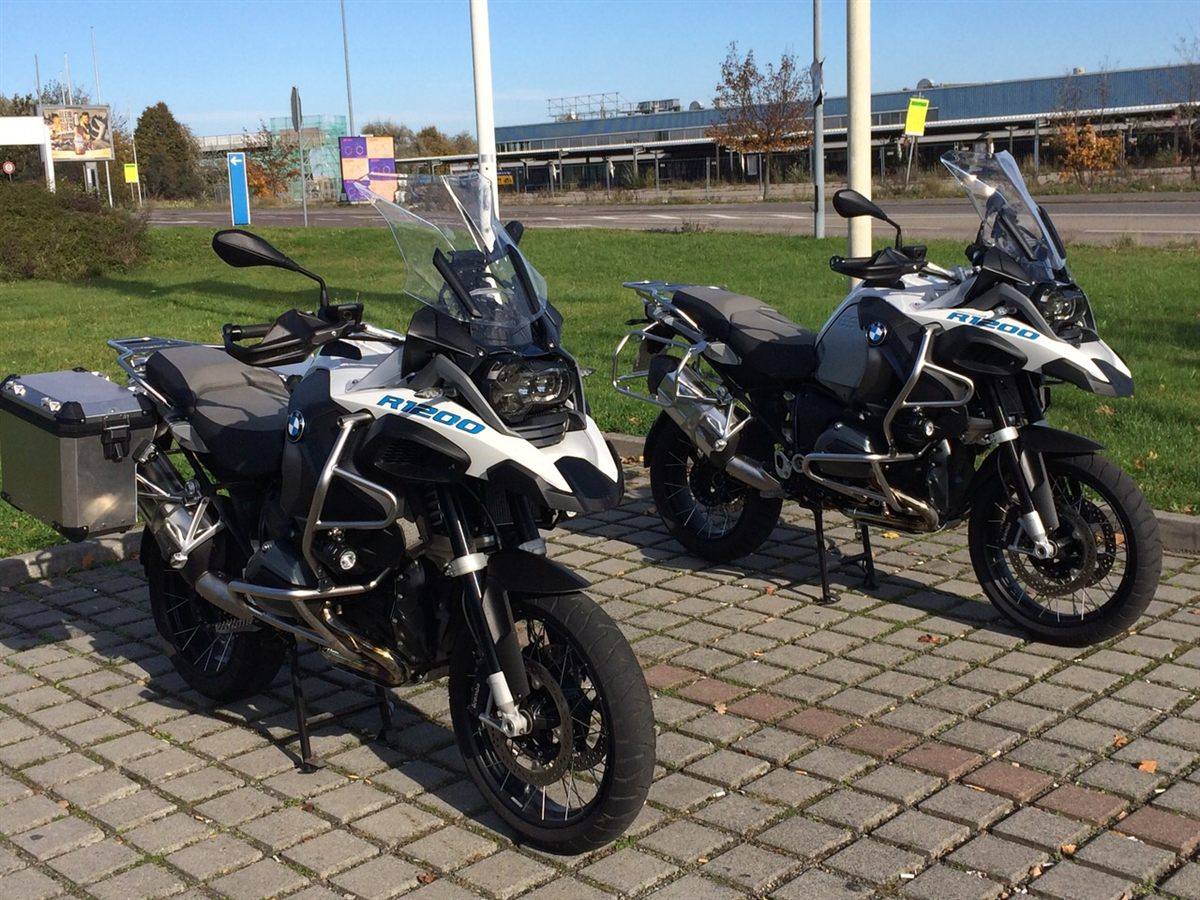

| MODEL | BMW R 1200GS LC ADVENTURE 2014 |
| Year | 2014 |
| Engine Type | Four stroke, two cylinder horizontally opposed Boxer, DOHC, 4 valves per cylinder (intake 40 mm, exhaust 34 mm) |
| Displacement / Capacity | 1170 cc / 71.4 cu in |
| Bore X Stroke | 101 x 73 mm |
| Compression Ratio | 12.5:1 |
| Cooling System | Liquid / air cooled |
| Max Power | 92 kW / 125 hp @ 7750 rpm |
| Max Torque | 125 Nm / 12.7 kgf-m / 92 lb-ft @ 6500 rpm |
| Ignition | BMS-K |
| Induction | BMS-X fuel injection, 52 mm throttle valve |
| Start System | Electric |
| TRANSMISSION SPECS | |
| Lubrication | — |
| Gear Box | 6 Speed |
| Clutch | Anti-hopping wet clutch |
| Final Drive | Shaft, 2.91:1 |
| CHASSIS SPECS | |
| Frame | Tubular steel bridge frame, engine self-supporting |
| Front Suspension | BMW Motorrad Telelever, 37 mm stanchions, central spring strut, 210 mm / 8.3 in travel |
| Rear Suspension | Cast aluminium single-sided swingarm with BMW Motorrad Paralever, WAD strut, hydraulically adjustable preload and adjustable rebound damping, 220 mm / 8.7 in travel |
| Front Brakes | 2 x 305 mm discs, Brembo monobloc calipers, BMW Motorrad Integral ABS (part-integral, disengageable) |
| Rear Brakes | Single 276 mm disc, 2 piston caliper, BMW Motorrad Integral ABS (part-integral, disengageable) |
| DIMENSION SPECS | |
| Overall Length | 2255 mm / 88.8 in |
| Overall Width | 980 mm / 38.6 in |
| Overall Height | 1450 mm / 57.1 in |
| Seat Height | 890 - 910 mm / 35.0 - 35.8 in |
| Wheelbase | 1510 mm / 59.4 in |
| Ground Clearance | 210 mm / 8.3 in |
| Dry Weight | 220 kg / 485 lbs |
| Wet Weight | 260 kg / 573 lbs |
| WHEEL SPECS | |
| Front Tyre | 120/70 R19 |
| Rear Tyre | 170/60 R17 |
| FUEL SYSTEM | |
| Fuel Capacity | 30 Litres / 7.9 US gal (incl. 4 L reserve) |
| Fuel Consumption | 4.3 L/100 km / 55 US mpg @ 90 km/h (56 mph) |
| Top Speed | Over 200 km/h / 124 mph |
The 2014 R 1200 GS Adventure (K51) brought the water-cooled 125 hp boxer to the Adventure, a year after the standard GS. It adds longer suspension travel, more ground clearance, a 30-litre tank, larger screen and crash protection to the LC platform, making it the long-range expedition version of the range.
