| MODEL | BMW R 1200GS LC ADVENTURE 2016 |
| Year | 2016 |
| Engine Type | Four stroke, two cylinder horizontally opposed Boxer, DOHC, 4 valves per cylinder |
| Displacement / Capacity | 1170 cc / 71.4 cu in |
| Bore X Stroke | 101 x 73 mm |
| Compression Ratio | 12.5:1 |
| Cooling System | Liquid / air cooled |
| Max Power | 92 kW / 125 hp @ 7750 rpm |
| Max Torque | 125 Nm / 12.7 kgf-m / 92 lb-ft @ 6500 rpm |
| Ignition | BMS-K |
| Induction | Fuel injection, 52 mm throttle valve, BMS-X engine management |
| Start System | Electric |
| TRANSMISSION SPECS | |
| Lubrication | — |
| Gear Box | 6 Speed |
| Clutch | Anti-hopping wet clutch |
| Final Drive | Shaft |
| CHASSIS SPECS | |
| Frame | Tubular steel bridge frame, engine self-supporting |
| Front Suspension | BMW Motorrad Telelever, 37 mm, central spring strut, 210 mm / 8.3 in travel |
| Rear Suspension | Cast aluminium single-sided swingarm with BMW Motorrad Paralever, WAD strut, hydraulic preload and rebound adjustment by handwheel, 220 mm / 8.7 in travel |
| Front Brakes | 2 x 305 mm discs, BMW Motorrad Integral ABS (part-integral, disengageable) |
| Rear Brakes | Single 276 mm disc, 2-piston caliper, BMW Motorrad Integral ABS |
| DIMENSION SPECS | |
| Overall Length | 2210 mm / 87.0 in |
| Overall Width | 953 mm / 37.5 in |
| Overall Height | 1450 mm / 57.1 in |
| Seat Height | 890 - 910 mm / 35.0 - 35.8 in |
| Wheelbase | 1507 mm / 59.3 in |
| Ground Clearance | — |
| Dry Weight | — |
| Wet Weight | 260 kg / 573 lbs |
| WHEEL SPECS | |
| Front Tyre | 120/70 R19 |
| Rear Tyre | 170/60 R17 |
| FUEL SYSTEM | |
| Fuel Capacity | 30 Litres / 7.9 US gal |
| Fuel Consumption | — |
| Top Speed | — |

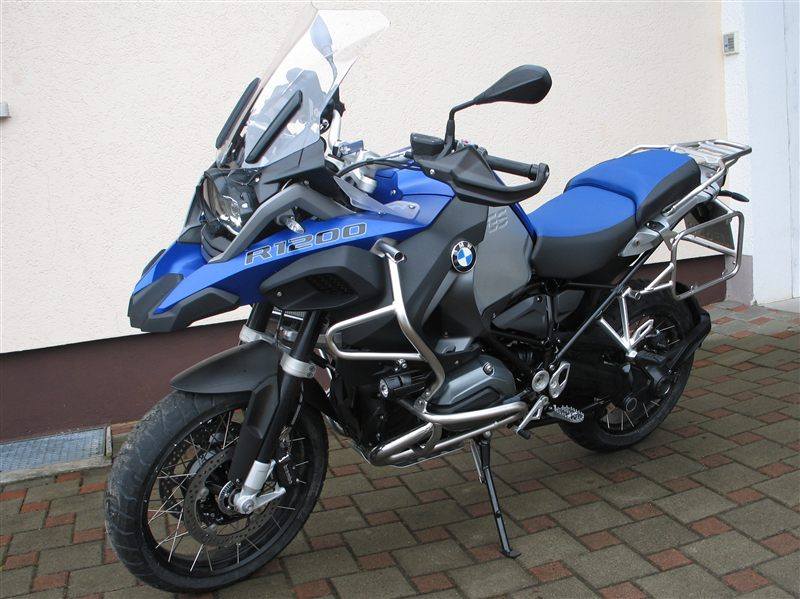

Photo: Muschide, CC BY-SA 4.0, via Wikimedia Commons

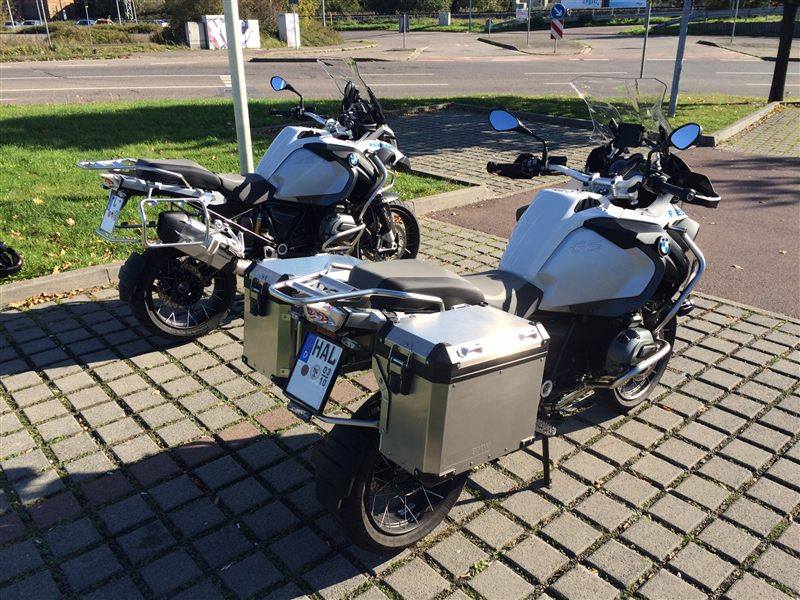

Photo: D-Platoon, CC BY-SA 3.0, via Wikimedia Commons
For 2016 the liquid-cooled GS Adventure continued essentially unchanged, keeping the 125 hp boxer, 30-litre tank, Telelever/Paralever chassis and standard ABS, traction control and two riding modes. Extra riding modes and semi-active suspension remained on the options list.
