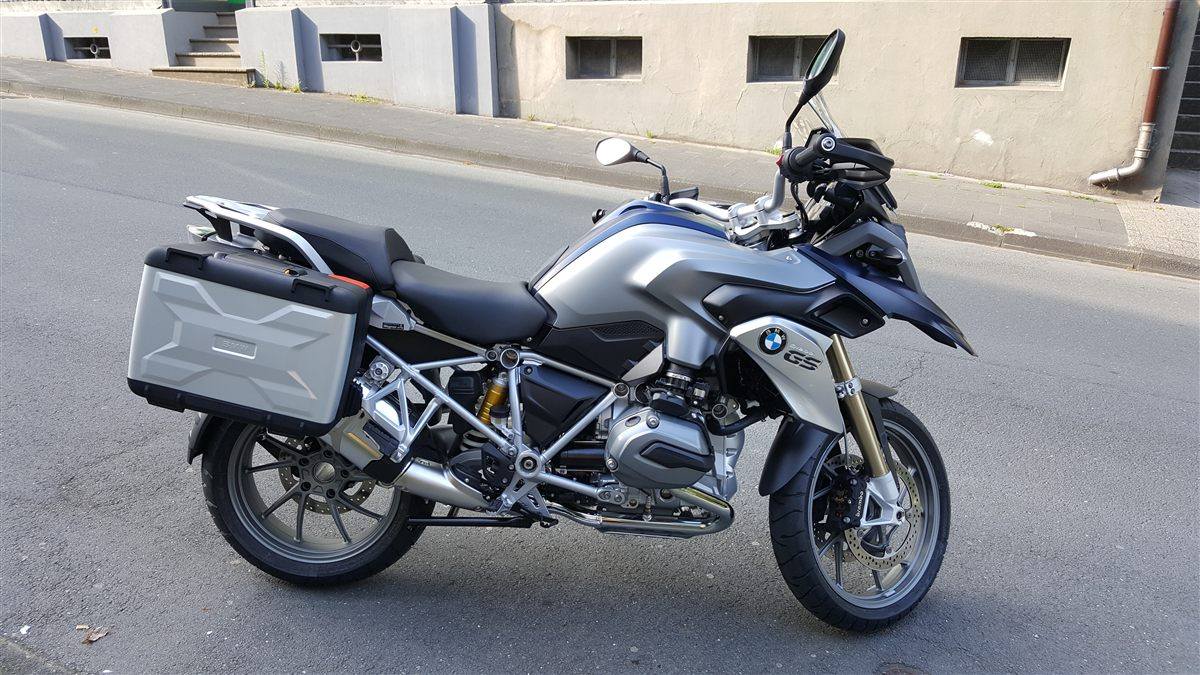

| MODEL | BMW R 1200GS LC ICONIC LIMITED EDITION 2016 |
| Year | 2016 |
| Engine Type | Four stroke, two cylinder horizontally opposed Boxer, DOHC, 4 valves per cylinder (intake 40 mm, exhaust 34 mm) |
| Displacement / Capacity | 1170 cc / 71.4 cu in |
| Bore X Stroke | 101 x 73 mm |
| Compression Ratio | 12.5:1 |
| Cooling System | Liquid / air cooled |
| Max Power | 92 kW / 125 hp @ 7750 rpm |
| Max Torque | 125 Nm / 12.7 kgf-m / 92 lb-ft @ 6500 rpm |
| Ignition | BMS-K |
| Induction | BMS-X fuel injection, 52 mm throttle valve |
| Start System | Electric |
| TRANSMISSION SPECS | |
| Lubrication | — |
| Gear Box | 6 Speed |
| Clutch | Anti-hopping wet clutch |
| Final Drive | Shaft, 2.91:1 |
| CHASSIS SPECS | |
| Frame | Tubular steel bridge frame, engine self-supporting |
| Front Suspension | BMW Motorrad Telelever, 37 mm stanchions, central spring strut, 190 mm / 7.5 in travel |
| Rear Suspension | Cast aluminium single-sided swingarm with BMW Motorrad Paralever, WAD strut, hydraulically adjustable preload and adjustable rebound damping via handwheel, 200 mm / 7.9 in travel |
| Front Brakes | 2 x 305 mm discs, Brembo monobloc calipers, BMW Motorrad Integral ABS (part-integral, disengageable) |
| Rear Brakes | Single 276 mm disc, 2 piston caliper, BMW Motorrad Integral ABS (part-integral, disengageable) |
| DIMENSION SPECS | |
| Overall Length | 2210 mm / 87.0 in |
| Overall Width | 953 mm / 37.5 in |
| Overall Height | 1450 mm / 57.1 in |
| Seat Height | 850 - 870 mm / 33.4 - 34.2 in |
| Wheelbase | 1507 mm / 59.3 in |
| Ground Clearance | — |
| Dry Weight | 205 kg / 452 lbs |
| Wet Weight | 238 kg / 525 lbs |
| WHEEL SPECS | |
| Front Tyre | 120/70 R19 |
| Rear Tyre | 170/60 R17 |
| FUEL SYSTEM | |
| Fuel Capacity | 20 Litres / 5.3 US gal (incl. 4 L reserve) |
| Fuel Consumption | 5.7 L/100 km / 17.6 km/l / 41.4 US mpg |
| Top Speed | 215.4 km/h / 133.8 mph |
Part of BMW Motorrad UK's 'Iconic 100' collection celebrating BMW's centenary in 2016: 100 individually numbered examples each of the R 1200 GS, GS Adventure, RS and RT. The GS Iconic was based on the R 1200 GS TE Alpine and wore rally-style paint recalling BMW's 1980s Dakar bikes, with a red diamond-stitched seat embossed 'Iconic 100'. The changes were cosmetic only.
