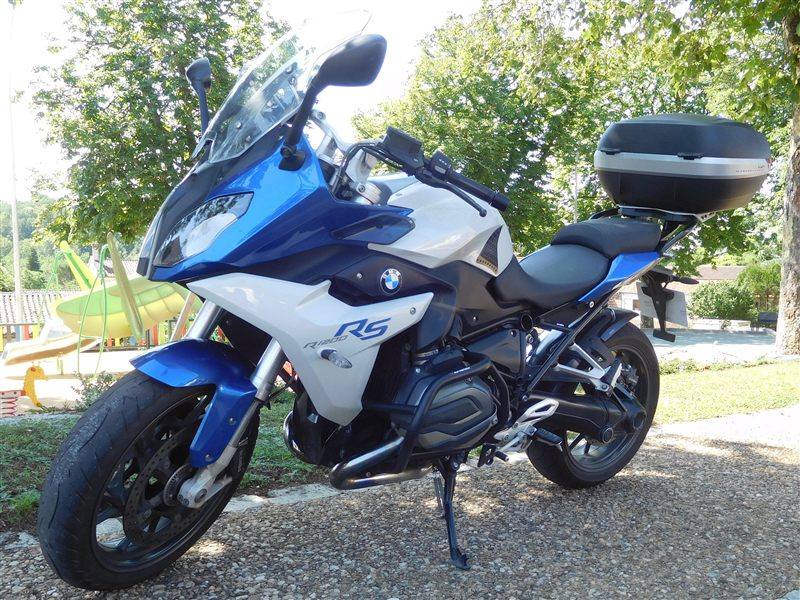

| MODEL | BMW R 1200RS LC 2016 |
| Year | 2016 |
| Engine Type | Four-stroke, two-cylinder horizontally opposed boxer, DOHC, 4 valves per cylinder |
| Displacement / Capacity | 1170 cc / 71.4 cu in |
| Bore X Stroke | 101 x 73 mm |
| Compression Ratio | 12.5:1 |
| Cooling System | Liquid / air cooled |
| Max Power | 92 kW / 125 hp @ 7750 rpm |
| Max Torque | 125 Nm / 12.7 kgf-m / 92 lb-ft @ 6500 rpm |
| Ignition | Electronic, BMS-K |
| Induction | Electronic fuel injection, BMS-X engine management, 52 mm throttle valve |
| Start System | Electric |
| TRANSMISSION SPECS | |
| Lubrication | — |
| Gear Box | Constant-mesh 6-speed with helical gears |
| Clutch | Oil-lubricated (wet) clutch, hydraulically operated |
| Final Drive | Shaft |
| CHASSIS SPECS | |
| Frame | Two-section frame, front frame with bolted-on rear frame, load-bearing engine |
| Front Suspension | 45 mm upside-down telescopic fork, 140 mm / 5.5 in travel |
| Rear Suspension | Cast aluminium single-sided swingarm with BMW Motorrad Paralever, WAD strut, hydraulic preload adjustment and adjustable rebound damping via handwheel, 140 mm / 5.5 in travel |
| Front Brakes | 2 x 320 mm floating discs, 4-piston calipers, BMW Motorrad Integral ABS (part-integral) |
| Rear Brakes | Single 276 mm disc, 2-piston caliper, ABS |
| DIMENSION SPECS | |
| Overall Length | 2202 mm / 86.7 in |
| Overall Width | 925 mm / 36.4 in |
| Overall Height | 1273 mm / 50.1 in |
| Seat Height | 820 mm / 32.3 in (760 - 840 mm / 29.9 - 33.1 in with optional seats) |
| Wheelbase | 1530 mm / 60.2 in |
| Ground Clearance | — |
| Dry Weight | — |
| Wet Weight | 236 kg / 520 lbs |
| WHEEL SPECS | |
| Front Tyre | 120/70 ZR17 |
| Rear Tyre | 180/55 ZR17 |
| FUEL SYSTEM | |
| Fuel Capacity | 18 Litres / 4.8 US gal (reserve 4 Litres) |
| Fuel Consumption | 4.1 L/100 km / 57.4 US mpg |
| Top Speed | — |
The second model year of the water-cooled R 1200 RS carried on essentially unchanged from the 2015 launch bike. It remains a half-faired sport-tourer built around the 125 hp boxer, with a sportier stance than the RT and more wind protection than the R roadster, and a long options list of electronic aids and touring luggage.
