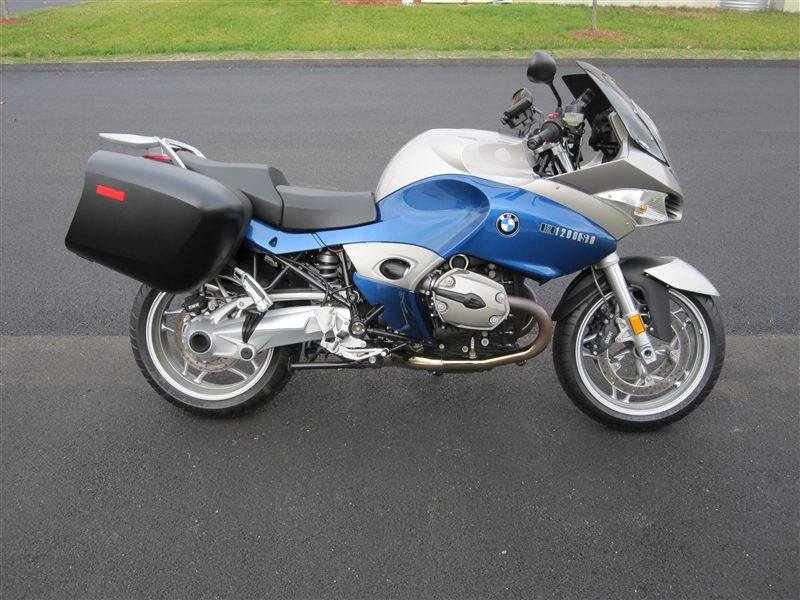

| MODEL | BMW R 1200ST 2005 |
| Year | 2005 |
| Engine Type | Four stroke, two cylinder horizontally opposed Boxer with balance shaft, 4 valves per cylinder |
| Displacement / Capacity | 1170 cc / 71.4 cu in |
| Bore X Stroke | 101 x 73 mm |
| Compression Ratio | 12.0:1 |
| Cooling System | Air/Oil cooled |
| Max Power | 81 kW / 110 hp @ 7500 rpm |
| Max Torque | 115 Nm / 85 lb-ft @ 6000 rpm |
| Ignition | Digital engine management |
| Induction | Fuel injection, BMW engine management BMS-K |
| Start System | Electric |
| TRANSMISSION SPECS | |
| Lubrication | — |
| Gear Box | 6 Speed |
| Clutch | Single dry plate clutch, hydraulically operated |
| Final Drive | Enclosed driveshaft with two universal joints, ratio 2.62:1 |
| CHASSIS SPECS | |
| Frame | Three-section frame consisting of front and rear section, load-bearing engine-gearbox unit |
| Front Suspension | BMW Telelever, 110 mm / 4.3 in travel |
| Rear Suspension | BMW Paralever with TDD (travel-dependent damping) spring strut, 140 mm / 5.5 in travel |
| Front Brakes | 2 x 320 mm discs, 4 piston calipers (EVO brakes with Integral ABS optional) |
| Rear Brakes | Single 265 mm disc, 2 piston caliper |
| DIMENSION SPECS | |
| Overall Length | 2165 mm / 85.2 in |
| Overall Width | 890 mm / 35.0 in (incl. mirrors) |
| Overall Height | 1220 mm / 48.0 in (excl. mirrors) |
| Seat Height | 806 - 830 mm / 31.7 - 32.7 in (low seat 780 - 800 mm / 30.7 - 31.5 in) |
| Wheelbase | 1502 mm / 59.1 in |
| Ground Clearance | — |
| Dry Weight | 205 kg / 452 lbs |
| Wet Weight | 229 kg / 505 lbs |
| WHEEL SPECS | |
| Front Tyre | 120/70 ZR17 |
| Rear Tyre | 180/55 ZR17 |
| FUEL SYSTEM | |
| Fuel Capacity | 21 Litres / 5.5 US gal |
| Fuel Consumption | 5.6 L/100 km / 42.1 US mpg |
| Top Speed | 233.6 km/h / 145 mph |
The R 1200 ST arrived in 2005 as a sportier successor to the R 1150 RS, sharing the new 110 hp balance-shaft boxer, six-speed gearbox and shaft drive with the R 1200 RT. A lighter half-fairing, adjustable clip-on bars and screen made it noticeably lighter than the RT. Its vertical, hexagon-shaped headlight split opinion.
