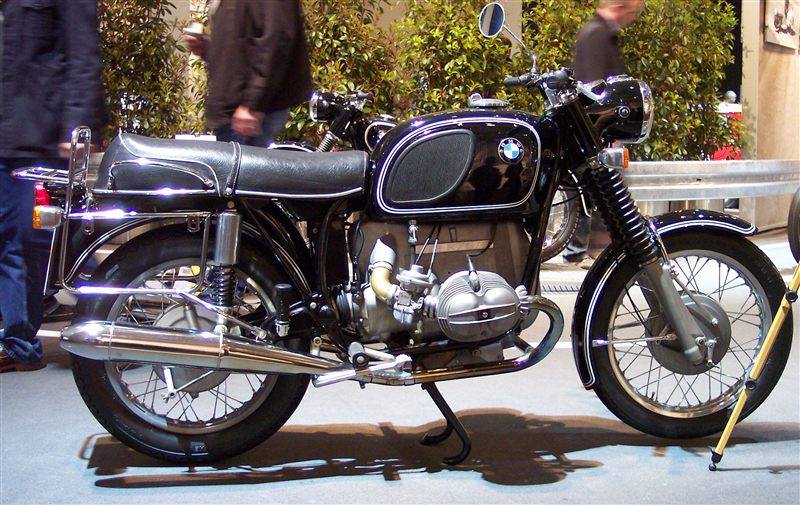

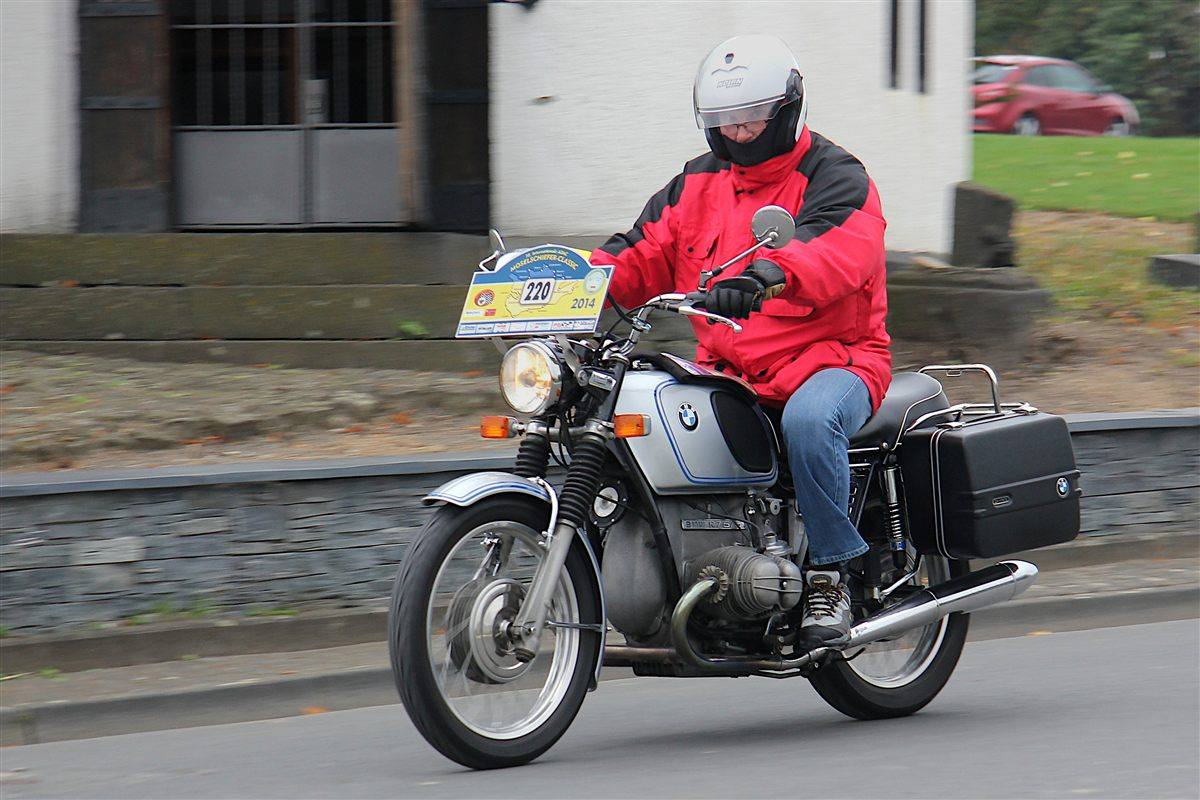

| MODEL | BMW R 75/5 1970 - 1971 |
| Year | 1970 - 1971 |
| Engine Type | Four stroke, two cylinder horizontally opposed boxer, OHV pushrod, 2 valves per cylinder |
| Displacement / Capacity | 745 cc / 45.5 cu in |
| Bore X Stroke | 82 x 70.6 mm |
| Compression Ratio | 9.0:1 |
| Cooling System | Air cooled |
| Max Power | 37 kW / 50 hp @ 6200 rpm |
| Max Torque | 59 Nm / 43.5 lb-ft @ 5000 rpm |
| Ignition | Battery and coil ignition |
| Induction | 2 x Bing 32 mm constant-depression (CV) carburettors |
| Start System | Electric and kick |
| TRANSMISSION SPECS | |
| Lubrication | — |
| Gear Box | 4 Speed |
| Clutch | Single plate, dry |
| Final Drive | Shaft |
| CHASSIS SPECS | |
| Frame | Double loop steel tube frame with bolted-on rear subframe |
| Front Suspension | Telescopic hydraulic fork, 208 mm / 8.2 in travel |
| Rear Suspension | Swingarm with twin shock absorbers, 125 mm / 4.9 in travel |
| Front Brakes | ∅200 mm duplex (twin leading shoe) drum |
| Rear Brakes | ∅200 mm simplex drum |
| DIMENSION SPECS | |
| Overall Length | 2100 mm / 82.7 in |
| Overall Width | 850 mm / 33.5 in |
| Overall Height | 1040 mm / 40.9 in |
| Seat Height | — |
| Wheelbase | 1385 mm / 54.5 in |
| Ground Clearance | — |
| Dry Weight | — |
| Wet Weight | 210 kg / 463 lbs |
| WHEEL SPECS | |
| Front Tyre | 3.25 - S19 |
| Rear Tyre | 4.00 - S18 |
| FUEL SYSTEM | |
| Fuel Capacity | 24 Litres / 6.3 US gal |
| Fuel Consumption | — |
| Top Speed | 175 km/h / 109 mph |
In its first full production years the R75/5 established BMW as a maker of fast, reliable sports-touring twins, and the 750 became the best-selling model of the series. The engine, frame and long-travel suspension were unchanged from launch, while the large 24-litre tank began to give way to a smaller standard tank from 1971.
