| MODEL | BMW R 75/7 1976 - 1977 |
| Year | 1976 - 1977 |
| Engine Type | Four stroke, two cylinder horizontally opposed boxer, OHV pushrod, 2 valves per cylinder |
| Displacement / Capacity | 745 cc / 45.5 cu in |
| Bore X Stroke | 82 x 70.6 mm |
| Compression Ratio | 9.0:1 |
| Cooling System | Air cooled |
| Max Power | 37 kW / 50 hp @ 6200 rpm |
| Max Torque | 58.8 Nm / 43.4 lb-ft @ 5000 rpm |
| Ignition | Battery and coil ignition, contact breaker |
| Induction | 2 x Bing 32 mm constant-depression (CV) carburettors |
| Start System | Electric (kickstarter optional) |
| TRANSMISSION SPECS | |
| Lubrication | — |
| Gear Box | 5 Speed |
| Clutch | — |
| Final Drive | Shaft |
| CHASSIS SPECS | |
| Frame | — |
| Front Suspension | Telescopic hydraulic fork, 200 mm / 7.9 in travel |
| Rear Suspension | Swingarm with adjustable twin shock absorbers, 125 mm / 4.9 in travel |
| Front Brakes | Single ∅260 mm disc, 1-piston caliper |
| Rear Brakes | ∅200 mm drum |
| DIMENSION SPECS | |
| Overall Length | — |
| Overall Width | — |
| Overall Height | — |
| Seat Height | — |
| Wheelbase | — |
| Ground Clearance | — |
| Dry Weight | — |
| Wet Weight | 215 kg / 474 lbs |
| WHEEL SPECS | |
| Front Tyre | 3.25 - S19 |
| Rear Tyre | 4.00 - S18 |
| FUEL SYSTEM | |
| Fuel Capacity | 24 Litres / 6.3 US gal |
| Fuel Consumption | — |
| Top Speed | 177 km/h / 110 mph |

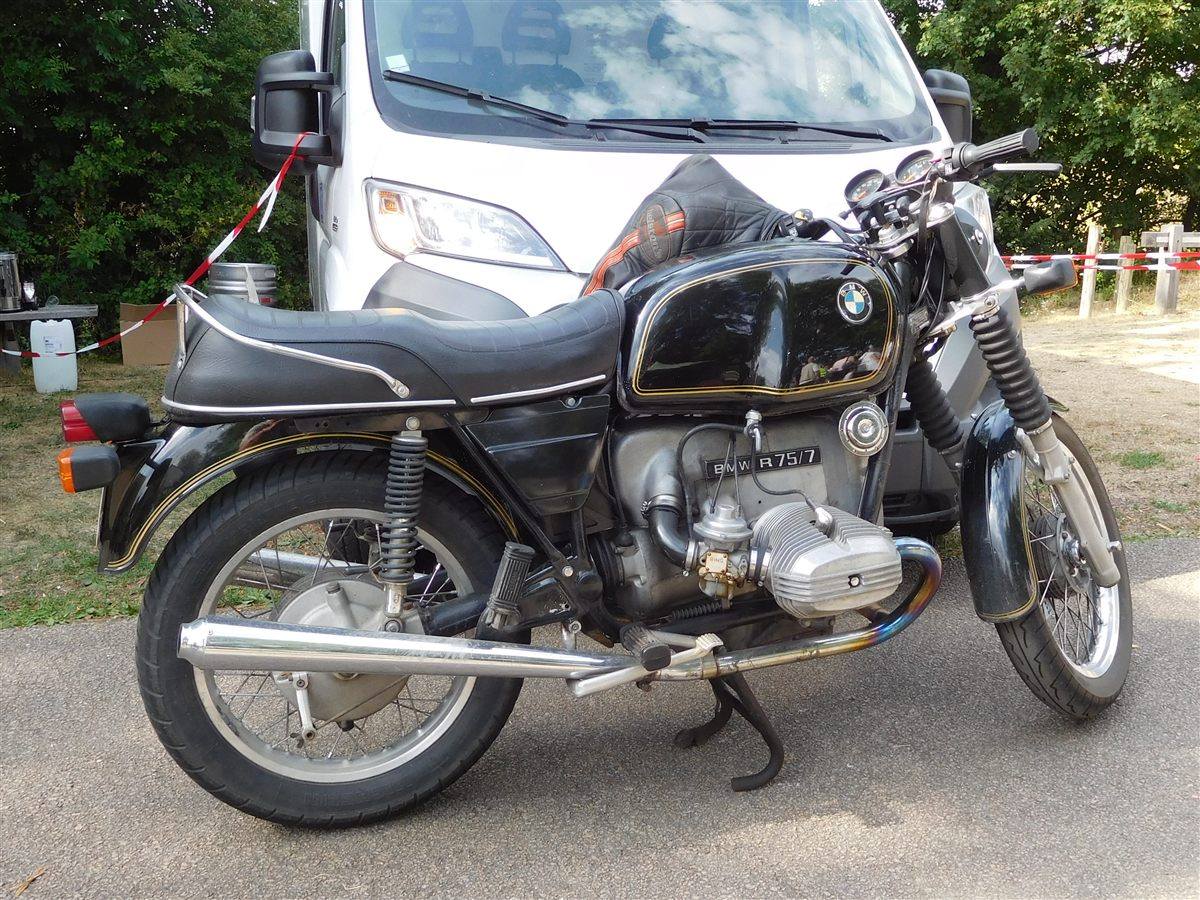

Photo: Addvisor, CC BY-SA 4.0, via Wikimedia Commons
Photo: Addvisor, CC BY-SA 4.0, via Wikimedia Commons
The R75/7 arrived in autumn 1976 when the /7 range replaced the /6, bringing the angular R90S-style 24-litre tank with a recessed filler and squarer rocker covers. Mechanically it kept the 50 hp 745 cc twin, and testers found it quicker than BMW claimed, with good brakes and comfortable touring manners. It lasted only about two years before the 800 cc R80/7 took its place.
