| MODEL | BMW R NINET 2021 - 2023 |
| Year | 2021 - 2023 |
| Engine Type | Four stroke, two cylinder horizontally opposed Boxer, two camshafts, four radially aligned valves per cylinder, central counterbalancer shaft |
| Displacement / Capacity | 1170 cc / 71.4 cu in |
| Bore X Stroke | 101 x 73 mm |
| Compression Ratio | 12.0:1 |
| Cooling System | Air/oil cooled |
| Max Power | 80 kW / 109 hp @ 7250 rpm |
| Max Torque | 116 Nm / 11.8 kgf-m / 85.6 lb-ft @ 6000 rpm |
| Ignition | Twin-spark ignition, digital engine management |
| Induction | Electronic intake pipe fuel injection, EU-5 with controlled 3-way catalytic converter |
| Start System | Electric |
| TRANSMISSION SPECS | |
| Lubrication | Wet sump |
| Gear Box | 6-speed |
| Clutch | Single dry plate, hydraulically operated |
| Final Drive | Shaft |
| CHASSIS SPECS | |
| Frame | Multi-section frame with load-bearing engine-gearbox unit and removable pillion frame |
| Front Suspension | 46 mm upside-down telescopic fork, 120 mm / 4.7 in travel |
| Rear Suspension | Cast aluminium single-sided swingarm with BMW Paralever, central strut with adjustable preload and rebound damping, 120 mm / 4.7 in travel |
| Front Brakes | 2 x 320 mm discs, 4-piston calipers, BMW Motorrad ABS Pro |
| Rear Brakes | Single 265 mm disc, 2-piston floating caliper, BMW Motorrad ABS Pro |
| DIMENSION SPECS | |
| Overall Length | 2105 mm / 82.9 in |
| Overall Width | 865 mm / 34.0 in |
| Overall Height | 1240 mm / 48.8 in |
| Seat Height | 805 mm / 31.7 in |
| Wheelbase | 1487 mm / 58.5 in |
| Ground Clearance | — |
| Dry Weight | — |
| Wet Weight | 221 kg / 487.2 lbs |
| WHEEL SPECS | |
| Front Tyre | 120/70 ZR17 |
| Rear Tyre | 180/55 ZR17 |
| FUEL SYSTEM | |
| Fuel Capacity | 18 Litres / 4.7 US gal |
| Fuel Consumption | 5.3 L/100 km / 44 US mpg |
| Top Speed | — |

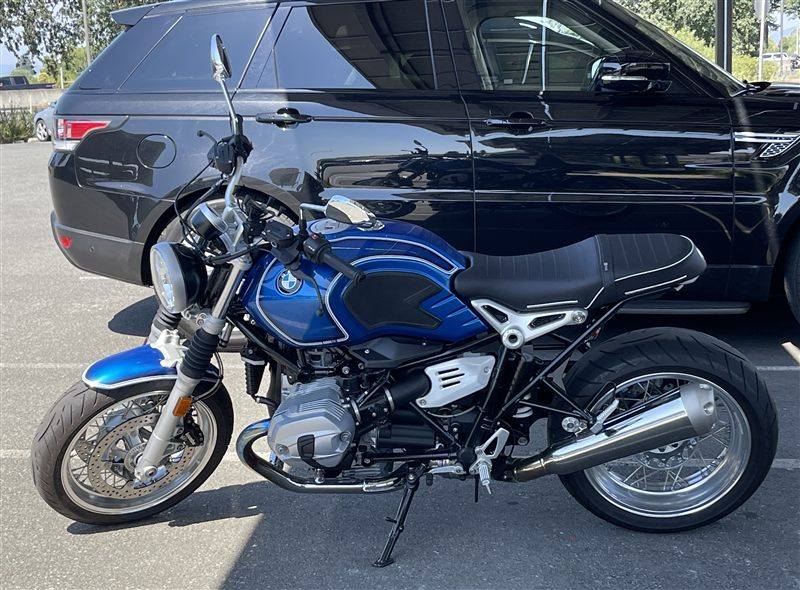

Photo: Missvain (Sarah Stierch), CC BY 4.0, via Wikimedia Commons
Photo: Wikisympathisant, CC BY-SA 4.0, via Wikimedia Commons
The 2021 R nineT is the EU-5 update of BMW's retro roadster: new cylinder heads trimmed peak power by 1 hp to 109 hp but strengthened the mid-range, and ABS Pro with Dynamic Brake Control, Rain and Road riding modes, an LED headlight and a revised rear shock became standard. The flagship of the family keeps the 46 mm upside-down fork, spoked wheels and 18-litre tank, and it remained in the range until the R 12 nineT took over for 2024.
