BMW S 1000RR 2011

BMW S 1000RR 2011
BMW S 1000RR 2011 · Photo: order_242 from Chile, CC BY-SA 2.0, via Wikimedia Commons
Spec sheet
MODELBMW S 1000RR 2011
Year2011
Engine TypeFour stroke, transverse four cylinder, DOHC, 4 titanium valves per cylinder
Displacement / Capacity999 cc / 60.9 cu in
Bore X Stroke80 x 49.7 mm
Compression Ratio13.0:1
Cooling SystemLiquid cooled
Max Power142 kW / 193 hp @ 13000 rpm
Max Torque112 Nm / 11.4 kgf-m / 82.6 lb-ft @ 9750 rpm
Ignition—
InductionElectronic fuel injection, BMS-KP digital engine management, 48 mm throttle bodies, variable-length intake
Start SystemElectric
TRANSMISSION SPECS
LubricationWet sump
Gear Box6 Speed
ClutchMulti-disc anti-hopping clutch in oil bath, mechanically operated
Final DriveChain, 17/44 (ratio 2.588)
CHASSIS SPECS
FrameBridge-type cast aluminium frame, load-bearing engine
Front Suspension46 mm upside-down fork, compression and rebound adjustable, 120 mm / 4.7 in travel
Rear SuspensionCast aluminium double-sided swingarm, central spring strut, compression and rebound adjustable, 130 mm / 5.1 in travel

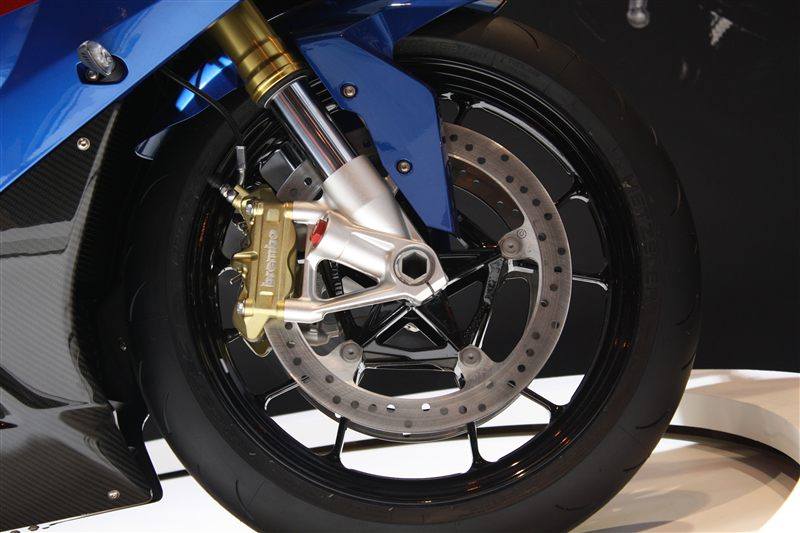

Front Brakes2 x 320 mm floating discs, radial 4-piston fixed calipers
Rear BrakesSingle 220 mm disc, single-piston floating caliper
DIMENSION SPECS
Overall Length2056 mm / 80.9 in
Overall Width826 mm / 32.5 in (incl. mirrors)
Overall Height1138 mm / 44.8 in (excl. mirrors)
Seat Height820 mm / 32.3 in
Wheelbase1432 mm / 56.4 in
Ground Clearance—
Dry Weight183 kg / 403.4 lbs
Wet Weight204 kg / 449.7 lbs
WHEEL SPECS
Front Tyre120/70 ZR17
Rear Tyre190/55 ZR17
FUEL SYSTEM
Fuel Capacity17.5 Litres / 4.6 US gal
Fuel Consumption—
Top Speed299 km/h / 185.7 mph
Photo gallery

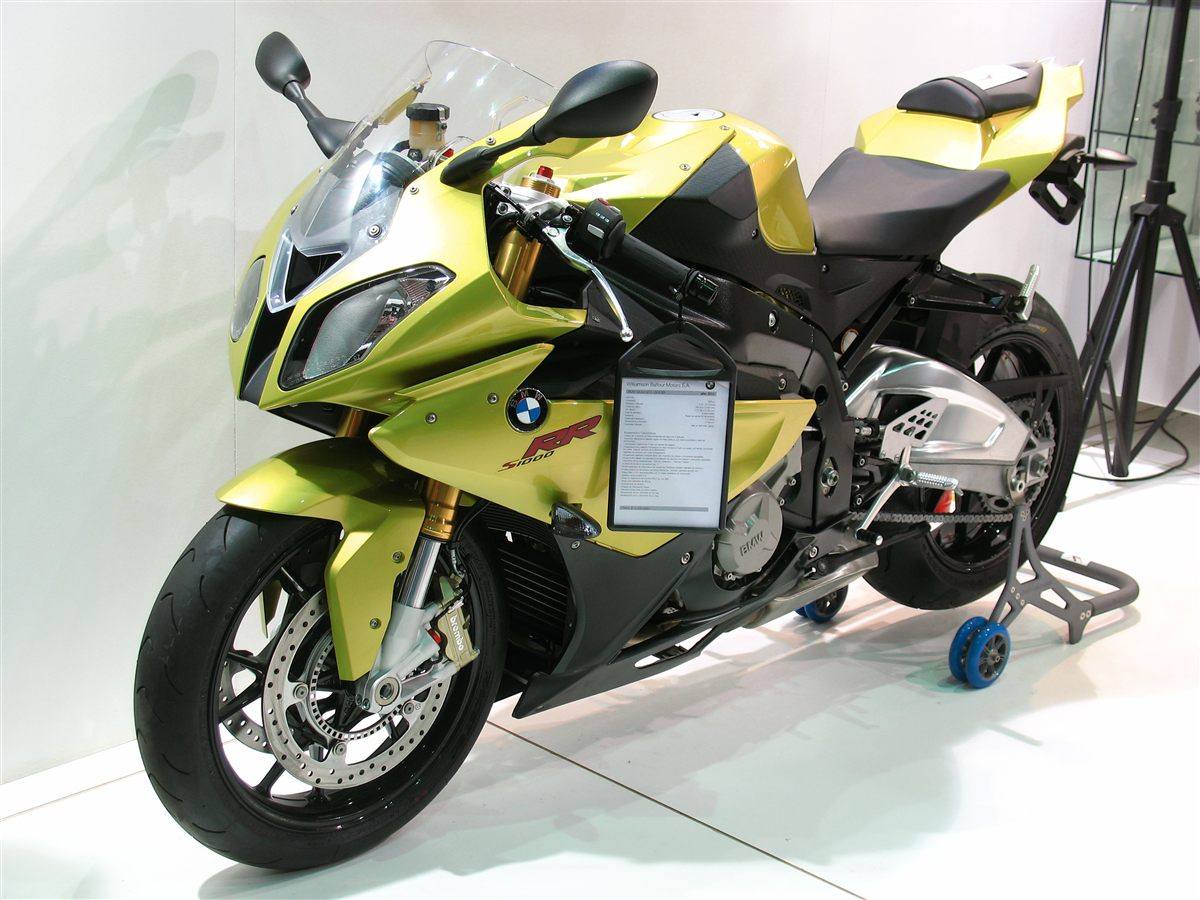

BMW S 1000RR 2011

Photo: Ajamal, Public domain, via Wikimedia Commons

BMW file

The second year of BMW's first superbike brought no real changes to the 193 hp inline-four that had shaken up the litre class in 2010. Its party piece remained the electronics: ride-by-wire throttle with Rain, Sport, Race and Slick modes, plus optional Race ABS and Dynamic Traction Control and a clutchless-upshift gearshift assistant. It was the last year before the 2012 chassis and throttle-map update.
