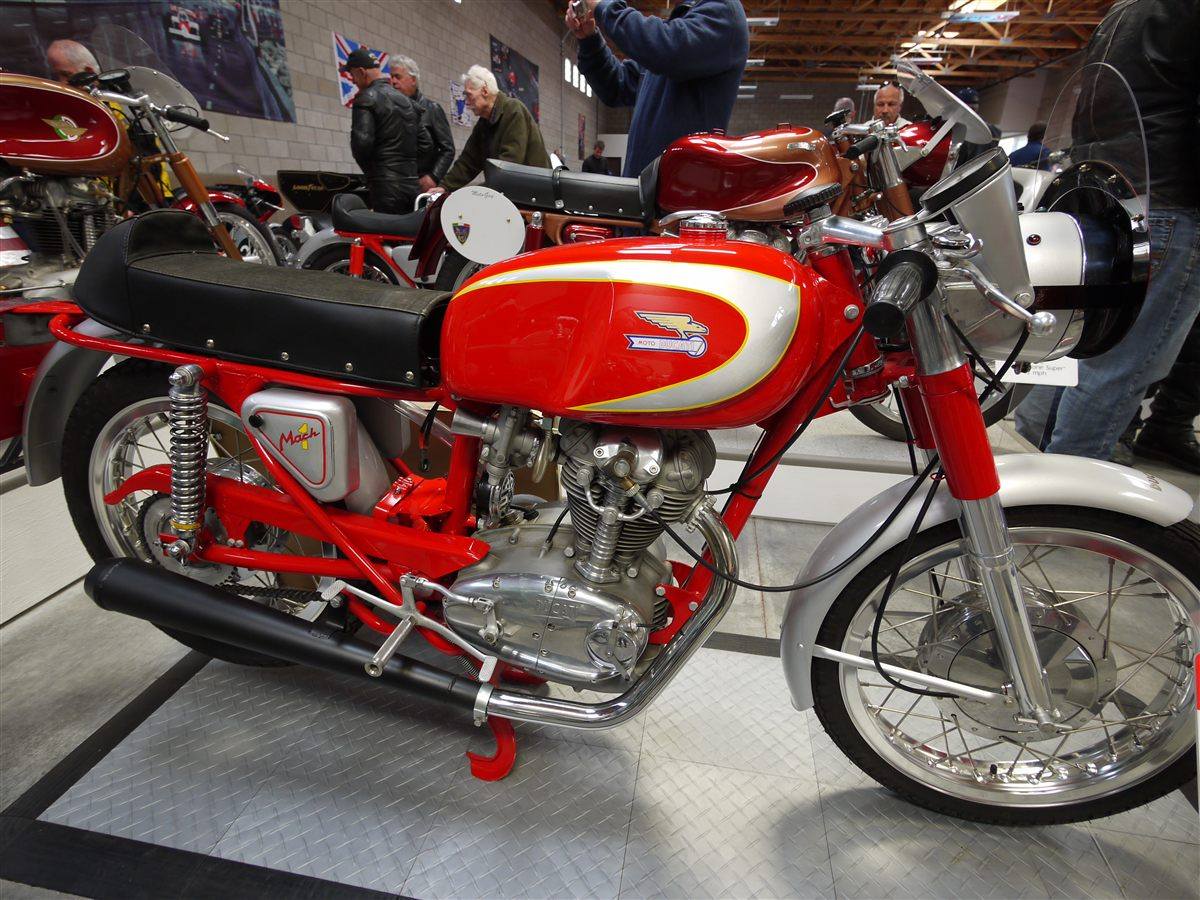

| MODEL | DUCATI 250 MACH 1 1964 - 1966 |
| Year | 1964 - 1966 |
| Engine Type | Four stroke, single cylinder, Desmo SOHC, bevel gear-drive |
| Displacement / Capacity | 248.6 cc / 15.2 cu in |
| Bore X Stroke | 74 x 57.8 mm |
| Compression Ratio | 10:1 |
| Cooling System | Air cooled |
| Max Power | 20.6 kW / 28 hp @ 8500 rpm |
| Max Torque | — |
| Ignition | Battery and coil, 6V 60W generator |
| Induction | Dell'Orto SS1 29A carburetor |
| Start System | Kick |
| TRANSMISSION SPECS | |
| Lubrication | — |
| Gear Box | 5 Speed |
| Clutch | Wet, multi-plate |
| Final Drive | Chain |
| CHASSIS SPECS | |
| Frame | Single downtube, open frame with large diameter backbone tube |
| Front Suspension | Hydraulic telescopic fork, Ducati 31.5 mm |
| Rear Suspension | Swingarm, dual shocks, Marzocchi 295 mm, three-way adjustable |
| Front Brakes | Drum, 180 mm |
| Rear Brakes | Drum, 160 mm |
| DIMENSION SPECS | |
| Overall Length | 2000 mm / 78.7 in |
| Overall Width | 590 mm / 23.2 in |
| Overall Height | 920 mm / 36.2 in |
| Seat Height | 760 mm / 30.4 in |
| Wheelbase | 1350 mm / 53.1 in |
| Ground Clearance | — |
| Dry Weight | 116 kg / 255 lbs |
| Wet Weight | — |
| WHEEL SPECS | |
| Front Tyre | 2.50-18 |
| Rear Tyre | 2.75-18 |
| FUEL SYSTEM | |
| Fuel Capacity | 13 Litres / 3.4 US gal |
| Fuel Consumption | — |
| Top Speed | 177 km/h / 110 mph |
The Mach 1 was Ducati's sporting 250 single of the mid-1960s, built from the bevel-drive SOHC engine of the 175 but enlarged to 250 cc. It was unusual for its day in having a five-speed gearbox, and it came with clip-on bars, rearset footrests and a narrow racing-style saddle. Output was around 28 hp, enough for roughly 100-110 mph, and it is now a sought-after classic.
