| MODEL | DUCATI 48/50 BRIO 1963 - 1967 |
| Year | 1963 - 1967 |
| Engine Type | Two-stroke, single cylinder, piston port |
| Displacement / Capacity | 47.6 cc / 2.9 cu in |
| Bore X Stroke | 38 x 42 mm |
| Compression Ratio | 7.0:1 |
| Cooling System | Fan cooled |
| Max Power | 1.1 kW / 1.5 hp @ 5200 rpm |
| Max Torque | — |
| Ignition | 6V 18W flywheel magneto |
| Induction | Dell'Orto SHA 14/12 |
| Start System | Kick |
| TRANSMISSION SPECS | |
| Lubrication | — |
| Gear Box | Three speed |
| Clutch | Wet, multiplate |
| Final Drive | Chain |
| CHASSIS SPECS | |
| Frame | Pressed steel |
| Front Suspension | Swinging shackle fork |
| Rear Suspension | Swingarm, dual rubber shocks |
| Front Brakes | Drum, 105 mm |
| Rear Brakes | Drum, 105 mm |
| DIMENSION SPECS | |
| Overall Length | — |
| Overall Width | — |
| Overall Height | — |
| Seat Height | — |
| Wheelbase | — |
| Ground Clearance | — |
| Dry Weight | 63.5 kg / 140 lbs |
| Wet Weight | — |
| WHEEL SPECS | |
| Front Tyre | 2.75 x 9 |
| Rear Tyre | 2.75 x 9 |
| FUEL SYSTEM | |
| Fuel Capacity | — |
| Fuel Consumption | — |
| Top Speed | 50 km/h / 31 mph |

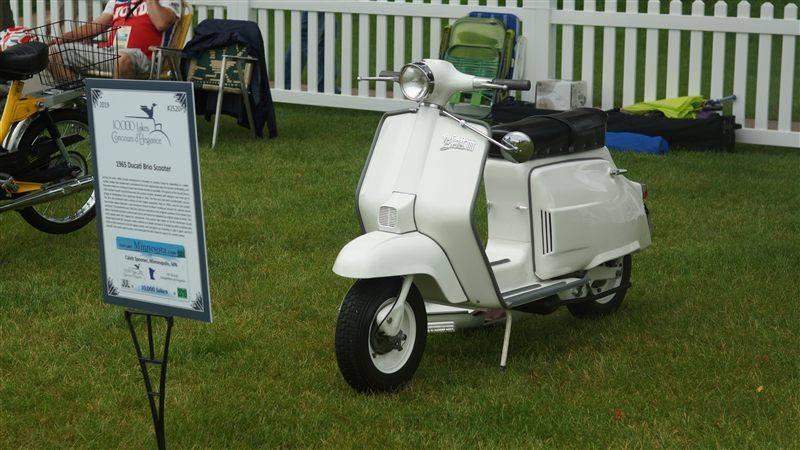

The Brio was Ducati's second scooter, styled by architect Gio Ponti and shown at the 1963 Milan show as cheap everyday transport for young riders. A fan-cooled 48 cc two-stroke sat on the swingarm, with a three-speed gearbox worked from the left twist grip. A 100 cc Brio followed in 1964, and the 48 later became a 50 with a slightly larger 49.6 cc engine.
