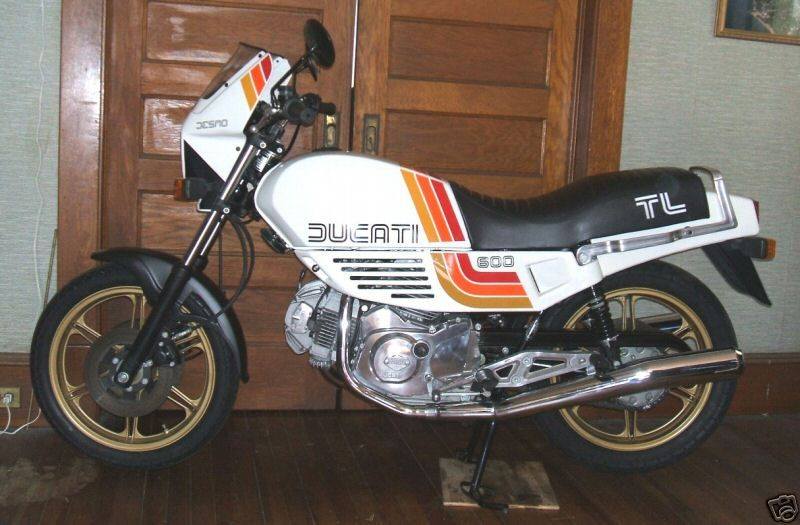

| MODEL | DUCATI 600TL PANTAH 1982 - 1984 |
| Year | 1982 - 1984 |
| Engine Type | 90 degree V-twin (L-twin), 4-stroke, SOHC, desmodromic, 2 valves per cylinder, belt-driven camshafts |
| Displacement / Capacity | 583 cc / 35.6 cu in |
| Bore X Stroke | 80 x 58 mm |
| Compression Ratio | 10.4:1 |
| Cooling System | Air cooled |
| Max Power | 42.7 kW / 58 hp @ 9100 rpm |
| Max Torque | 45 Nm / 4.59 kgf-m / 33.2 ft-lb @ 6000 rpm |
| Ignition | Bosch PTZ electronic |
| Induction | Dell'Orto PHF36A |
| Start System | Electric |
| TRANSMISSION SPECS | |
| Lubrication | — |
| Gear Box | 5 speed (5th gear 0.966:1 from 1983) |
| Clutch | Wet, multi-plate |
| Final Drive | Chain |
| CHASSIS SPECS | |
| Frame | Tubular steel trellis frame |
| Front Suspension | 35 mm Paioli fork |
| Rear Suspension | Paioli dual shock absorbers with 3-way adjustable springs |
| Front Brakes | 2 x 260 mm discs, 2 piston calipers |
| Rear Brakes | Single 260 mm disc, 1 piston caliper |
| DIMENSION SPECS | |
| Overall Length | 2160 mm / 85.0 in |
| Overall Width | 760 mm / 29.9 in |
| Overall Height | — |
| Seat Height | 820 mm / 32.3 in |
| Wheelbase | 1450 mm / 57.1 in |
| Ground Clearance | — |
| Dry Weight | 177 kg / 390 lbs |
| Wet Weight | — |
| WHEEL SPECS | |
| Front Tyre | 100/90-18 |
| Rear Tyre | 110/90-18 |
| FUEL SYSTEM | |
| Fuel Capacity | 18 Litres / 4.8 US gal / 4.0 Imp gal |
| Fuel Consumption | — |
| Top Speed | 183 km/h / 113.7 mph |
The TL was the touring-flavoured Pantah 600, fitted with a bikini handlebar fairing, vented side panels and wider bars for a more upright stance. Power was slightly lower than the SL, and it sold mostly in Italy; the styling proved unpopular. Testers disliked its high gearing and unstable feel near 90 mph but liked the switchgear and instruments.
