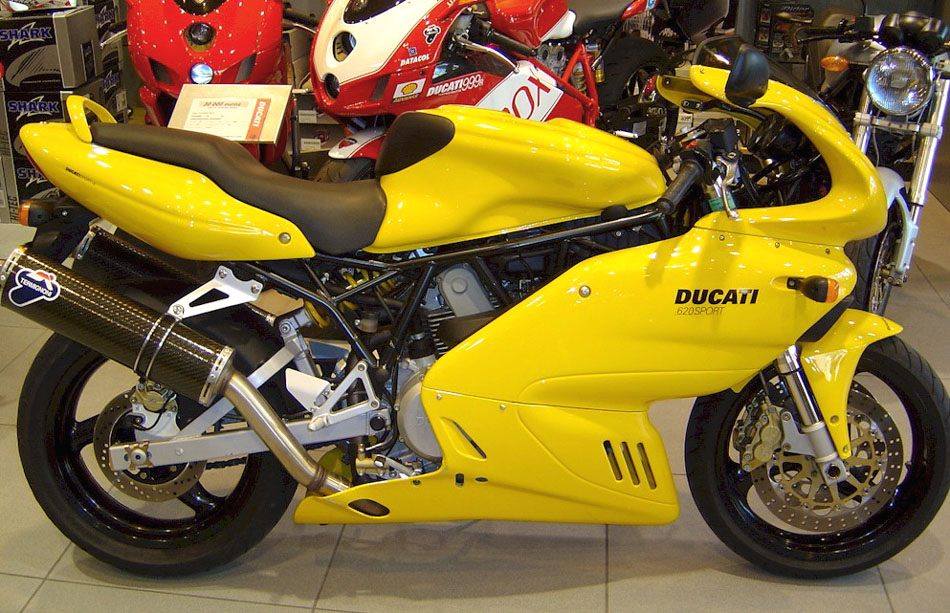

| MODEL | DUCATI 620 SPORT (FULL FAIRING) 2003 |
| Year | 2003 |
| Engine Type | 90 degree V-twin (L-twin), 4-stroke, SOHC, desmodromic, 2 valves per cylinder, belt-driven camshafts |
| Displacement / Capacity | 618 cc / 37.7 cu in |
| Bore X Stroke | 80 x 61.5 mm |
| Compression Ratio | 10.5:1 |
| Cooling System | Air cooled |
| Max Power | 45 kW / 61 hp @ 8750 rpm |
| Max Torque | 54 Nm / 5.5 kgf-m / 39.8 ft-lb @ 6500 rpm |
| Ignition | Marelli electronic |
| Induction | Marelli 5.9M electronic fuel injection, 45 mm throttle body |
| Start System | Electric |
| TRANSMISSION SPECS | |
| Lubrication | — |
| Gear Box | 5 speed |
| Clutch | Wet, multi-plate |
| Final Drive | Chain |
| CHASSIS SPECS | |
| Frame | — |
| Front Suspension | Marzocchi 43 mm upside-down fork |
| Rear Suspension | Progressive cantilever linkage, fully adjustable Sachs-Boge monoshock |
| Front Brakes | 2 x 320 mm discs, 4 piston calipers |
| Rear Brakes | Single 245 mm disc, 2 piston caliper |
| DIMENSION SPECS | |
| Overall Length | 2030 mm / 79.9 in |
| Overall Width | 780 mm / 30.7 in |
| Overall Height | 1110 mm / 43.7 in |
| Seat Height | 815 mm / 32.1 in |
| Wheelbase | 1405 mm / 55.3 in |
| Ground Clearance | — |
| Dry Weight | 182 kg / 401 lbs |
| Wet Weight | — |
| WHEEL SPECS | |
| Front Tyre | 120/70 ZR17 |
| Rear Tyre | 160/60 ZR17 |
| FUEL SYSTEM | |
| Fuel Capacity | 16 Litres / 4.2 US gal / 3.5 Imp gal |
| Fuel Consumption | — |
| Top Speed | 195 km/h / 121.2 mph |
The 620 Sport was the 2003 small-capacity Supersport, using the revised 618 cc injected two-valve desmo twin with a longer stroke. Twin 320 mm front discs replaced the earlier single disc, and a USD Marzocchi fork and Sachs shock gave a firm, precise chassis. Reviewers saw it as a modernised descendant of the Pantah and a good first big sports bike.
