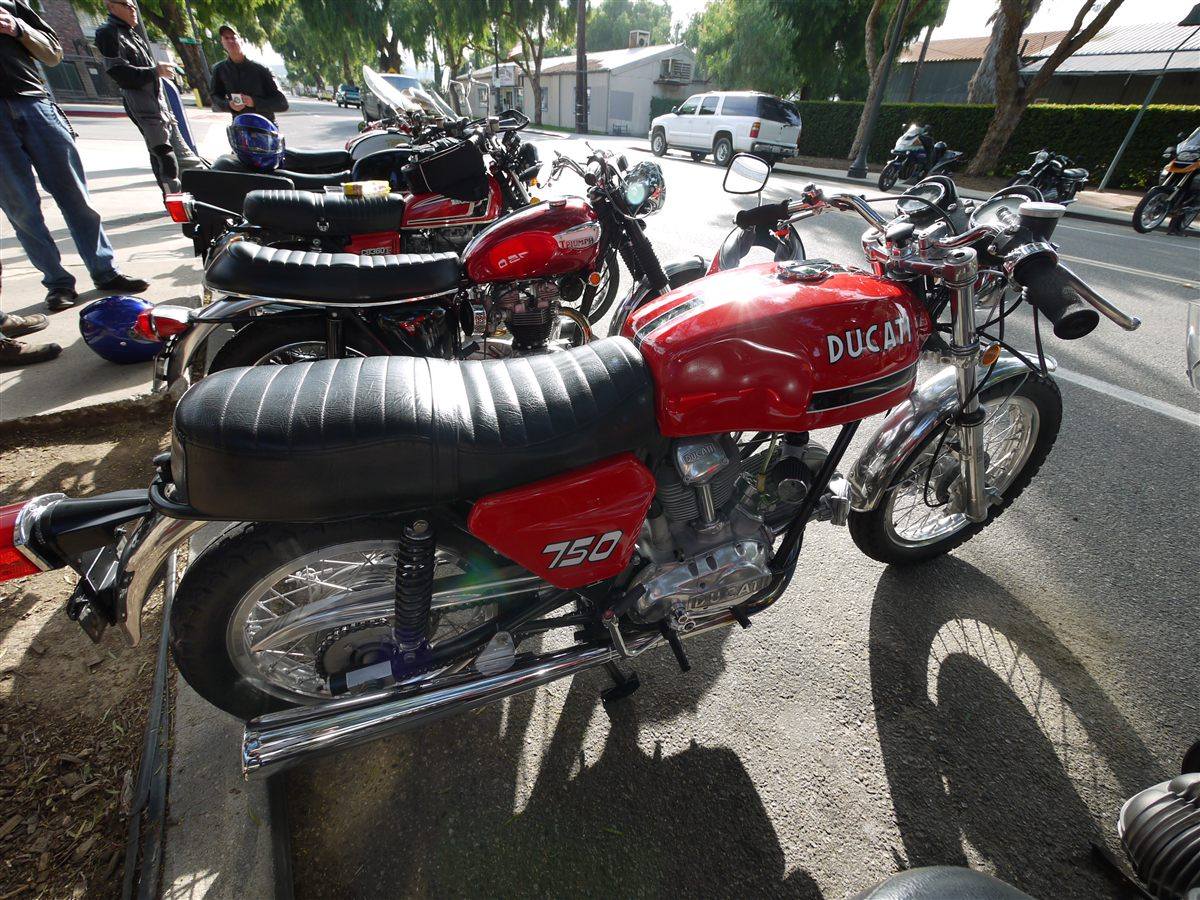

| MODEL | DUCATI 750GT PROTOTYPE 1970 |
| Year | 1970 |
| Engine Type | Four stroke, 90° V-twin, SOHC (bevel gear driven), 2 valves per cylinder |
| Displacement / Capacity | 748 cc / 45.6 cu in |
| Bore X Stroke | 80 x 74.4 mm |
| Compression Ratio | 8.5:1 |
| Cooling System | Air cooled |
| Max Power | 41.9 kW / 57 hp @ 7700 rpm |
| Max Torque | — |
| Ignition | Points and coil |
| Induction | 2 x 30 mm Amal R 930/76 carburettors |
| Start System | Kick |
| TRANSMISSION SPECS | |
| Lubrication | — |
| Gear Box | 5 Speed |
| Clutch | Wet multiplate |
| Final Drive | Chain |
| CHASSIS SPECS | |
| Frame | — |
| Front Suspension | 38 mm Marzocchi telescopic fork |
| Rear Suspension | Twin Marzocchi shocks, 3-way adjustable |
| Front Brakes | Single 280 mm disc |
| Rear Brakes | 200 mm drum |
| DIMENSION SPECS | |
| Overall Length | 2250 mm / 88.6 in |
| Overall Width | 710 mm / 28.0 in |
| Overall Height | 1070 mm / 42.1 in |
| Seat Height | 780 mm / 30.7 in |
| Wheelbase | 1530 mm / 60.2 in |
| Ground Clearance | — |
| Dry Weight | 185 kg / 408 lbs |
| Wet Weight | — |
| WHEEL SPECS | |
| Front Tyre | 3.25-19 |
| Rear Tyre | 3.50-18 |
| FUEL SYSTEM | |
| Fuel Capacity | 17 Litres / 4.5 US gal |
| Fuel Consumption | — |
| Top Speed | — |
The 750GT prototype was the first road-going Ducati V-twin, laid out by Fabio Taglioni in 1970 as a longitudinal 90 degree twin with bevel-driven overhead cams. It led to the production 750GT of mid-1971, which added a revised frame and Concentric carburettors. The Gran Turismo name signalled a touring intent.
