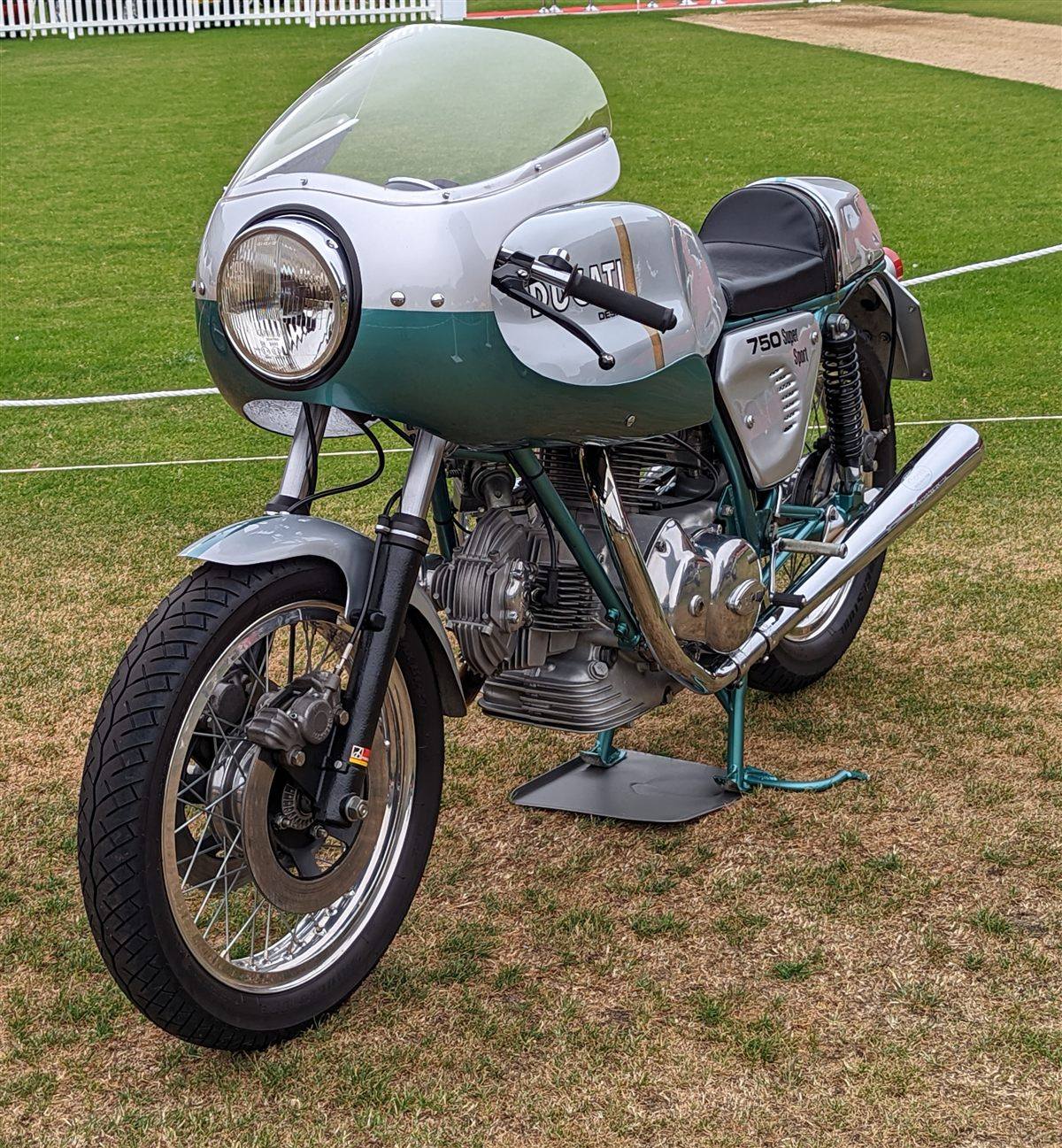

| MODEL | DUCATI 750SS 1973 - 1974 |
| Year | 1973 - 1974 |
| Engine Type | Four-stroke, 90° V-twin, SOHC, desmodromic, 2 valves per cylinder, bevel-gear driven |
| Displacement / Capacity | 748 cc / 45.6 cu in |
| Bore X Stroke | 80 x 74.4 mm |
| Compression Ratio | 9.5:1 |
| Cooling System | Air cooled |
| Max Power | 51.5 kW / 70 hp @ 9000 rpm |
| Max Torque | 71.6 Nm / 52.8 ft-lb @ 5500 rpm |
| Ignition | Points and coil |
| Induction | 2 x Dell'Orto PHM 40 carburettors |
| Start System | Kick |
| TRANSMISSION SPECS | |
| Lubrication | — |
| Gear Box | 5-speed |
| Clutch | Wet, multiplate |
| Final Drive | Chain |
| CHASSIS SPECS | |
| Frame | Tubular steel, twin downtube |
| Front Suspension | 38 mm Marzocchi telescopic fork |
| Rear Suspension | Dual Marzocchi 305 mm shocks, 3-way adjustable |
| Front Brakes | Twin 275 mm discs, Scarab calipers |
| Rear Brakes | Single 230 mm disc, Lockheed caliper |
| DIMENSION SPECS | |
| Overall Length | 2200 mm / 86.6 in |
| Overall Width | 660 mm / 26.0 in |
| Overall Height | 1050 mm / 41.3 in |
| Seat Height | 760 mm / 30.0 in |
| Wheelbase | 1500 mm / 59.1 in |
| Ground Clearance | — |
| Dry Weight | 180 kg / 397 lbs |
| Wet Weight | — |
| WHEEL SPECS | |
| Front Tyre | 3.50-18 |
| Rear Tyre | 3.50-18 |
| FUEL SYSTEM | |
| Fuel Capacity | 17 Litres / 4.5 US gal |
| Fuel Consumption | — |
| Top Speed | 230 km/h / 143 mph |
The round-case 750 Super Sport was a road-going version of the 1972 Imola-winning racer and the only round-case Ducati V-twin with desmodromic valves. With a rigid frame that used the engine as a stressed member, bare Conti pipes and no air filters, it was fast and raw, and only about 400 were made, which makes it one of the most prized Ducatis.
