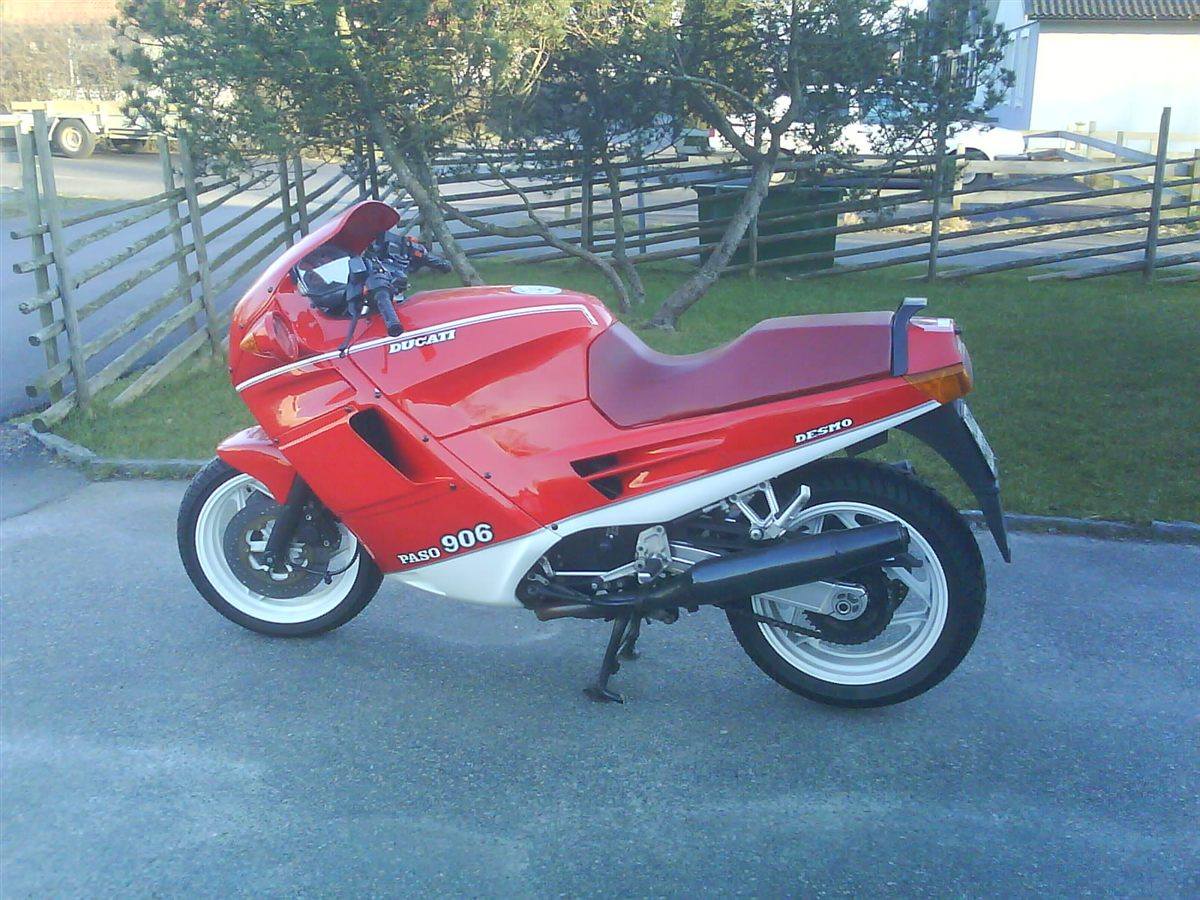

| MODEL | DUCATI 906 PASO 1989 |
| Year | 1989 |
| Engine Type | Four stroke, 90° V-twin, SOHC, desmodromic, 2 valves per cylinder, belt driven |
| Displacement / Capacity | 904 cc / 55.2 cu in |
| Bore X Stroke | 92 x 68 mm |
| Compression Ratio | 9.2:1 |
| Cooling System | Liquid cooled |
| Max Power | 64.7 kW / 88 hp @ 8000 rpm |
| Max Torque | 85 Nm / 62.7 lb-ft @ 5000 rpm |
| Ignition | Marelli Digiplex, variable advance |
| Induction | 2 x 44 mm Weber 44 DCNF 116 carburettors |
| Start System | Electric |
| TRANSMISSION SPECS | |
| Lubrication | — |
| Gear Box | 6 speed |
| Clutch | Dry, multiplate |
| Final Drive | Chain, 2.666:1 (15/40) or 2.533:1 (15/38) |
| CHASSIS SPECS | |
| Frame | Square-tube steel |
| Front Suspension | 42 mm Marzocchi M1R oil-dynamic fork, external rebound adjustment |
| Rear Suspension | Swingarm with Marzocchi Duoshock adjustable oil-dynamic monoshock |
| Front Brakes | 2 x 280 mm discs, 2-piston calipers |
| Rear Brakes | Single 270 mm disc, 1-piston caliper |
| DIMENSION SPECS | |
| Overall Length | 2032 mm / 80.0 in |
| Overall Width | 665 mm / 26.2 in |
| Overall Height | 1150 mm / 45.3 in |
| Seat Height | 780 mm / 30.7 in |
| Wheelbase | 1450 mm / 57.1 in |
| Ground Clearance | — |
| Dry Weight | 205 kg / 452 lb |
| Wet Weight | 222 kg / 489 lb |
| WHEEL SPECS | |
| Front Tyre | 130/60-16 |
| Rear Tyre | 160/60-16 |
| FUEL SYSTEM | |
| Fuel Capacity | 22 Litres / 5.8 US gal |
| Fuel Consumption | 6.0 L/100 km / 39 US mpg |
| Top Speed | 213.4 km/h / 132.6 mph |
The 906 Paso of 1989 carried over the 750 Paso's Tamburini-designed full fairing but gained a larger 904 cc liquid-cooled engine and a six-speed gearbox. It was built after Cagiva took over Ducati. Suspension was Marzocchi, brakes Brembo, and it was replaced by the fuel-injected 907 i.e. in 1991.
