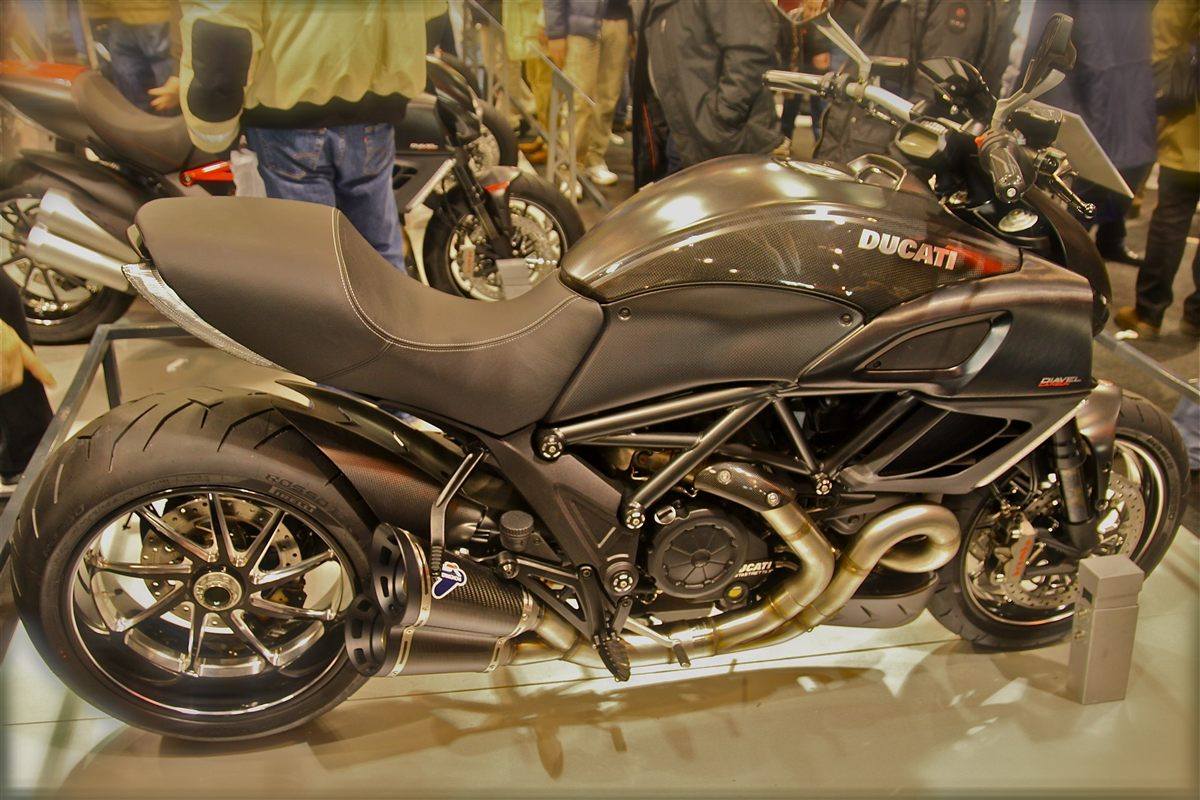

| MODEL | DUCATI DIAVEL 2013 |
| Year | 2013 |
| Engine Type | Four-stroke 90 deg L-twin, DOHC, desmodromic, 4 valves per cylinder (Testastretta 11 deg) |
| Displacement / Capacity | 1198.4 cc / 73.1 cu in |
| Bore X Stroke | 106 x 67.9 mm |
| Compression Ratio | 11.5:1 |
| Cooling System | Liquid, twin lateral radiators with electric fans |
| Max Power | 119 kW / 162 hp @ 9500 rpm |
| Max Torque | 127.5 Nm / 94 lb-ft @ 8000 rpm |
| Ignition | Marelli electronic |
| Induction | Mitsubishi electronic fuel injection, Mikuni elliptical throttle bodies, ride-by-wire |
| Start System | Electric |
| TRANSMISSION SPECS | |
| Lubrication | — |
| Gear Box | 6-speed |
| Clutch | Wet multiplate, hydraulic, slipper function |
| Final Drive | Chain, 15T front / 43T rear sprocket |
| CHASSIS SPECS | |
| Frame | Tubular steel trellis |
| Front Suspension | Marzocchi 50 mm fully adjustable USD fork, 120 mm / 4.7 in travel |
| Rear Suspension | Progressive linkage, fully adjustable Sachs monoshock, single-sided aluminium swingarm, 120 mm / 4.7 in travel |
| Front Brakes | 2 x 320 mm semi-floating discs, Brembo monobloc 4-piston calipers, ABS |
| Rear Brakes | Single 265 mm disc, 2-piston floating caliper, ABS |
| DIMENSION SPECS | |
| Overall Length | 2235 mm / 87.9 in |
| Overall Width | 860 mm / 33.8 in |
| Overall Height | 1192 mm / 46.9 in |
| Seat Height | 770 mm / 30.3 in |
| Wheelbase | 1590 mm / 62.6 in |
| Ground Clearance | — |
| Dry Weight | 210 kg / 463 lb |
| Wet Weight | 239 kg / 527 lb |
| WHEEL SPECS | |
| Front Tyre | 120/70 ZR17 |
| Rear Tyre | 240/45 ZR17 |
| FUEL SYSTEM | |
| Fuel Capacity | 17 Litres / 4.5 US gal |
| Fuel Consumption | 5.2 L/100 km / 19.4 km/l |
| Top Speed | 252.4 km/h / 156.8 mph |
The 2013 Diavel kept the 162 hp twin and chassis unchanged. Its page stresses the Riding Safety Pack of ABS and traction control, the 58 mm exhaust headers with lambda probes and catalytic silencers, and the 15,000 mile valve-service interval.
