DUCATI diavel 2017 FACTORY SPECIFICATIONS
DUCATI diavel 2017 FACTORY SPECIFICATIONS
Spec sheet
MODELDucati Diavel Diesel Limited Edition
ENGINE TYPEFour stroke, 90°“L”twin cylinder, DOHC, desmodromic 4 valve per cylinder
Year2017
Displacement / Capacity1198.4 cc / 73.1 cu-in
Bore X Stroke106 x 67.9mm
Compression Ratio11.5:1
Cooling SystemLiquid Cooled
Max Power152 hp / 113.3 kW @ 9500rpm
Max Torque94 lb-ft / 127.5 Nm @ 8000rpm
IgnitionMarelli Electronic
InductionMitsubishi electronic fuel injection system, Mikuni elliptical throttle bodies with RbW
Start SystemElectric
TRANSMISSION SPECS
Lubrication—
Gear Box6 Speed
ClutchLight action, wet, multiplate clutch with hydraulic control. Self-servo action on drive, slipper action on over-run.
Primary / Final DriveFinal Drive : Chain Front sprocket 15; Rear sprocket 43 / Primary Drive :
Secondary drive—
Gear Ratio1st 37/15 / 2nd 30/17 / 3rd 27/20 / 4th 24/22 / 5th 23/24 / 6th 22/25
CHASSIS SPECS
FrameTubular steel Trellis frame
Front SuspensionMarzocchi 50mm fully adjustable USD forks,
Rear SuspensionProgressive linkage with fully adjustable Sachs mono-shock. Aluminium single-sided swing arm,
BrakesFront Brakes: 2 x 320 mm semi-floating discs, radially mounted Monobloc Brembo calipers, 4-piston with ABS / / Rear Brakes : Single 265 mm disc, 2-piston floating caliper with ABS
Traction Management—
Exhaust SystemLightweight 2-1-2 system with catalytic converter and two lambda probes. Twin aluminium mufflers
DIMENSION SPECS
Overall Length2235 mm / 87.9 in
Seat Height770 mm / 30.3 in
Overall Height1192 mm / 46.9 in
Overall Width860 mm / 33.8 in
Overall WeightDry Weight - 210 Kg / 463 lbs / Wet Weight - 239 kg / 527 lbs
Wheelbase1590 mm / 62.6 in
Inner Leg Curve—
WHEEL SPECS
Wheels / RimsFront Wheel : / Rear Wheel: /
Front Tyre120/70 ZR 17
Rear Tyre240/45 ZR17
Front Wheel Travel120 mm / 4.72 in
Rear Wheel Travel120 mm / 4.72 in
Rake28°
Steering Angle70°
FUEL SYSTEM
Fuel Capacity17 Litres / 5.3 US gal
Fuel Reserve—
Fuel Consumption—
CAPACITIES
Engine oil—
Brake fluid—
Top Speed169 mph (272 km/h)

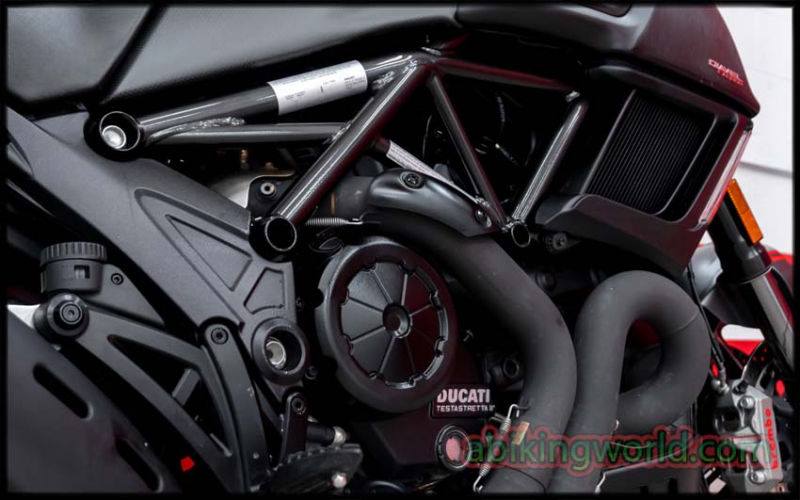

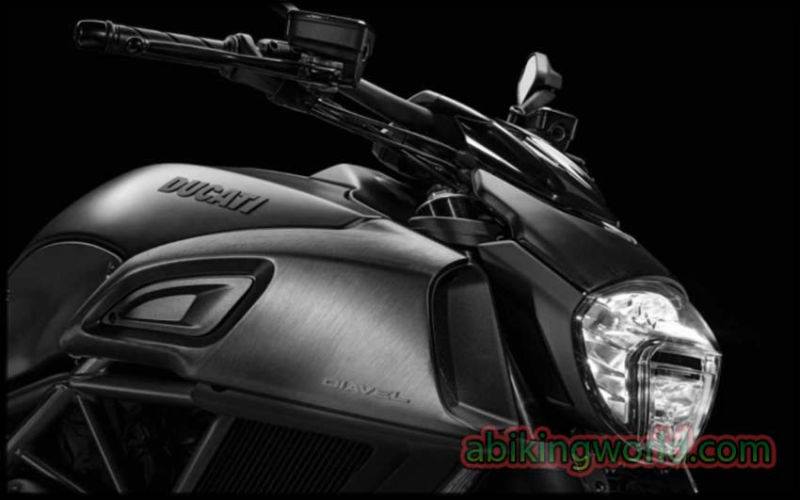

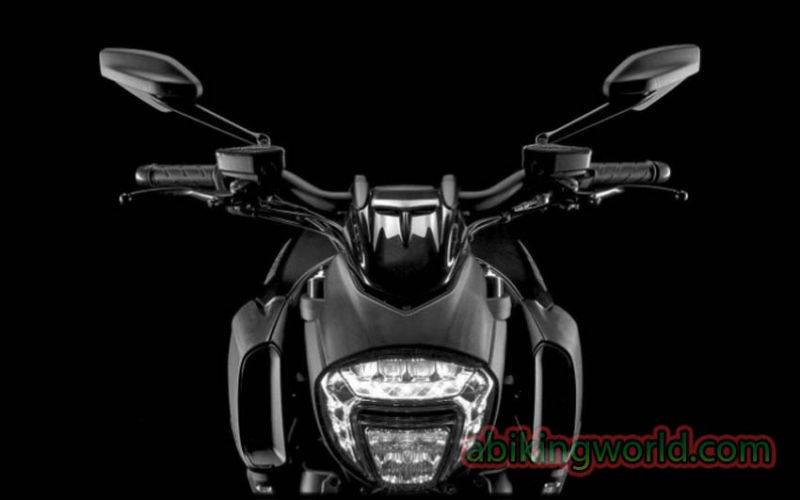

Photo gallery
Ducati Diavel 2017 diavel 2017 Ducati Diavel 2017 Ducati Diavel 2017 Ducati Diavel 2017 Ducati Diavel 2017 Ducati Diavel 2017 DUCATI DIAVEL 2017
Ducati file

The bold lines and innovative shapes of the Diavel Dark merge to create a superb, unmistakable design, capable of turning every head. The unique character of the powerful 162 hp* Testastretta 11° Dual Spark engine, ensuring muscular torque, combines with the athletic ease of a chassis built to provide riding pleasure beyond all expectations. The Diavel makes a bold statement and strengthens Ducati’s Performance Redefined mantra by using latest technologies to produce super-smooth performance with enhanced comfort and usability. Custom shop beauty, state-of-the-art technology, innovative design and extraordinary riding pleasure are masterfully blended into the Diavel, a motorcycle that has firmly set a benchmark in the sport cruiser segment, just reward for the innovative designers and engineers that created it. Built to have a commanding presence, though lightweight and agile like all Ducatis, the Diavel takes the man-motorcycle relationship to another level in absolute comfort. For connoisseurs of technology, the Testastretta 11° Dual Spark engine combines with ABS, Ducati Traction Control and Ducati Riding Modes to deliver a confidence-inspiring superiority, while the bike’s styling, 162 hp and 205 kg* (452 lb) of pure Ducati drives a comfortable sport lifestyle previously only dreamt of. Merging the worlds of power and style is achieved with convincing precision. A specially engineered 240 mm section rear tyre combined with Ducati chassis technology serves up mind-blowing handling and lean angles which defy the laws of physics, whether carving through curves on your favourite road or simply cruising the boulevards. With its laid-back street ergonomics, blistering performance and commanding style, the Diavel rolls out dressed in stylish Dark Stealth livery, a black trellis frame and black wheels. The Diavel Carbon livery elegantly balances with the visible carbon, the red stripes and the Dark Chrome paintwork on the frame. The exclusive forged wheels with exposed machined finish, enhance the muscular design of the bike.
