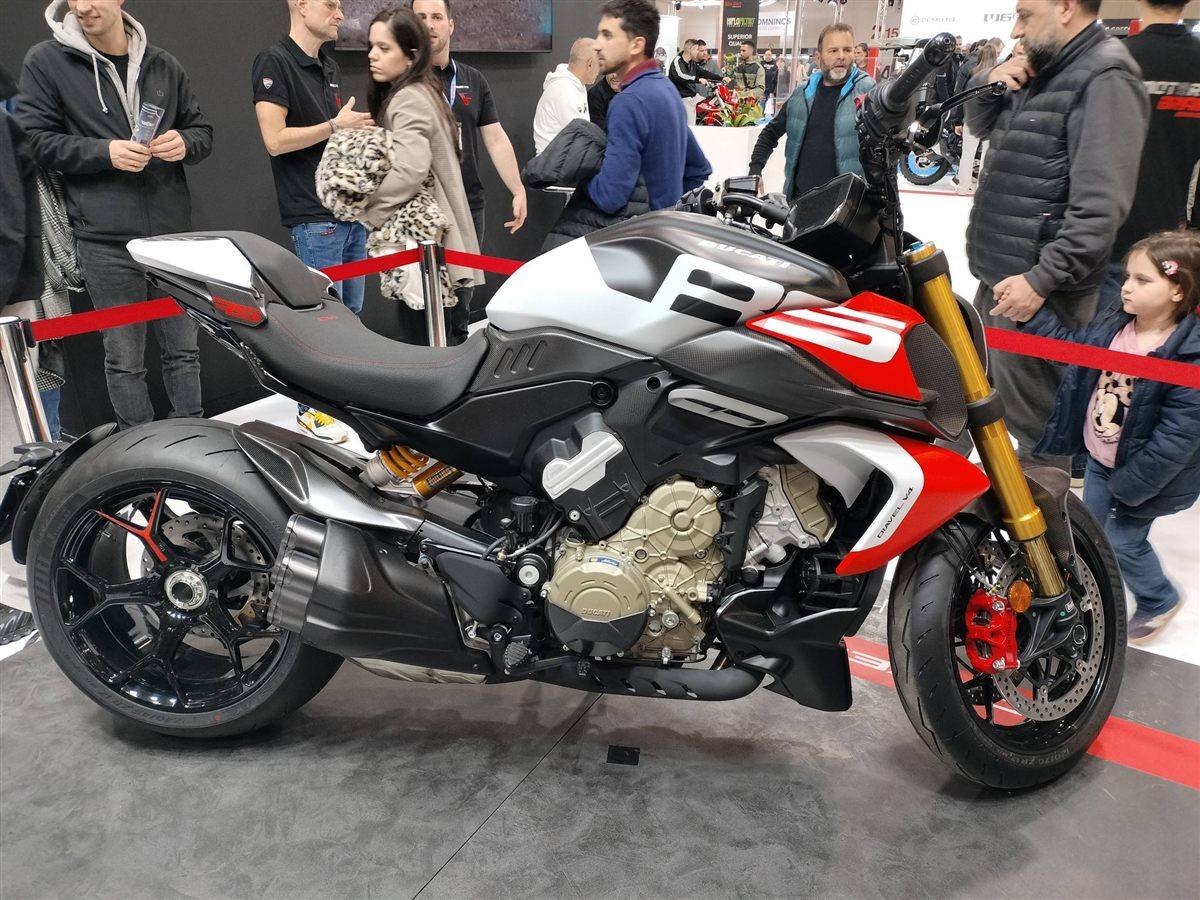

| MODEL | DUCATI DIAVEL V4 2023 |
| Year | 2023 |
| Engine Type | Four stroke, 90° V4 Granturismo, counter-rotating crankshaft, 4 valves per cylinder, Twin Pulse firing order |
| Displacement / Capacity | 1158 cc / 71 cu in |
| Bore X Stroke | 83 x 53.5 mm |
| Compression Ratio | 14.0:1 |
| Cooling System | Liquid cooled |
| Max Power | 125 kW / 168 hp @ 10750 rpm |
| Max Torque | 126 Nm / 93 lb-ft @ 7500 rpm |
| Ignition | — |
| Induction | Electronic fuel injection, 46 mm elliptical throttle bodies with ride-by-wire |
| Start System | Electric |
| TRANSMISSION SPECS | |
| Lubrication | — |
| Gear Box | 6-speed with Ducati Quick Shift up/down |
| Clutch | Hydraulic slipper and self-servo wet multiplate clutch |
| Final Drive | Chain, 16T front / 43T rear sprocket |
| CHASSIS SPECS | |
| Frame | Aluminium monocoque |
| Front Suspension | 50 mm fully adjustable USD fork, 120 mm / 4.7 in travel |
| Rear Suspension | Fully adjustable monoshock, aluminium single-sided swingarm, 147 mm / 5.8 in travel |
| Front Brakes | 2 x 330 mm semi-floating discs, radial Brembo Stylema 4-piston monobloc calipers, cornering ABS |
| Rear Brakes | Single 265 mm disc, Brembo 2-piston floating caliper |
| DIMENSION SPECS | |
| Overall Length | — |
| Overall Width | — |
| Overall Height | — |
| Seat Height | 790 mm / 31.1 in |
| Wheelbase | 1593 mm / 62.7 in |
| Ground Clearance | — |
| Dry Weight | 211 kg / 465 lb |
| Wet Weight | 236 kg / 520 lb |
| WHEEL SPECS | |
| Front Tyre | 120/70 ZR17 Pirelli Diablo Rosso III |
| Rear Tyre | 240/45 ZR17 Pirelli Diablo Rosso III |
| FUEL SYSTEM | |
| Fuel Capacity | 20 Litres / 5.3 US gal |
| Fuel Consumption | — |
| Top Speed | — |
The 2023 Diavel V4 replaces the twin with the 1158 cc Granturismo V4, which can shut down the rear bank at idle. It uses an aluminium monocoque frame and is roughly 13 kg lighter than the 1260 S. Four exhaust outlets, full LED lighting, cornering ABS, four riding modes and cruise control are standard, and it is offered in Ducati Red or Thrilling Black.
