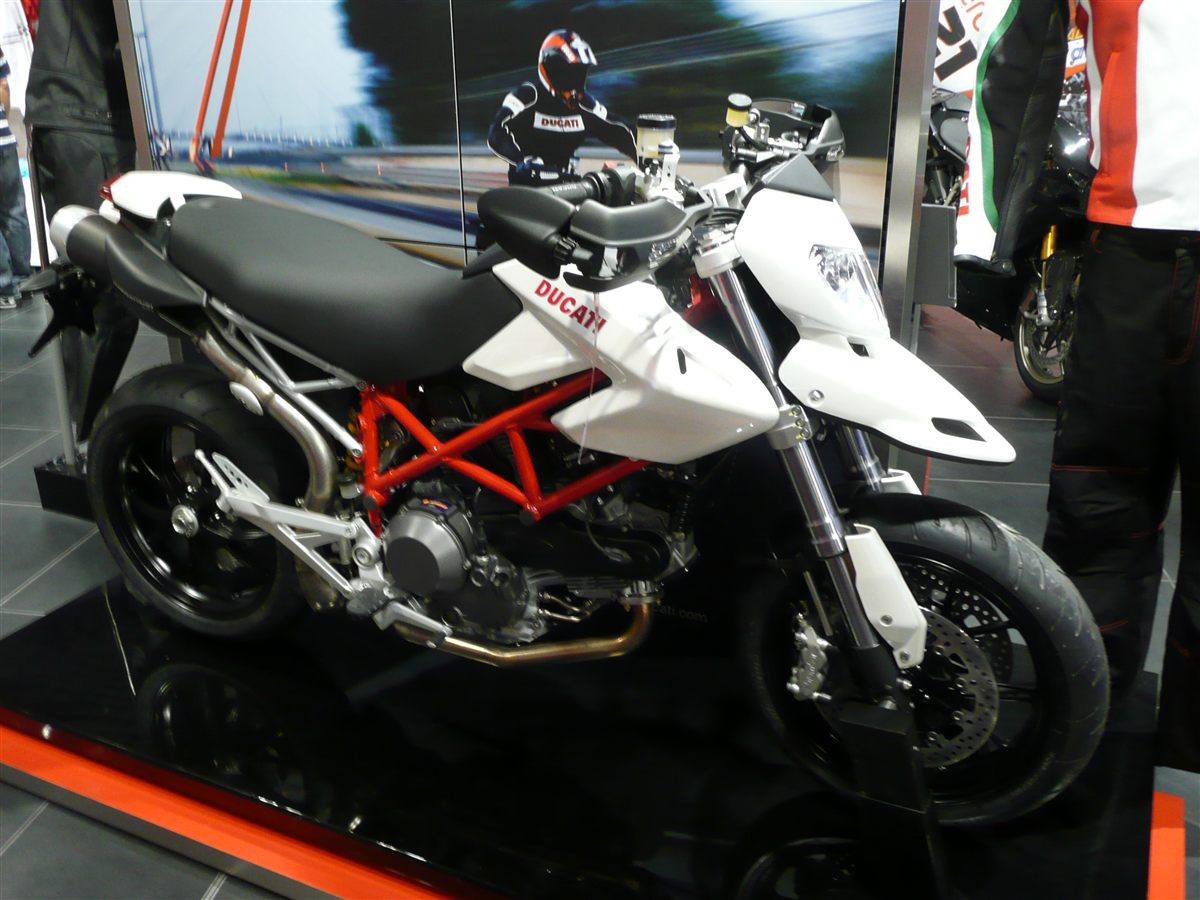

| MODEL | DUCATI HYPERMOTARD 1100 2009 |
| Year | 2009 |
| Engine Type | Four-stroke, 90° L-twin, SOHC, desmodromic, 2 valves per cylinder |
| Displacement / Capacity | 1078 cc / 65.8 cu in |
| Bore X Stroke | 98 x 71.5 mm |
| Compression Ratio | 10.0:1 |
| Cooling System | Air cooled |
| Max Power | 69.3 kW / 90 hp @ 7750 rpm |
| Max Torque | 102.9 Nm / 76 lb-ft @ 4750 rpm |
| Ignition | Marelli electronic |
| Induction | Fuel injection, 45 mm throttle body |
| Start System | Electric |
| TRANSMISSION SPECS | |
| Lubrication | Wet sump |
| Gear Box | 6-speed |
| Clutch | Dry multiplate, hydraulic control |
| Final Drive | Chain, 15/42 |
| CHASSIS SPECS | |
| Frame | Tubular steel trellis |
| Front Suspension | 50 mm Marzocchi fork, 165 mm / 6.5 in travel |
| Rear Suspension | Fully adjustable Sachs shock, single-sided swingarm, 141 mm / 5.6 in travel |
| Front Brakes | 2 x 305 mm semi-floating discs, radial Brembo Monobloc 4-piston calipers |
| Rear Brakes | 245 mm disc, 2-piston caliper |
| DIMENSION SPECS | |
| Overall Length | — |
| Overall Width | — |
| Overall Height | — |
| Seat Height | 845 mm / 33.3 in |
| Wheelbase | 1455 mm / 57.3 in |
| Ground Clearance | — |
| Dry Weight | 179 kg / 395 lb |
| Wet Weight | — |
| WHEEL SPECS | |
| Front Tyre | 120/70 ZR17 |
| Rear Tyre | 180/55 ZR17 |
| FUEL SYSTEM | |
| Fuel Capacity | 12.4 Litres / 3.3 US gal |
| Fuel Consumption | — |
| Top Speed | — |
The 2009 Hypermotard 1100 remained the standard version of Ducati's air-cooled supermoto, with the Dual Spark 1078 cc twin, dry clutch and 45 mm throttle bodies. Equipment includes wide tapered handlebars, removable passenger pegs, a GP-styled digital display and an LED tail light integrated into the tail. Ducati also claimed lower scheduled-maintenance cost on this engine.
