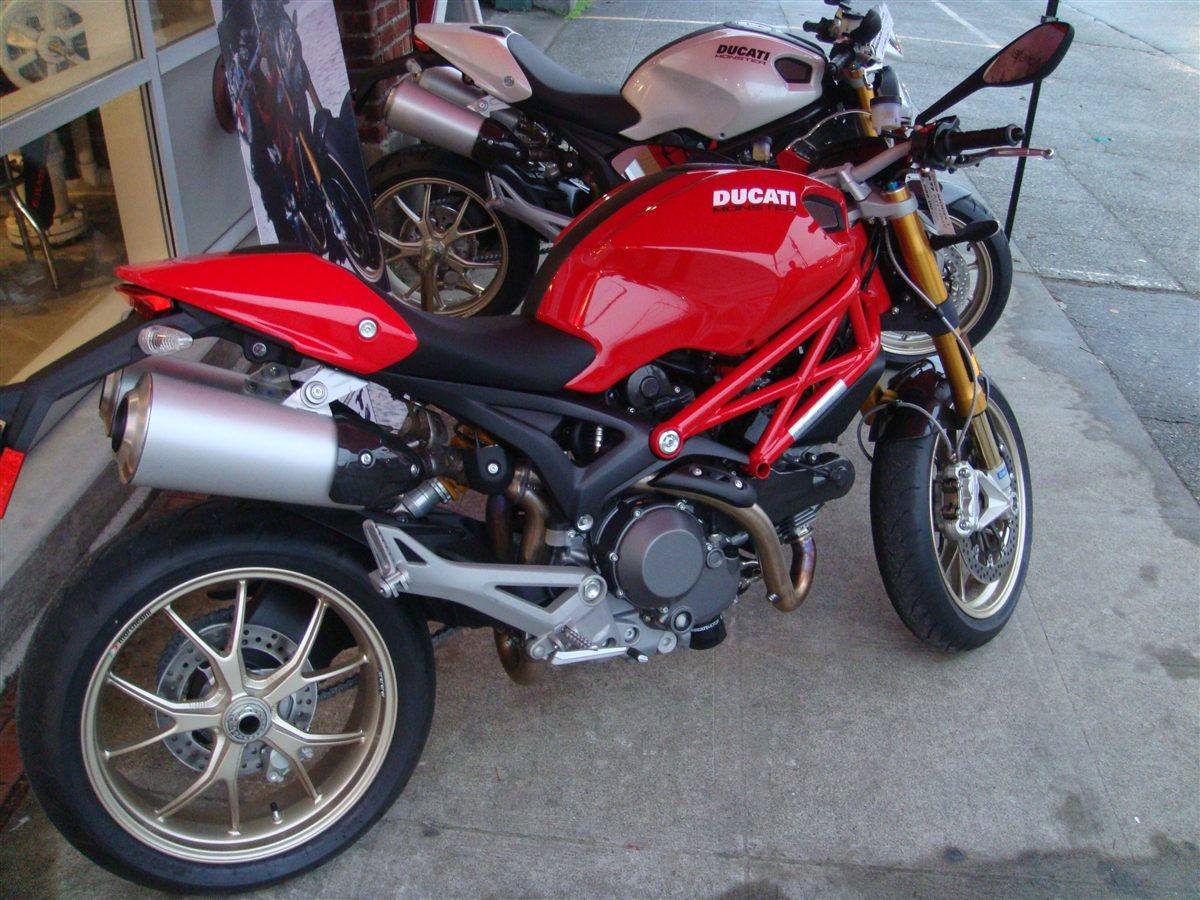

| MODEL | DUCATI MONSTER 1100S 2009 |
| Year | 2009 |
| Engine Type | Four stroke, 90° L twin cylinder, SOHC, desmodromic, 2 valves per cylinder |
| Displacement / Capacity | 1078 cc / 65.8 cu in |
| Bore X Stroke | 98 x 71.5 mm |
| Compression Ratio | 11.3:1 |
| Cooling System | Air cooled |
| Max Power | 69.8 kW / 95 hp @ 7500 rpm |
| Max Torque | 102.9 Nm / 10.5 kgf-m / 76 lb-ft @ 6000 rpm |
| Ignition | Marelli electronic |
| Induction | Siemens electronic fuel injection, 45 mm throttle bodies |
| Start System | Electric |
| TRANSMISSION SPECS | |
| Lubrication | Wet sump |
| Gear Box | 6 Speed |
| Clutch | Dry multiplate with hydraulic control |
| Final Drive | Chain; front sprocket 15; rear sprocket 39 |
| CHASSIS SPECS | |
| Frame | Tubular steel trellis |
| Front Suspension | Öhlins 43 mm fully adjustable upside-down fork with TiN coating; 130 mm / 5.1 in travel |
| Rear Suspension | Progressive, Öhlins monoshock adjustable for preload and rebound; single-sided swingarm; 148 mm / 5.8 in travel |
| Front Brakes | 2 x 320 mm discs, 4 piston radial calipers |
| Rear Brakes | Single 245 mm disc, 2 piston caliper |
| DIMENSION SPECS | |
| Overall Length | 2095 mm / 82.5 in |
| Overall Width | 784 mm / 30.9 in |
| Overall Height | 1099 mm / 43.3 in |
| Seat Height | 810 mm / 31.9 in |
| Wheelbase | 1450 mm / 57.1 in |
| Ground Clearance | — |
| Dry Weight | 168 kg / 370 lbs |
| Wet Weight | — |
| WHEEL SPECS | |
| Front Tyre | 120/70 ZR17 |
| Rear Tyre | 180/55 ZR17 |
| FUEL SYSTEM | |
| Fuel Capacity | 15 Litres / 4.0 US gal |
| Fuel Consumption | — |
| Top Speed | — |
The 1100S adds fully adjustable titanium-nitride coated Öhlins forks and an Öhlins rear shock to the standard 1100. Carbon cam-belt covers, silencer guards, front mudguard and aluminium disc carriers save about 1 kg, and gold 5-spoke wheels give it a racing look.
